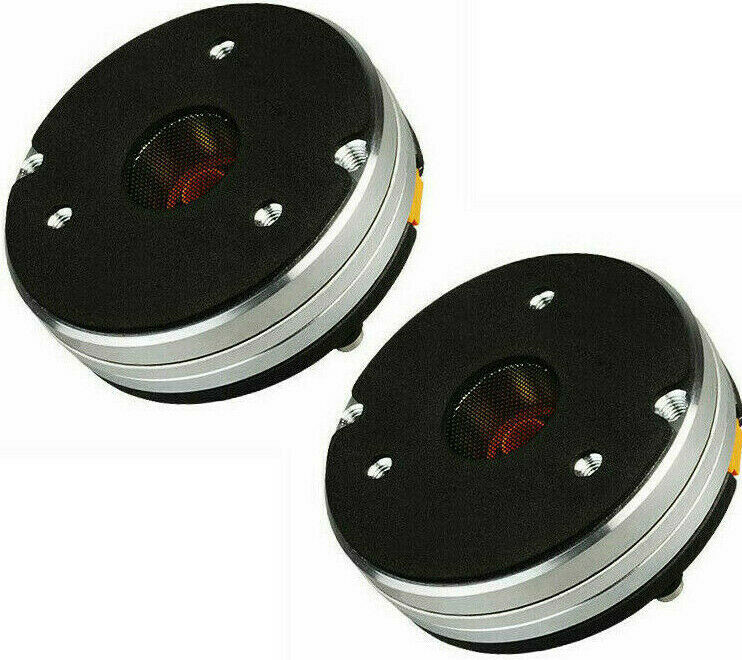

2x FAITAL PRO HF108R 1" Neodymium PRO Compression Horn Driver 120W 16-Ohm 109dB

(No reviews yet) Write a Review
SKU:
2x Faital Pro HF108R 16-Ohms T.C.
UPC:
848864063003
Condition:
New
Order before 3PM (EST) Mon-Fri for Same Day Shipping
$369.90

Product Description

FAITAL PRO HF108R 1" Neodymium PRO Compression Horn Driver 120 Watts 16-Ohm

Technical Parameters

Nominal Impedance
  • 16 Ohm
Minimum Impedance
  • 13.2 Ohm
AES Power Handling (1)
  • 60 W
Maximum Power Handling (2)
  • 120 W
Minimum Crossover Frequency (3)
  • 1.3 kHz
Sensitivity (1W/1m) (4)
  • 109 dB
Frequency Range
  • 1÷20 kHz
Voice Coil Diameter
  • 44 mm (1.73 in)
Winding Material
  • Al
Former Material
  • Kapton
Diaphragm Material
  • Ketone Polymer
Diaphragm Shape
  • Dome
Winding Depth
  • 2.9 mm (0.11 in)
Magnetic Gap Depth
  • 2.85 mm (0.11 in)
Flux Density
  • 2.1 T
Magnet
  • Neodymium Ring
Re
  • 10.5 Ohm
Phase Plug Design
  • Annular
Exit Angle (5)
  • 31° Conical
NET Air Volume filled by HF Driver
  • 0.195 dm^3 (0.007 ft^3)



Nominal Specifications

Throat Diameter
  • 25.4 mm (1 in)
Overall Diameter
  • 87 mm (3.43 in)
180° Mounting Holes Diameter (2xM5)
  • 76 mm (2.99 in)
Depth
  • 41 mm (1.61 in)
Net Weight
  • 800 g (1.8 lb)
Shipping Box
(Single carton box)
  • 147 x 130 x 82 mm
    (5.8 x 5.1 x 3.2 in)
Shipping Weight
  • 1.2 kg (2.6 lb)



Part Number (P/N)

Faston Terminals - 8 Ohm Version
  • 00444210
