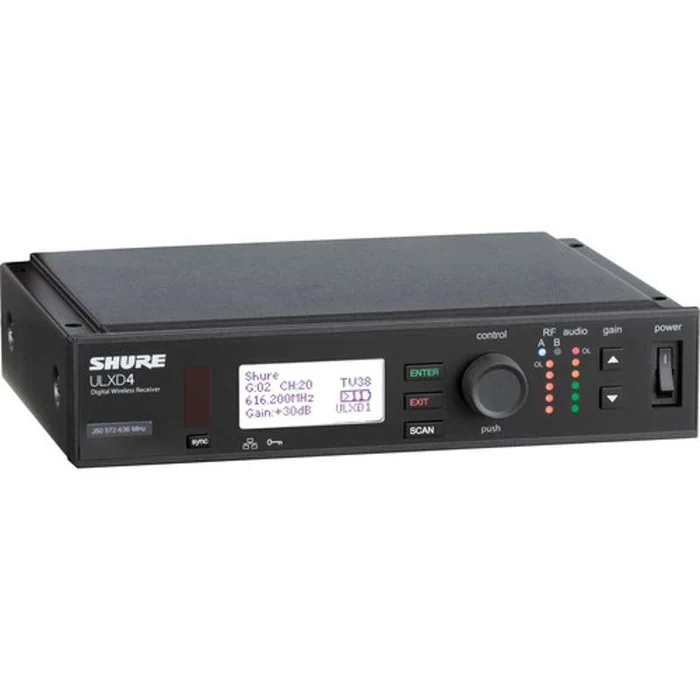

Shure ULXD4=-G50 Digital Wireless Receiver / Single Channel (G50: 470 - 534 MHz)

Shure ULXD4=-G50 Digital Wireless Receiver / Single Channel (G50: 470 - 534 MHz)

Shure

Write a Review
SKU:
Shure ULXD4=-G50 T.C.
Condition:
New
UPC:
042406214148
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $1,127.00
Make an Offer
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

Shure ULXD4=-G50 Digital Wireless Receiver / Single Channel ( G50: 470 - 534 MHz )

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

Details

  • Predictive switching diversity

  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters

  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync

  • Interference detection and alerts provided on both the receiver and Wireless Workbench® 6

  • Front panel gain adjustment buttons provide up to 60 dB additional gain

  • AES 256-bit encryption-enabled for applications where secure transmission is needed

  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration, and AMX/Crestron control

  • Support for frequency coordination with the Axient® Spectrum Manager

  • Rugged metal chassis

  • Intuitive front panel LCD menu and controls with lockout feature

  • Upgraded LCD with adjustable contrast and brightness

  • Audio and RF LED meters with peak indicator

  • Remoteable ½ wave antennas

  • Furnished rack hardware

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Specifications

Wireless Technology
  • Digital UHF
Number of RF Channel Frequencies
  • 2560
Diversity
  • Antenna Diversity
RF Frequency Band
  • G50: 470 to 534 MHz
RF Bandwidth
  • 64 MHz
Frequency Step Size
  • 25 kHz
RF Channel Scanning
  • Auto-Scan
Max Operating Range
  • 328.1' / 100 m
Max Transmitters per Band
  • 60
Timecode Support
  • No
Mobile App Compatible
  • Yes: Android & iOS
  • App Name: ShurePlus Channels
  • Functionality: Remote Control
    *As of July, 2023: Check with manufacturer for the most up-to-date compatibility
OS Compatibility
  • Windows 10 or Later
  • macOS 10.14 or Later
    *As of July, 2023: Check with manufacturer for the most up-to-date compatibility
Latency
  • < 2.9 ms
Modulation
  • Proprietary
Receiver
Receiver Type
  • Tabletop
Mounting Options
  • Rackmount, Tabletop (with Included Hardware)
Rackmount Size
  • 1 RU (1/2 Rack)
Antenna
  • 2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage
  • 12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels
  • 1
Audio I/O
  • 1 x XLR 3-Pin Male Balanced Output
    1 x 1/4" TRS Female Balanced Output
Gain Range
  • -18 to +42 dB (1 dB Steps)
Pad
  • 30 dB
Audio Output Level
  • XLR Output:
    +18 dBV (Line Level)
  • XLR Output:
    -12 dBV (Mic Level)
    1/4" Output:
    +12 dBV (Consumer Level, Instrument Level)
Phantom Power Protection
  • On 1/4", XLR Outputs
Frequency Response
  • 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O
  • 1 x RJ45 (10/100 Mb/s)
Network Protocols
  • DHCP, Manual IP
Standalone Audio Interface Capable
  • No
Impedance
  • XLR Output:
    100 Ohms (Balanced)
Approximate RF Sensitivity
  • -98 dBm
Adjacent Channel Isolation
  • >70 dB
Spurious
  • Rejection: >80 dB
Power Requirements
  • AC/DC Power Adapter
AC/DC Power Adapter
  • 15 VDC at 600 mA (Included)
DC Input Power
  • 15 VDC at 600mA
AC Input Power
  • 100 to 240 VAC, 50 / 60 Hz at 250 mA
Display & Indicators
  • 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
  • 2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing
  • Steel
Operating Temperature
  • 0 to 122°F / -17 to 50°C
Storage Temperature
  • -20 to 165°F / -28 to 73°C
Dimensions
  • 6.7 x 1.7 x 7.8" / 171 x 44 x 197 mm
Weight
  • 2 lb / 0.9 kg
Packaging Info
Package Weight
  • 6.5 lb
Box Dimensions (LxWxH)
  • 18.347 x 14.567 x 3.622"
