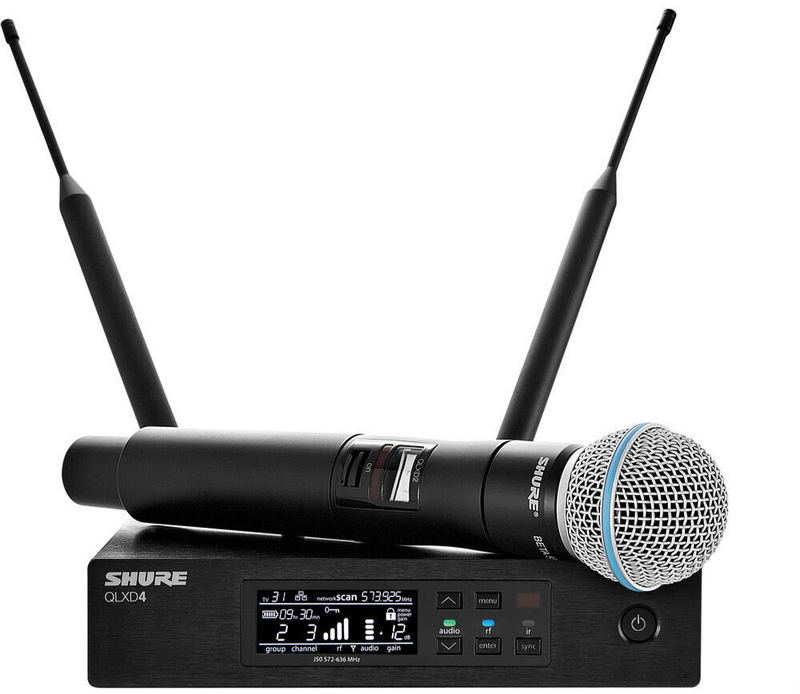

Shure QLXD24/B58 G50 System w/ BETA 58A Handheld Wireless Microphone Transmitter

Product Description

Shure QLXD24/B58 G50 System with BETA 58A Handheld Wireless Microphone Transmitter (G50: 470-534 MHz)

Featuring a BETA 58A® handheld wireless microphone transmitter, QLXD24/B58 combines professional features with simplified setup and operation.

QLX-D® delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

In The Box

2 AA batteries
2 1/2 wave antennas
2 2 BNC cables
1 zipper bag
2 BNC bulkhead Adapters
1 rackmount kit
1 user guide
1 power supply

Specifications

System

Wireless Technology	Analog UHF
Number of RF Channel Frequencies	2560
Included Transmitters	1 x Handheld
Diversity	Antenna Diversity
RF Frequency Band	G50: 470 to 534 MHz
RF Bandwidth	64 MHz
Frequency Step Size	25 kHz
Max Operating Range	330' / 100.6 m
Max Transmitters per Band	60
Sample Rate/Resolution	48 kHz / 24-Bit
Latency	< 2.9 ms
Dynamic Range	120 dB
Encryption	AES 256
Modulation	Proprietary

Receiver

Receiver Type	Tabletop
Mounting Options	Rackmount (with Included Hardware)
Rackmount Size	1 RU (1/2 Rack)
Antenna	2 x 1/2 Wave External, Detachable (Rear-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TRS Female Balanced Output
Gain Range	-18 to +42 dB (1 dB Steps)
Pad	30 dB
Audio Output Level	XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV (Instrument Level)
Phantom Power Protection	On 1/4", XLR Output
Network I/O	1 x RJ45 (10/100 Mb/s)
Network Protocols	DHCP, Manual IP
Impedance	XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 1/4" Output: 50 Ohms (Unbalanced)
Adjacent Channel Isolation	>70 dB
Spurious	Rejection: >80 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators	1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status) 1 x LED (Sync) 1 x LED (Peak)
Housing	Metal
Operating Temperature	0 to 122°F / -18 to 50°C
Dimensions	7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
Weight	1.7 lb / 777 g (without Antenna)

Transmitter

Transmitter Type	Handheld
RF Output Power	1 / 10 mW
Audio I/O	None
Gain Range	0 to 21 dB (3 dB Steps)
Frequency Response	30 Hz to 20 kHz
Sync Method	IR
Antenna	1 x 1/4 Wave
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life	9 Hours (Alkaline)
Display & Indicators	1 x Backlit LCD (Channel, Group, RF Output Power)
Housing	Aluminum
Dimensions	2 x 10.1" / 51 x 256 mm
Weight	12.2 oz / 347 g (without Batteries)

Microphone

Microphone Type	Handheld Capsule
Sound Field	Mono
Capsule	Dynamic
Polar Pattern	Supercardioid
Frequency Range	50 Hz to 16 kHz
Sensitivity	-51.5 dBV/Pa

Packaging Info

Package Weight	9.25 lb
Box Dimensions (LxWxH)	19.4 x 17.6 x 4"
