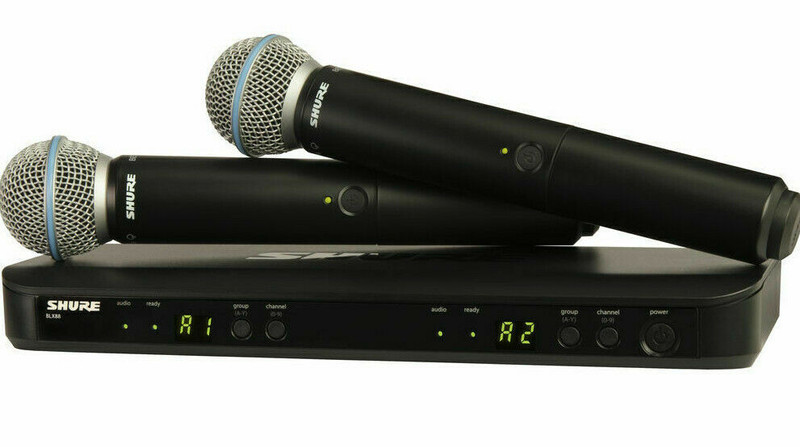

Shure BLX288/B58 H9 Wireless Handheld Microphone w Beta 58A Capsules (H9 512-542 MHz)

Shure BLX288/B58 H9 Dual-Channel Wireless Handheld Microphone System with Beta 58A Capsules (H9: 512 to 542 MHz)

The Beta 58A dynamic vocal microphone is precision-engineered for live performance and project studio recording. A tailored frequency response accentuates vocals, and the supercardioid pattern isolates from other sound sources. It combines simple setup and an intuitive interface for performance you can trust in.

Specifications

System Wireless Transmission

• Analog UHF

Number of RF Channels

• 123

Included Transmitters

• 2 x Handheld

Diversity

• Antenna Diversity

RF Frequency Band

• H9:
  512 to 542 MHz

RF Bandwidth

• 30 MHz

Max Operating Range

• 300' / 91.4 m (Line of Sight)

Max Systems per Setup

• 12

Dynamic Range

• 100 dBA

ReceiverForm Factor

• Tabletop

Antenna

• 2 x Internal

Number of Audio Channels

• 2

Audio I/O

• 2 x XLR 3-Pin Male Balanced Output
  2 x 1/4" TRS Female Unbalanced Output

Audio Output Level

• XLR Outputs:
  -27 dBV (Mic Level)
  1/4" Outputs:
  -13 dBV (Instrument Level)

Frequency Response

• 50 Hz to 15 kHz (Dependent on Mic)

Impedance

• XLR Outputs:
  200 Ohms
  1/4" Outputs:
  50 Ohms

Power Requirements

• AC/DC Power Adapter

AC/DC Power Adapter

• 12 to 15 VDC at 160 mA, Center-Positive (Included)

Display & Indicators

• 2 x Multi-Segment LED (Channel, Group)
  4 x LED (AF Level, Sync)

Housing

• ABS

Operating Temperature

• 0 to 135°F / -17 to 57°C

Dimensions

• 12.1 x 1.6 x 4" / 308 x 40 x 101 mm

Weight

• 15.1 oz / 429 g

Transmitter 1Form Factor

• Handheld

RF Output Power

• 10 mW

Audio I/O

• None

Muting

• Off/On Switch

Gain Range

• -20 to -10 dB

Sync Method

• Manual

Antenna

• 1 x Internal (Handheld)

Power Requirements

• Battery

Battery Type

• 2 x AA (Included)

Approx. Battery Life

• 14 Hours (Alkaline)

Display & Indicators

• 1 x Multi-Segment LED (Channel, Group)
  1 x LED (Battery Status, Power)

Housing

• ABS

Dimensions

• 2.1 x 8.8" / 53.3 x 223.5 mm

Weight

• 7.7 oz / 218 g (without Batteries)

MicrophoneForm Factor

• Handheld Capsule

Sound Field

• Mono

Capsule

• Dynamic

Polar Pattern

• Supercardioid

Frequency Range

• 50 Hz to 16 kHz

Sensitivity

• -51.5 dBV/Pa at 1 kHz

Packaging Package Weight

• 4.955 lb

Box Dimensions (LxWxH)

• 19.2 x 16.2 x 3.4"

UPC

• 042406613354
