Shure BLX1288/CVL Dual-Channel Handheld & Lavalier Combo Wireless Mic System (H9 512 - 542 MHz)
-
The BLX1288/CVL Dual Channel Combo Wireless System is part of the Dual Channel Combo wireless systems family.
-
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

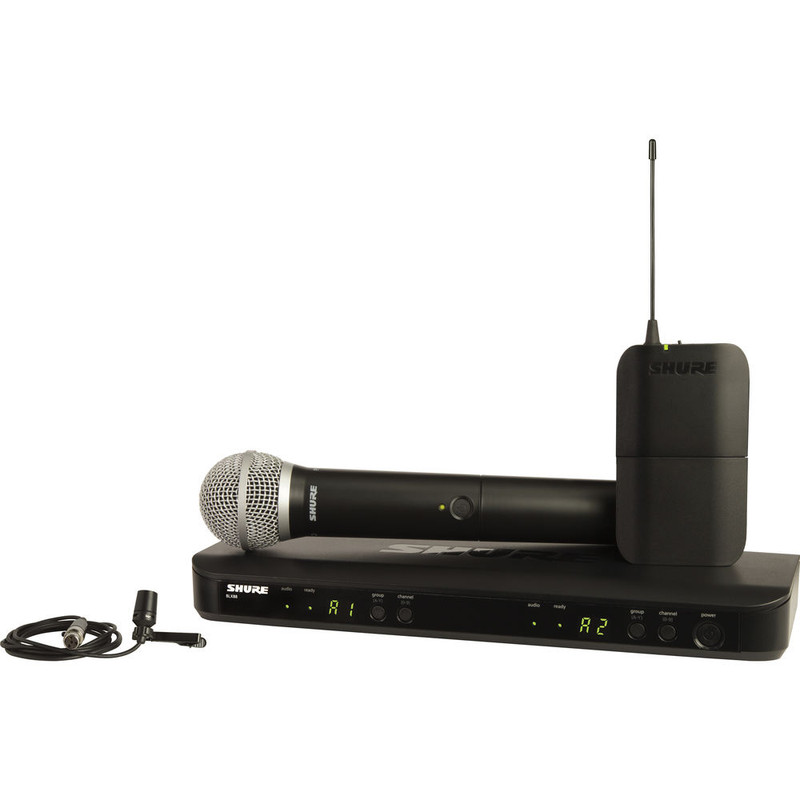

The BLX1288/CVL Dual-Channel Combo Wireless System from Shure includes a BLX88 dual-channel wireless receiver, a BLX1 bodypack transmitter, a CVL Centraverse lavalier mic, a BLX2 handheld transmitter with a PG58 microphone cartridge, and 4 AA batteries. The system is set to Shure's H9 frequency band and operates between 512 - 542 MHz.
Both the BXL1 bodypack transmitter and the BLX2 handheld transmitter have a 300' line of sight operation range with the BLX88 receiver. They are each powered by two included AA batteries that can provide up to 14 hours of operation. The BLX88 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup.
-
CVL Centraverse Lavalier Condenser Microphone
The CVL Centraverse Lavalier Condenser Microphone from Shure is a miniature lavalier condenser microphone that is optimized for speech and vocal performance. A tie clip and windscreen are included.-
Designed for low visibility
-
Permanently charged electret condenser element for vocal reproduction
-
TA4F (TQG) connector integrates with Shure wireless bodypack systems
-
Tailored frequency response optimized for public speaking and presentation
-
-
BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
The BLX2 Handheld Transmitter with PG58 Microphone from Shure is set to Shure's H9 frequency band between 512 to 542 MHz MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included.
-
BLX88 Dual-Channel Wireless Receiver (H9: 512 - 542 MHz)
The BLX88 Dual-Channel Wireless Receiver from Shure is a dual-channel receiver set to Shure's H9 frequency band and operates between 512 to 542 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has two XLR outputs in additional to two instrument-level 1/4" outputs. The BLX88 can be used with up to 11 other compatible systems simultaneously per frequency band.
-
BLX1 Bodypack Transmitter (H9: 512 - 542 MHz
The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the H9 frequency band and operates between 512 and 542 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours.
Specifications
-
Type Electret condenser Frequency Response 50 Hz to 20 kHz Polar Pattern Cardioid Output Impedance 600 ? @ 1 kHz, typical Audio Output Level -43.5 dBV/Pa Signal to Noise Ratio 72 dB @ 1 kHz Maximum SPL 139 dB, @ 1 kHz (1,000 ? load) Dynamic Range 117 dB, @ 1 kHz (1,000 ? load) Output Noise 22 dB, typical, A-weighted Power Requirements +5 V DC (nominal), 10 V maximum (DC bias) Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 Cable 50" (1.3 m) Connector TA4F
Weight 0.88 oz (25 g) -
Packaging Info Box Dimensions (LxWxH) 7.7 x 5.0 x 3.1"
-
BLX2 Handheld Transmitter with PG58 Microphone (H9: 512 - 542 MHz)
Transmitter Audio Input Level 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV MaximumGain Adjustment Range 10 dB RF Output 10 mW, Typical (Varies by Region) Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline Housing Molded ABS Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm) Weight 7.7 oz (218 g) Microphone Type Dynamic (Moving Coil) Polar Pattern Cardioid Frequency Response 60 Hz to 15 kHz Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector Sensitivity -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz) Electromagnetic Hum Sensitivity 26 dB equivalent SPL in a 1 millioersted field (60 Hz) Temperature Range -20 to 153°F (-29 to 57°C) Relative Humidity 0 to 95% Packaging Info Box Dimensions (LxWxH) 11.1 x 5.3 x 3.0"
-
BLX88 Dual-Channel Wireless Receiver (H9: 512 - 542 MHz)
Output 2x XLR Output
2x 1/4" (6.35 mm) OutputOutput Impedance XLR: 200 ohms
1/4": 50 ohmsAudio Output Level XLR Connector: -20.5 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100 kOhm Load (Reference +/-33 kHz with 1 kHz Tone)RF Sensitivity -105 dBm for 12 dB SINAD, Typical Image Rejection >50 dB, Typical Housing Molded ABS Power Requirement 12 to 15 VDC @ 320 mA, Supplied by External Power Supply (Tip Positive) Dimensions (H x W x D) 1.5 x 15 x 4.5" (40 x 388 x 116 mm) Weight 15.1 oz (429 g) Packaging Info Box Dimensions (LxWxH) 19.1 x 16.2 x 3.6"
-
BLX1 Bodypack Transmitter (H9: 512 - 542 MHz)
Audio Input Gain: -16 dBV (Maximum), 10 dBV (Minimum) Gain Adjustment Range 26 dB Input Impedance 1 MOhm RF Output 10 mW, Typical Housing Molded ABS Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline Battery Life Up to 14 Hours Dimensions (H x W x D) 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) Weight 2.6 oz (75 g) Packaging Info Box Dimensions (LxWxH) 11.1 x 5.3 x 3.2"
