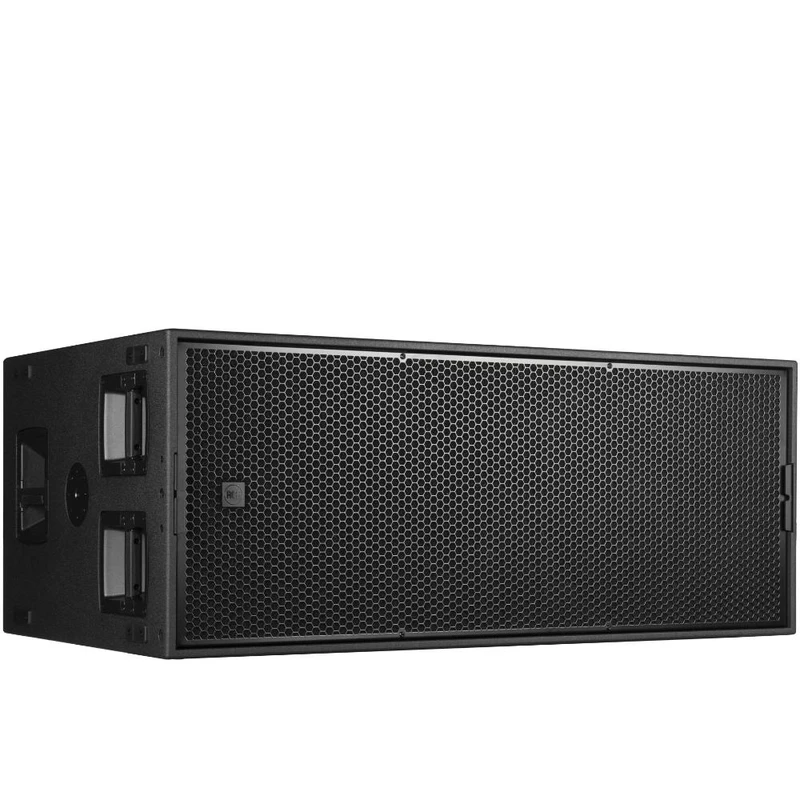

RCF SUB 9029-AS HIGH POWER 19-Inch Class-D Amplification 8000W ACTIVE SUBWOOFER
SUB 9029-AS is a high-performance dual 19" active subwoofer delivering up to 142 dB Max SPL, powered by a robust 8000W Class-D amplifier. Designed for rigorous touring, the SUB 9029-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet, the SUB 9029-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
Features
- 142 dB Max SPL
- 8000W Class-D Amplification
- RDTap Contactless Configuration
- I/O Panel Rain Cover Included
- RDNet Networked Control
- BMC, EQ, DLY, Cardioid
- ACE Crossover Presets for RCF Speakers
- 2 x 19" High-Excursion Precision Transducers
- Detachable Front Cart (sold separately)
- powerCON TRUE1 TOP AC Connector
Specification
| Category | Specification | Details |
|---|---|---|
| Acoustical | Frequency Response | 25 Hz – 200 Hz |
| Max SPL @ 1m | 142 dB | |
| Transducers | Woofer | 2 x 19" neo, 4.0" voice coil |
| Input/Output | Input Signal | Balanced / Unbalanced |
| Input Connectors | XLR, RDNet Ethercon | |
| Output Connectors | XLR, RDNet Ethercon | |
| Input Sensitivity | -2 dBu / +4 dBu | |
| Processor | Protections | Thermal |
| Limiter | Soft Limiter | |
| Controls | MUTE, VOL, PRESETS, RDTAP | |
| RDNet | Onboard | |
| Power | Total Power | 8000 W Peak |
| Cooling | Convection / Forced | |
| Power Connections | PowerCON TRUE1 TOP IN/OUT | |
| Compliance | Safety Agency | CE Compliant |
| Physical Specs | Cabinet / Case Material | Plywood |
| Hardware | 2 x M20 pole mount accessories | |
| Handles | 3 handles per side | |
| Pole Mount / Cap | M20 thread | |
| Grille | Steel with acoustic cloth | |
| Color | Black | |
| Dimensions & Weight | Height | 533 mm / 20.98 in |
| Width | 1310 mm / 51.57 in | |
| Depth | 785 mm / 30.91 in | |
| Weight | 93 kg / 205.03 lbs | |
| Shipping Info | Package Height | 570 mm / 22.44 in |
| Package Width | 830 mm / 32.68 in | |
| Package Depth | 1350 mm / 53.15 in | |
| Package Weight | 98 kg / 216.05 lbs |
UPC
- 8024530022839
