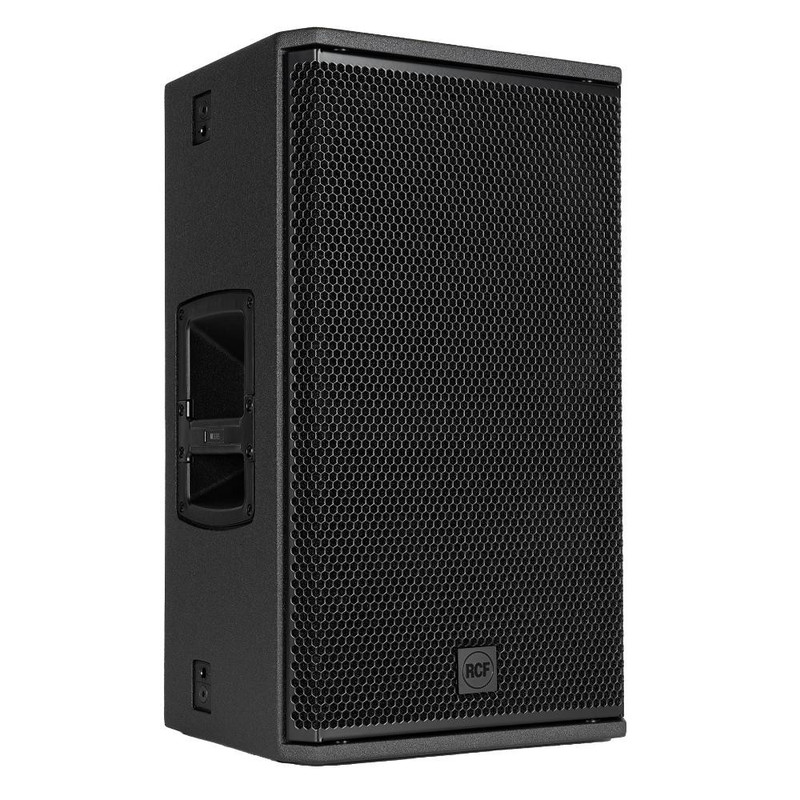

RCF NX 932-A Pro / Live Sound / DJ 2-Channel Active Speaker 2100 Watts With DSP
Features
-
Up to 132 dB Sound Pressure Level
-
2100W Class-D Bi-Amplification
-
45-20000 Hz linear frequency response
-
3" Titanium/Neodymium Compression Driver
-
12" Woofer
-
FiRPHASE zero degrees phase technology
-
Bass Motion Control woofer excursion management
-
Six M10 and four Quick Lock rigging points
NX 932-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 3" titanium/neodymium compression driver, 12" woofer - two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 132 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 932-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
Power that moves
The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet without moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section merging high-efficiency with minimum weight.
Legendary transducers
Potent woofer
The low-frequency transducer is a high-power 12" woofer with a 2.5’’ voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.
Superior compression drivers
The ND840 Compression Driver in pure Titanium with a 3-inch voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
Direct Drive Technology
The voice coil features a high-temperature Kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’s suspension has been designed following extensive research and development aimed at minimizing distortion and extending low-frequency range.
Bass Motion Control
When searching for extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. NX 9 Series with BMC can handle the lowest audible frequencies without affecting the woofer stability, providing extended linearity and better sound integrity. The BMC method works by creating a complete map of the dynamic behavior of the woofer to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the BMC algorithm breaks this rule. In combination with FiRPHASE technology, NX 9 has a new level of audio performance in this series of speakers.
New perspective on linearity
Zero degrees phase linearity for a rich, consistent sound. The advanced digital FiR technology delivers a transparent signal and perfect imaging to the listener. RCF FiRPHASE filters allow a coherent distribution of sound without phase distortions, ensuring minimum latencies within the system.
Tour-proven workhorse
NX 9 can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry with handles on both sides. The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points, Quick Lock pins, and special accessories. From the wood cabinet to the final texture and protective grille, NX 9 Series offers maximum strength for intensive use on the road and can be used for fixed installation.
Ready for heavy-duty applications
The highly innovative entertainment industry is always evolving by increasing demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment. The speaker features True Outdoor Protection (TOP) PowerCON TRUE1 power input connectors. These ruggedized sealed connectors feature IP protection and UV resistance approved according to UL50E.
Specifications
Acoustical specifications
-
Frequency Response: 45 Hz ÷ 20000 Hz
-
Max SPL @ 1m: 132 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 70°
Transducers
-
Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
-
Woofer: 12'', 2.5'' v.c
Input/Output section
-
Input signal: bal/unbal
-
Input connectors: Combo XLR/Jack
-
Output connectors: XLR
-
Input sensitivity: -2 dBu/+4 dBu
Processor section
-
Crossover Frequencies: 700Hz
-
Protections: Thermal, RMS
-
Limiter: Soft Limiter
-
Controls: Linear, Boost, Stage, Volume
Power section
-
Total Power: 2100 W Peak
-
High frequencies: 700 W Peak
-
Low frequencies: 1400 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance
- Safety agency: CE compliant
Physical specifications
-
Cabinet/Case Material: Plywood
-
Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear, 2 each side quick lock pin seat
-
Handles: 1 x Side
-
Pole mount/Cap: Yes
-
Grille: Steel
-
Color: Black
Size
-
Height: 620 mm / 24.41 inches
-
Width: 362 mm / 14.25 inches
-
Depth: 405 mm / 15.94 inches
-
Weight: 20.8 kg / 45.86 lbs
Shipping information
-
Package Height: 666 mm / 26.22 inches
-
Package Width: 461 mm / 18.15 inches
-
Package Depth: 416 mm / 16.38 inches
-
Package Weight: 22.8 kg / 50.27 lbs
