Package Includes:

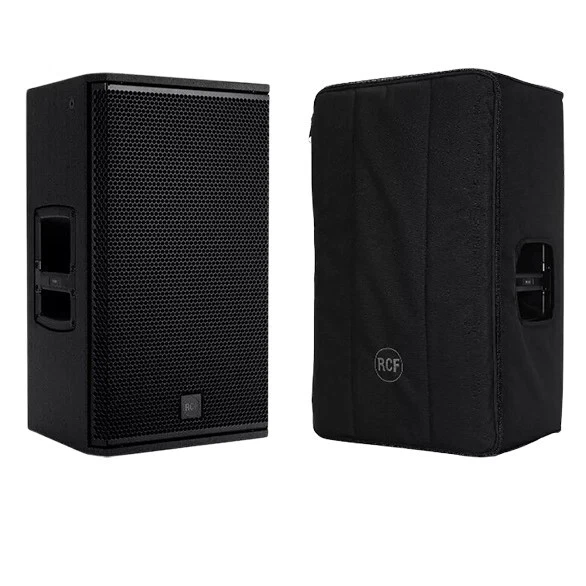

- RCF NX 912-A 12" Powered Speaker W/ 2100W ClassD Bi-Amplification & 1.75" Driver
- RCF NX 912-A Speaker Cover ( CVR NX912 )- Black, Water Resistant, Heavy Duty
NX 912-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 912-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
Features
- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 50-20000 Hz linear frequency response
- 1.75" Compression Driver
- 12" Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
Specifications
Acoustical Specifications :
- Frequency Response - 50 Hz ÷ 20000 Hz
- Max SPL @ 1m - 130 dB
- Horizontal coverage angle - 100°
- Vertical coverage angle - 60°
Transducers :
- Compression Driver - 1 x 1.0'', 1.75'' v.c
- Woofer - 1 x 12'', 2.5'' v.c
Input/Output section :
- Input signal - bal/unbal
- Input connectors - XLR, Jack
- Output connectors - XLR
- Input sensitivity - -2 dBu/+4 dBu
Processor Section:
- Crossover Frequencies - 1600 Hz
- Protections - Thermal, RMS
- Limiter - Soft Limiter
- Controls - Linear, Boost, Stage, Volume
Power Section:
- Total Power - 2100 W Peak
- High frequencies - 700 W Peak
- Low frequencies - 1400 W Peak
- Cooling - Convection
- Connections - VDE
Standard Compliance:
- Safety agency - CE compliant
Physical Specifications :
- Cabinet/Case Material - Plywood
- Hardware - 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
- Handles - 1 x Side
- Pole mount/Cap - 35 mm insert
- Grille - Steel
- Color - Black
Size / Weight :
- Height - 620 mm / 24.41 inches
- Width - 362 mm / 14.25 inches
- Depth - 405 mm / 15.94 inches
- Weight - 20.8 kg / 45.86 lbs
Shipping Information:
- Package Height - 666 mm / 26.22 inches
- Package Width - 461 mm / 18.15 inches
- Package Depth - 416 mm / 16.38 inches
- Package Weight - 22.8 kg / 50.27 lbs
UPC
- 8024530019044
