Package Includes:
-
RCF HD 35-A ACTIVE 15" 2-WAY High Power PA DJ SPEAKER 1400 Watts Powered Monitor
-
RCF CVR HD 15 Protection Cover For HD 15, HD 35, HDM 455-A, ART 415, ART 425-A Speakers

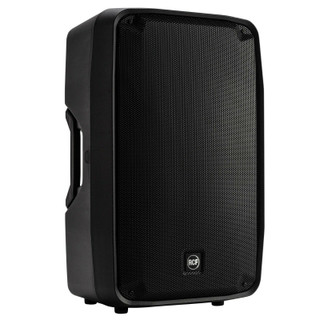

RCF HD 35-A ACTIVE TWO-WAY SPEAKER
The titanium dome, voice coil neodymium compression driver offers unique vocal clarity and sound projection on the The titanium dome, 3.0" voice coil neodymium compression driver offers unique vocal clarity and sound projection on the HD 35-A. The 15” woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, FiRPHASE, soft limiting, and speaker protection.
-
132 dB Max SPL
-
1400 Watts 2-way peak power
-
DSP Processing with FiRPHASE
-
1.4” Titanium Compression Driver, 3.0” v.c. Neodimium
-
15” Woofer, high power
-
800 Hz crossover point for perfect vocal reproduction
-
90°x60°, wide dispersion constant directivity horn
-
Silent Fanless Class-D Amplifier
NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.
The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system
LEGENDARY TRANSDUCERS
SUPERIOR COMPRESSION DRIVERS
The ND840 Compression Driver in pure Titanium with a 3” voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
DIRECT DRIVE TECHNOLOGY
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’s suspension has been designed following extensive studies aimed at minimizing distortion and extending low frequency range.
POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the D Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
RENTAL PROOF
D LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability.
HIGH DEMAND APPLICATIONS
The multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.
RCF CVR HD 15 PROTECTION COVER For HD 15, HD 35, HDM 455-A, ART 415, ART 425-A Speakers
Features
- Outer fabric: 600D polyester on PVC base
- Internal fabric: 190 T taffeta fabric on PVC base
- Padding: 10 mm foam rubber
- Closure / opening: frontal and rear Zip + Velcro
- Embroidered white logo on front
- Handle hole on sides
CVR HD 15 Padded Cover for 15” HD Two-Way Active Speaker. It features heavy-duty polyester outer fabric, foam rubber padding, and zip openings with Velcro fasteners.
General Specifications
-
Protections: Scratches, Hits
-
Material: Nylon
-
Compatible Models: HD 15, HD 35, HDM 455-A, ART 415, ART 425-A Speakers
- Weight: 1.08 kg / 2.38 lbs
Shipping information
-
Package Height: 90 mm / 3.54 inches
-
Package Width: 770 mm / 30.31 inches
-
Package Depth: 480 mm / 18.9 inches
-
Package Weight: 2.2 kg / 4.85 lbs
Acoustical specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 132 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
Transducers
- Compression Driver: 1.4'', 3.0'' v.c
- Woofer: 15'', 3.0'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
Processor section
- Crossover frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line
Power section
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
Standard compliance
- CE marking: Yes
Physical specifications
- Cabinet/Case Material: PP Composite
- Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
- Handles: 1 Top, 2 Side
- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
Size
- Height: 714 mm / 28.11 inches
- Width: 442 mm / 17.4 inches
- Depth: 397 mm / 15.63 inches
- Weight: 22 kg / 48.5 lbs
Shipping information
- Package Height: 750 mm / 29.53 inches
- Package Width: 440 mm / 17.32 inches
- Package Depth: 480 mm / 18.9 inches
- Package Weight: 24.5 kg / 54.01 lbs
