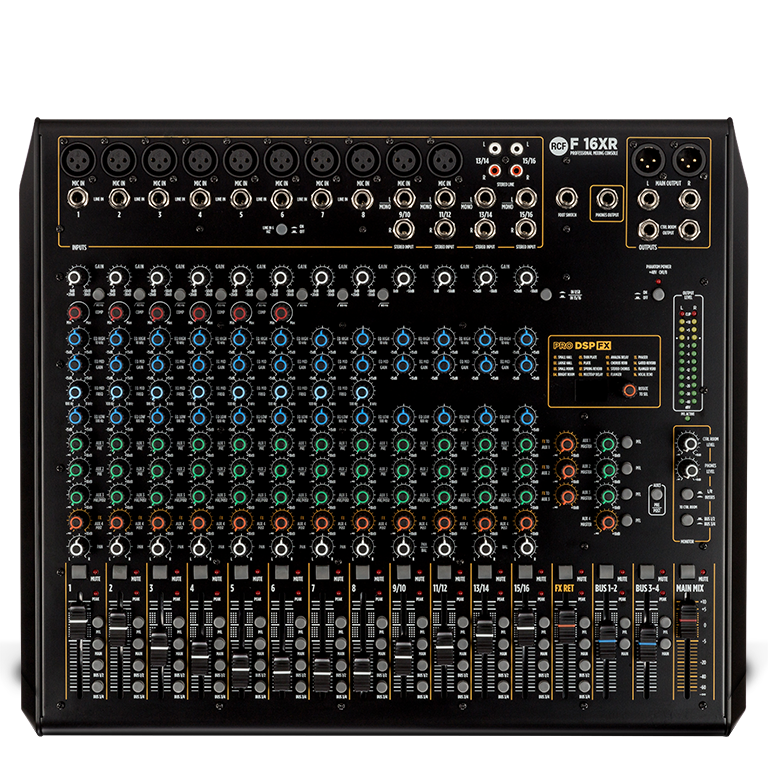

RCF F 16XR 16-Channel Mixing Console With Multi-FX DSP & Recording F16XR

RCF F 16XR 16-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

• 10 Mic preamp inputs, 4 mono line inputs

• 4 Stereo line inputs

• PRO DSP FX onboard with 16 presets

• Stereo recording and playback via USB port

• 6 single control compressors

• Balanced main output +28 dB (Stereo XLR + TRS)

• Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)

• 60 mm faders

• Internal universal power supply

• Designed and engineered in Italy

The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.

SPECIFICATIONS

Electrical specifications

FREQUENCY RESPONSE:

1. 20 Hz ÷ 20 kHz

 THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):

• <0,02% A-Weighted


POWER SUPPLY:

• Internal

VOLTAGE REQUIREMENTS:

• 100 V - 240 V

POWER CONSUMPTION (W):

• 30 W

Inputs

GAIN RANGE:

• 0 dB ÷ -50 dB

GAIN SELECTION:

• 20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):

• 1 Mohm

HI-Z LINE INPUTS:

• 1

INPUT NOISE LEVEL (DBU A-WEIGHTED):

• -124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):

• 14 kohm

LINE:

• 8

LINE INPUT IMPEDANCE (KOHM):

• 21 kohm

LOW CUT:

• 80 Hz

MIC:

• 10

PHANTOM POWER +48V:

• Yes

STEREO LINE:

• 4

STEREO LINE GAIN SELECTION:

• 20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:

• 14 kohm

Outputs

MAIN MIX:

• 1

CONTROL ROOM:

• Yes

FX SEND:

• 1

AUX SEND:

• 3

AUX OUTPUT:

• 4

GROUP OUT:

• 4

PHONES:

• 1

Outputs specifications

MAIN OUT LEVEL (DBU):

• 28 dBu

AUX OUT LEVEL (DBU):

• 28 dBu

GROUP OUT LEVEL (DBU):

• 28 dBu

PHONES OUT IMPEDANCE (OHM):

• 150 ohm

PHONES OUT LEVEL (DBM):

• 10 dBm

Compressors

RCF COMPRESSORS:

• n°6 Single Control Compressors on Channels 1 to 6 EQ


INPUT CHANNELS EQ:

• 1 Semi Parametric / 2 Shelving

DESCRIPTION:

• High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends

AUX:

• 2 PRE / 1 PRE/POST

FX POST:

• 1

Internal Effects

SEND EFFECTS:

• 1

USB audio

TYPE:

• B

PLAY TRK:

• 2

REC TRK:

• 2

SUPPORTED SAMPLE RATE (KHZ):

• 44.1, 48.0 kHz

Other features

FOOTSWITCH:

• Yes

Standard compliance

CE MARKING:

• Yes

Physical specifications

CABINET/CASE MATERIAL:

1. Metal

COLOR:

• Black

DEPTH:

• 406 mm / 15.98 inches

HEIGHT:

• 107 mm / 4.21 inches

WEIGHT:

• 6.4 kg / 14.11 lbs

WIDTH:

• 479 mm / 18.86 inches

Shipping Information

PACKAGE DEPTH:

• 523 mm / 20.59 inches

PACKAGE HEIGHT:

• 150 mm / 5.91 inches

PACKAGE WEIGHT:

• 7.4 kg / 16.31 lbs

PACKAGE WIDTH:

• 453 mm / 17.83 inches
