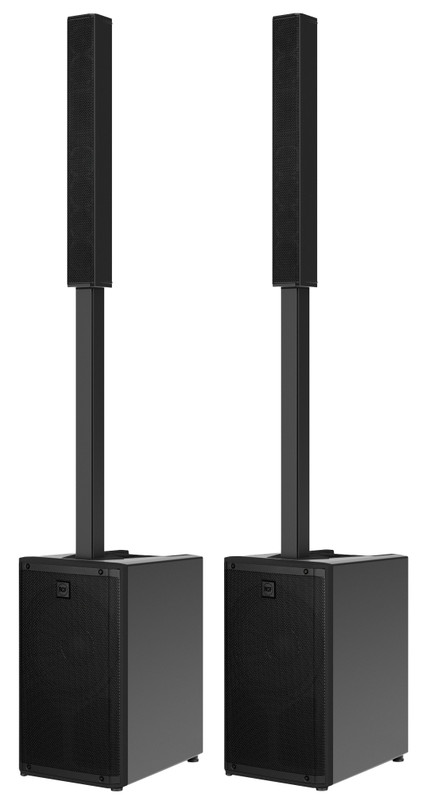

2x RCF EVOX J9 12" Powered Column PA Systems 2100W – Pro DJ & Live Sound Pair
The RCF J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, the J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s touring-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and a straightforward setup for bands, DJs, and live performers.
ELEVATE YOUR SOUND
EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. With a streamlined aesthetic, the premium composite design delivers unparalleled acoustic fidelity, raw power, and ease of deployment. EVOX J9 is the perfect fusion of Italian engineering and sophisticated design, ready to elevate any setting.
2100 W
Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
True 3-Way Design
Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.
The forward radiation of the array of 6 X 3” neodymium drivers combined with the centered waveguide deliver and a balanced point-source response.
12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Variable Height Configuration
Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family’s sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.
QUICK SETUP READY TO PLAY
EVOX J9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable, with the option to connect the column directly to the bass enclosure or increase height with full- or half-pole extensions.
Ready for the Road
Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility
BIG IMPACT, MINIMAL FOOTPRINT
EVOX J9 incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It’s the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.
Features:
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Nd Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Nd Transducers
- 12” RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet With Aluminum Stand Mount
- Sleek, Road-Ready Design
- Dual Height Configuration
- Top Speaker Padded Carrying Bag Included
- Optional Sub Padded Cover
Specifications
Acoustical specifications
- Frequency Response: 40 Hz - 20000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 40°
Transducers
- Compression Driver: 1 x 0.75'' neo, 1.75'' v.c
- Fullrange: 6 x 3.0'' neo, 1.0'' v.c
- Woofer: 1 x 12'', 2.5'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor section
- Crossover Frequencies: 200 Hz/1800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
- Total Power: 2100 W Peak
- High frequencies: 700 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: VDE
Standard compliance
- Safety agency: CE compliant
Physical specifications
- Cabinet/Case Material: PP Composite
- Handles: 1 Top
- Pole mount/Cap: Quick-fit socket
- Grille: Steel
- Color: Black, White - RAL 9003
Size / Weight
- Height: 2080.1 mm / 81.89 inches
- Width: 350 mm / 13.78 inches
- Depth: 462.6 mm / 18.21 inches
- Weight: 28.3 kg / 62.39 lbs
Shipping information
- Package Height: 680 mm / 26.77 inches
- Package Width: 490 mm / 19.29 inches
- Package Depth: 460 mm / 18.11 inches
- Package Weight: 32 kg / 70.55 lbs
UPC
- 8024530024161
