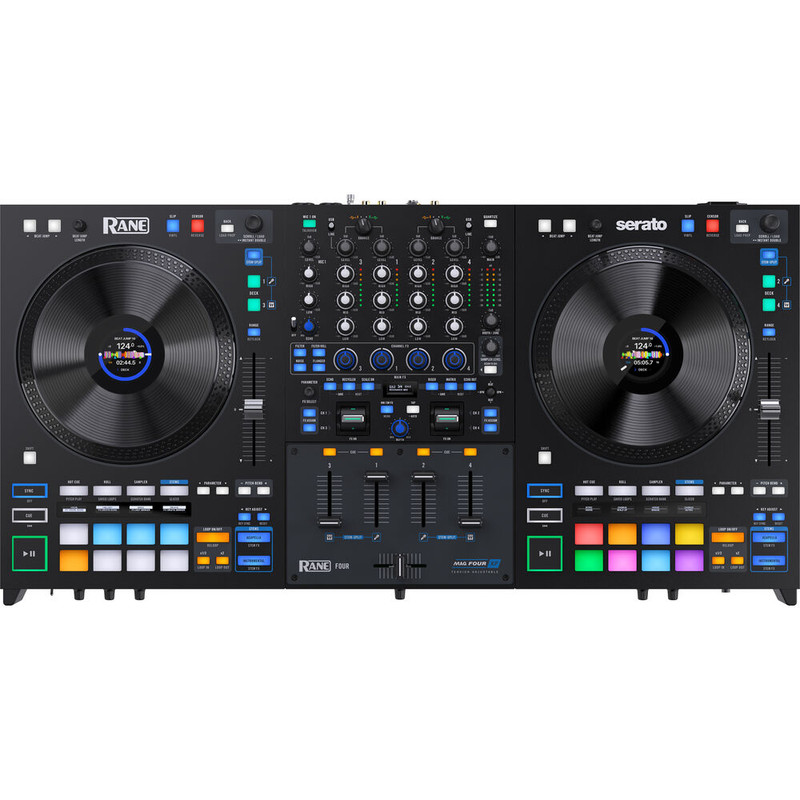

RANE FOUR Advanced 4-Channel Stems DJ Controller With Serato DJ Pro (MINT)

Product Description
Product Specifications
Product Videos

RANE FOUR Advanced 4-Channel Stems DJ Controller With Serato DJ Pro

RANE has produced the ultimate DJ setup, in collaboration with Serato, providing superior Stems control.

Fusing the renowned industrial-grade build and sound quality of RANE hardware with the powerful new Stems capabilities of Serato DJ software, ensures the RANE FOUR will always be by your side, no matter the battle.

Dedicated STEMS controls

Harness The Power of STEMS

The most advanced Serato Stems DJ controller with dedicated Stems pad mode, independent Acapella/Instrumental buttons, and exclusive STEM-SPLIT feature for the ultimate Stems workflow and experience

Dedicated Pad Displays

Focus On Your Performance, Not Your Laptop

The 8 OLED displays above the 16 Performance Pads offer visual feedback for all pad modes. See Cue, Loop, Sample names, Roll and Loop lengths, beat divisions, Pitch Play tuning, Stem elements and FX

Creative FX

Creative Performance Features

Add flavor to your individual Stems and tracks with the 22 hardware Main FX and 4 knob-controlled Channel FX like Reverb, Scale Down Echo, Recycler, Riser, Filter, Filter Roll, Noise, Flanger and more

4-Channel Mixer

Four Channels of Performance Possibility

4-Channel mixer with full EQ control, intuitive FX assignment, enhanced Sampler routing and quick-access jog wheel deck selection buttons and 2 external Line/Phono ins for external turntables or decks

MAG FOUR Crossfader

Creative FX and MAG FOUR Crossfader

Access Serato DJ Pro with Pitch 'n Time. Complement your performance using the MAG FOUR tension-adjustable crossfader with contour control to adjust the slope of the crossfader curve

8.5" Jog Wheels

Be In Full Control of Your Mix!

Mix with 8.5" responsive jog wheels and 8 pads with Stems, Hot Cue, Saved Loop, Roll, Sampler, Slicer and Combo Pad mode enabling 2 modes at once - one for the top pads and one for the bottom ones

Serato DJ Pro Included

From the main stage to the underground, Serato DJ Pro is the trusted DJ software app for the DJing elite. Renowned for its reliability and packed with features to empower outstanding performances

Serato Pitch ‘n Time DJ Included

A renowned Time-Stretching and Key-Shifting algorithm that gives you the creative freedom to shift and sync the key of your tracks, or to speed up and slow them down to extreme tempos

Expand your Performance

RANE FOUR features switchable phono/line inputs for mixing with external devices, decks, and turntables. It is also DVS-ready for DJing with Serato Control Vinyl (DVS Expansion Pack required)

Specifications

Digital Audio	Converters: Cirrus Logic, 24-bit PCM, 48 kHz Digital Signal Processing: 32-bit, Floating Point, Double precisio Dynamic Range (A-weighted, unity gain): ADC: 113 dB DAC: 113 dB CD Input to Analog Output: 110 dB CD Input to USB Output: 113 dB USB Input to Analog Output: 113 dB
Inputs	Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS): Analog Gain: 25 dB Maximum Input: 110 mV Gain Trim: Off to +26 dB (unity at center) Tone Control: 2-band Line/Phono Inputs 3/4 (RCA stereo pairs, switchable): Line: Line Maximum Input: 4 Vrms Gain Trim: Off to +12 dB Tone Control: 3-band, full-cut to +10 dB THD+N (20 kHz BW @ 1 kHz: 0.004% Phono: RIAA RIAA Curve: +/-0.25 dB Gain (@ 1 kHz): 31.5 dB Maximum Input (@ 1 kHz): 106 mV Dynamic Range (A-weighted): 102 dB
Outputs	Main Outputs (XLR): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz Main Outputs (RCA stereo pair): Maximum Output: 4 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz Booth Outputs (1/4”): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS): Maximum Output: 4 Vrms Voltage: (no load) Output Power: 50 mW (50 ohms) Dynamic Range (A-weighted): 108 dB
Pads	(16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays	(2) 320 x 240 Color LCD’s
Pad & FX Displays	(9) 128 x 32 Monochrome OLED’s
Faders	(1) MAG FOUR tension-adjustable crossfader with contour (4) Standard channel faders
Connections	(2) XLR outputs (Main) (2) 1/4” outputs (Booth) (1) RCA stereo output pair (Main) (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 3-4) (1) 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones) (2) USB Type-B ports (1) IEC power cable input
Power	Connection: IEC Voltage: 100–240 V, 50/60 Hz Consumption: 20 W
Dimensions	Dimensions (width x depth x height): 30.8” x 15.9” x 4.2” 782.32 x 403.8 x 106.6 mm
Weight (including platters)	18.25 lbs. 8.27 kg
