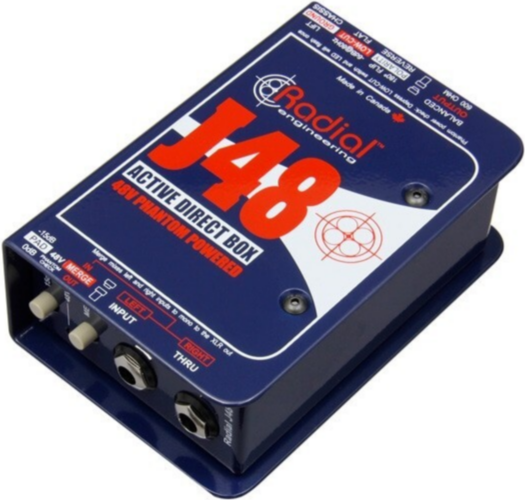

RADIAL J48 Phantom Powered Premium DI Active Direct Box natural sound instrument
Phantom Powered Active Direct Box
- The J48 is a high performance active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.
Higher Rail Voltage, Higher Headroom
- Most battery-powered guitars and basses will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes that are only able to handle about 3 Volts. The J48 uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through.
Feature
J48 Resources
- Part no: R800 3001 00
J48 for Live Touring
- A direct box is primarily used to get an instrument signal from the stage to the mixing desk and PA system. The Radial J48 delivers the natural tone exceptionally long distances without adding distortion or coloring the sound in any way.
J48 in the Studio
- When recording direct, the quality of the direct box interface assures the purest signal going to the track. The Radial J48 is particularly well suited for recording bass or capturing a direct track from a guitar.
Reamping with the J48
- Reamping means sending a dry track from the recorder back out to pedals and amps. This tricks has been used for years by top professionals. The Radial J48 is ideally suited to capture the sound of the instrument for later Reamping
- Exceptional headroom & dynamic range
- Retains the natural sound of the instrument
- Merge switch sums stereo instruments to mono
- Powered by 48V phantom, no batteries required
- Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF
- Input Connectors: 1/4"
- Output Connectors: Balanced XLR, 1/4" Thru
General
- Construction: 14 gauge steel chassis and outer shell
- Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight: 1.55 lb (720 g)
- Power: 48V phantom - proprietary digital switching
- Conditions: For use in dry locations only between 5°C and 40°C
Specifications
- Audio circuit type: Proprietary analog circuit with low-noise op-amp
- Frequency response: 20Hz ~ 20kHz
- Dynamic range: 109dB
- Total harmonic distortion: 0.002% @ -5dBu
- Intermodulation Distortion: 0.003% @ -3dBu
- Phase Deviation: +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
- Input Impedance: 220kΩ - ¼" input
- Output Impedance: 200Ω - XLR output
- Equivalent Input Noise: -103dBu
- Noise Floor: -99dB below 0dBu
- Maximum Input: +10dBu
UPC
- 676101034079
