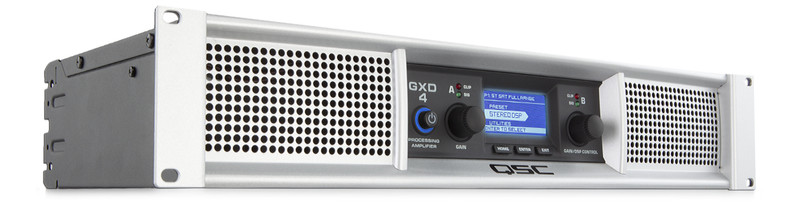

QSC GXD4 Light weight, class-D professional power amplifier with DSP, 2 channels, 400 watts/ch at 8-Ohm, 600 watts/ch at 4-Ohm, total power capacity of 1600 watts.
The QSC GXD4 2-channel power amplifier is ideal for entertainment and production applications requiring performance and the convenience of integral signal processing. The hallmarks of the QSC brand – professional audio quality, engineering and manufacture
Features
- High peak output power with up to 1600 watts from the GXD 4 and a whopping 4500 Watts from the GXD 8.
- Power levels matched to the most popular loudspeakers and optimized for maximum real-world headroom into 4Ω and 8Ω speaker systems.
- Class D output stage with a universal power supply for high performance and efficiency.
- Extensive and powerful loudspeaker processing built in. Includes high and low-pass filters, 4-band parameteric EQ, limiting, and delay.
- E Series Entertainment System DSP Tunings are now available for GXD processing amplifiers:
- Large LCD display simplifies amplifier setup and indicates amp status.
- Inputs: Parallel XLR and 1/4-inch TRS connectors for compatibility with any source while providing convenient loop-thru capability.
- Precision rotary encoders for gain and DSP parameter control.
- Outputs: Professional binding post and NL4 connectors (compatible with NL2) provide for mono and bi-amp speaker connections.
- Digital limiting automatically protects the amplifier from damage due to temperature rise or overdrive.
- Adjustable speaker protection to match your loudspeaker’s power and impedance.
- Front panel LEDs indicate signal presence, input overload, and amplifier clipping
| Voltage: |
USA 100-240v |
| Stereo Mode - Watts per channel: 8Ω continuous, both channels driven: |
400 Watts |
| Stereo Mode - Watts per channel: 4Ω dynamic, both channels driven: |
800 Watts |
| Stereo Mode - Watts per channel: 8Ω dynamic, both channels driven: |
600 Watts |
| Stereo Mode - Watts per channel: Input Sensitivity: |
1.2 Vrms, 3.9 Vrms |
| Stereo Mode - Watts per channel: Signal to Noise (A-weighted, 20 Hz – 20 kHz): |
100 dB |
| Stereo Mode - Watts per channel: Distortion (typical) 1 kHz at full rated power: |
< 1% THD |
| Stereo Mode - Watts per channel: 4Ω continuous, both channels driven: |
600 Watts |
| Power Requirements: 1/8 power at 4Ω; - 120 Vac: |
2.9 Amps |
| Stereo Mode - Watts per channel: Voltage Gain (8Ω): |
33.5 dB |
| Power Requirements: 1/8 power at 4Ω; - 100 Vac: |
3.4 Amps |
| Power Requirements: 1/8 power at 4Ω; Frequency Response (20 Hz – 20 kHz): |
+0.7 dB, -0.8 dB |
| Stereo Mode - Watts per channel: Output Circuitry: |
Class D |
| Power Requirements: 1/8 power at 4Ω; - 230 Vac: |
1.6 Amps |
| Power Requirements: 1/8 power at 4Ω; Damping Factor: |
100 |
| Power Requirements: 1/8 power at 4Ω; Front Panel Controls and Indicators: |
2 x Rotary Encoders 3 x Operational buttons (HOME, ENTER, EXIT) 2 x Green Signal LEDs, indicate signal presence 2 x Red A/D Clip LEDs, indicate input over-drive and/or amplifier current clipping Blue Power LED ring, AC on 2.12" x 1.0", 256 x |
| Power Requirements: 1/8 power at 4Ω; Input Impedance: |
20kΩ (balanced), 10kΩ (unbalanced) |
| Power Requirements: 1/8 power at 4Ω; Maximum Input Level: |
+23.5 dBu |
| Power Requirements: 1/8 power at 4Ω; Amplifier and Load Protection: |
Short circuit, open circuit, thermal, RF protection, Load protected against DC faults |
| Weight (Net): |
11.3 lb (5.1 kg) |
| Power Requirements: 1/8 power at 4Ω; Input Connectors (each channel): |
3-pin XLR/F / 1/4" TRS, balanced |
| Power Requirements: 1/8 power at 4Ω; Output Connectors (each channel): |
NL4 (Channel 1 - 1+/-, Channel 2 - 2+/-), binding posts |
| Power Requirements: 1/8 power at 4Ω; Dynamic Headroom (4Ω): |
1.25 dB |
| Weight - Shipping: |
15.4 lb (7.0 kg) |
| Agency Approvals: |
UL, CE, RoHS/WEEE compliant |
| Power Requirements: 1/8 power at 4Ω; DSP Functions: |
High Pass Filter, 4th order LR, adjustable Frequency 20 Hz to 4 kHz Low Pass Filter, 4th order LR, adjustable Frequency 60 Hz to 4 kHz 4-band PEQ, with variable Frequency, Gain, and Bandwidth Peak Limiter, with Power, Agressiveness, & Impedance selection. |
| Dimensions (HWD): |
3.5" (2 RU) x 19" x 10.2" (89 mm x 483 mm x 259 mm) |
| Carton and Contents: |
Power cable, and quick start guide |
|
