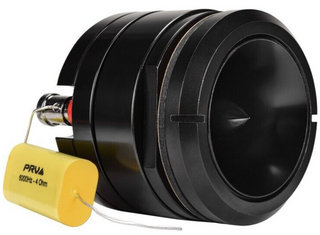

PRV MT2.2TWC-4 2.25" Motorcycle Bullet Tweeter Short Horn 120W Moto Series 4 Ohm
The MT2.2TWC-4 horn tweeter is a superior motorcycle audio solution. You can easily improve the sound system in your UTV, 4 wheeler, Slingshot, or Motorcycle with very little space.
Our new MOTO Series (MT) super tweeters feature a new short horn design to provide a nice finishing touch to any motorcycle audio system without taking up much space. These products are available in two sizes and feature flexible mounting options for easy installation.
Another unique feature of the MT2.2TWC-4 is its two mounting options for flush mount without having the treads exposed. You have the option to flush mount on thin baffle cutouts and be able to tighten it from its slotted front ring on more space constrained installations. Its unique 10 mm trick front ring and a rubber gasket help securely mount the tweeter without exposing its treaded barrel. They are small enough to easily drop into existing fairing gauge holes on your motorcycle.
Due to the premium materials used in its construction, such as a titanium diaphragm, a high-temperature voice coil, and a strong neodymium magnet motor, this produces a remarkably high frequency. The MOTO Series is dedicated to delivering outstanding pro audio performance to your motorsports application.
Not only does this driver look as good as it sounds, but it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz.
Features
- Designed for motorcycles, this new tweeter provides the highest output and easy mounting to keep up with high road noise.
- Depending on the thickness of your baffle, there are two flush mounting options. Its front ring and tightening tool can be used to mount it in installations with limited space.
- Powerful Neodymium magnet providing high performance with compact size and easy quick connect push terminals. 4 Ohm impedance.
- This small 2.25″ horn tweeter is built to handle 120 watts and is capable of astonishing high frequency performance. 107 dB sensitivity at 1w/1m.
- A capacitor is included for protection from damaging frequencies at high power. Mounting hardware and a tightening tool are included. Also available in Black Finish.
Specification
- Nominal impedance: 4 Ohm
- Nominal Power Handling*: 60 Watts
- Continuous Program Power (RMS)**: 120 Watts
- Max Peak Power***: 240 Watts
- Sensitivity 2.00V at 1m: 107 dB
- Recommended Hi Pass Crossover For Full Power Handling: 6000 Hz 12db Per Octave Crossover
- Frequency Response at -10dB: 4,500 – 20,000Hz
- Voice Coil Diameter: 1.0″
- Voice Coil Wire: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Magnet Material: Neodymium
EXTRA INFO
- Overall Height: 2.34″
- Mounting Depth: 1.62″ / 1.82″
- Overall Diameter: 2.28″
- Cutout Diameter: 1.69″
- Net Weight: 1.1 Lbs.
- Shipping Weight: 1.21 Lbs.
- Carton Dimensions W x L x H: 3.93″ x 3.46″ x 2.99″
UPC
- 0810075523270
