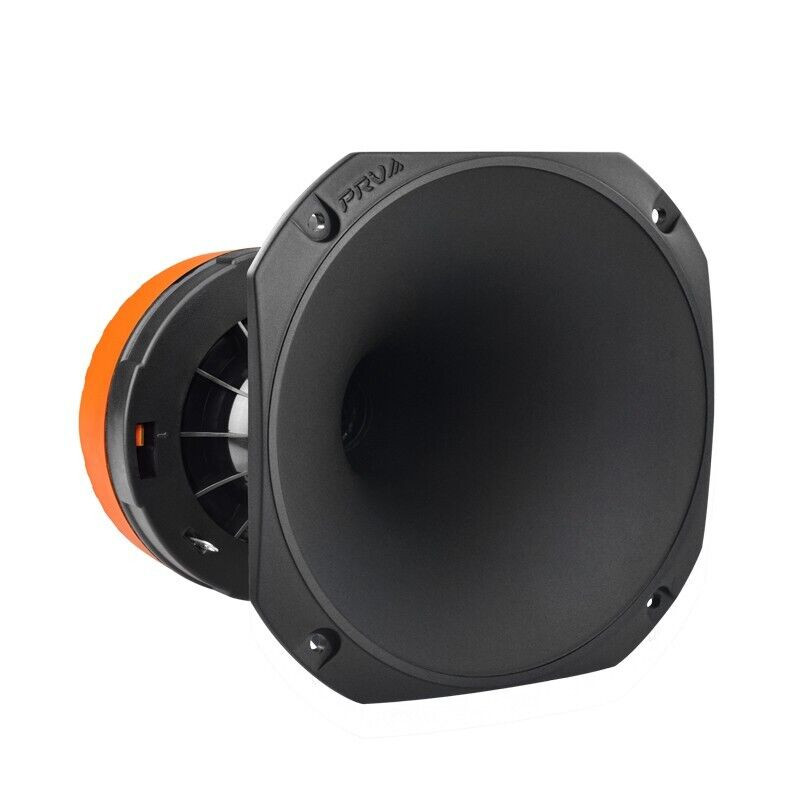

PRV AUDIO WGP275PH 1" EXIT PHENOLIC COMPRESSION DRIVER + HORN - COMBO 8 Ohms
Features
New addition to the 1” Exit Phenolic family, the WG275Ph combo is all about Mid Range vocal reproduction at low distortion. Built to last with its phenolic diaphragm and copper voice coil, that are designed to reproduce the all-important vocal range with authority!
Highlights
- Throat Diameter: 1″
- Type: Combo
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 100 Watts
- Program Power: 200 Watts
GENERAL SPECIFICATIONS
- Exit Throat Diameter 1” (25.4mm)
- Nominal impedance 8 Ohms
- Rated AES Power Handling (RMS) 100 Watts
- Program Power 200 Watts
- Sensitivity 2.83V at 1m 106 dB
- Recommended Hi Pass Crossover**
- **For Full Power Handling 500 Hz**
- **12db Per Octave Crossover
- Frequency Response at -10dB 500 – 6,500 Hz
- Voice Coil Diameter 2″ (51 mm)
- Voice Coil Wire Copper
- Voice Coil Former Material Kapton
- Diaphragm Material Phenolic Resin
- Flux Density 1.1 T
- Magnet Material Ferrite
