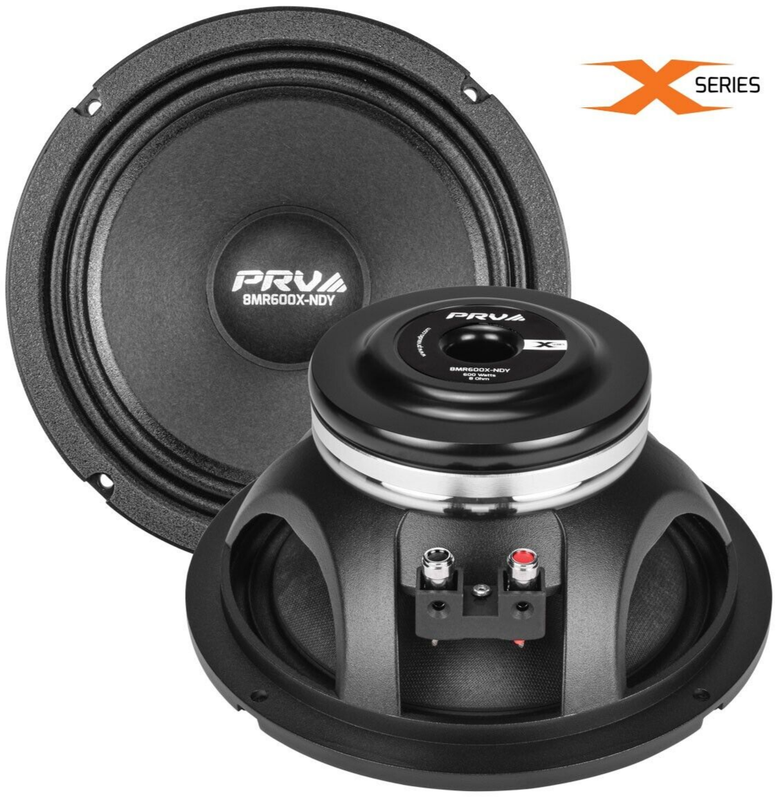

PRV 8MR600X-NDY X SERIES High Power 8" Neodymium Midrange LoudSpeaker 600 watts 8-Ohms

PRV 8MR600X-NDY X SERIES High Power 8" Neodymium Midrange LoudSpeaker 600 watts 8-Ohms

PRV AUDIO

Write a Review
SKU:
PRV 8MR600X-NDY 8Ω N.T
Condition:
New
UPC:
810075525519
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $189.91
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

PRV 8MR600X-NDY 8" MIDRANGE LOUDSPEAKER 600watt High Power Neodymium X SERIES 8Ω

Features

  • X-treme midrange performance is what PRV Audio’s 8MR600X-NDY is all about.

  • Made to be a class leading midrange in the pro audio realm, this speaker has a high output sensitivity of 98.5 dB and only weighs 5 pounds. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

  • The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio.

  • Capable of high output and low distortion, this midrange is perfect for filling in the significant midrange response in any high output sound system. Great addition to the X-Series.

  • 2″ DUAL layer CCAW voice coil wound on a Kapton former, 8 Ohm

  • This specially designed loudspeaker is assembled with top of the line components for long lasting play, even during intense use.

  • Low inductance and extended frequency response with wide directivity

  • 600 watts RMS continuous program power rating makes high acoustical output

  • Ideal solution for compact full-range applications demanding high acoustic output

  • Detailed vocal response and pristine instrument sound reproduction

  • A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent linear response taking performance to the next level with its wide frequency bandwidth, high output levels between 3,200 to 10,000Hz

  • Making the 8MR600X-NDY an excellent solution for high sound quality two or three-way systems.

  • Extreme car audio enthusiasts will find PRV Audio’s 8MR600X-NDY to be the perfect 8″ midrange door speaker, capable of handling up to 600 watts RMS power (with a suggested 125 Hz, 18 dB/octave high pass filter in place tuned with PRV DSP)!

  • Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.

PRV 8″ Midrange Speaker 8MR600X-NDY 600 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker

GENERAL SPECIFICATIONS

Nominal Diameter
  • 8″ (203 mm)
Nominal impedance
  • 8 Ohm
Nominal Power Handling
  • 300 Watts
Continuous Program Power (RMS)
  • 600 Watts
Max Peak Power
  • 1200 Watts
Sensitivity 2.83V at 1m
  • 98.5 dB
Recommended Hi Pass Crossover** **For Full Power Handling
  • 145Hz** **12db Per Octave Crossover
Frequency Response at -10DB
  • 95 – 10,500 Hz
Voice Coil Diameter
  • 2″ (50 mm)
Voice Coil Wire
  • CCAW
Voice Coil Winding Depth
  • 11.0 mm
Former Material
  • Kapton
Magnetic Gap Depth
  • 7.0 mm
Frame Material
  • Die Cast Aluminum
THIELE-SMALL PARAMETERS

Equivalent Volume Vas
  • 12.58 l
Excursion (mathematical)*** Xmax
  • 3.75 mm
Free Air Resonance Fs
  • 87.6 Hz
Mechanical Factor Qms
  • 17.78
Electrical Factor Qes
  • 0.30
Total Factor Qts
  • 0.29
Cone Area Sd
  • 232 cm²
Mechanical Mass Mms
  • 19.73 g
Bl Factor Bl
  • 15.17 Tm
Dc Resistance Re
  • 6.3 Ohm
Inductance Le
  • 0.03 mH at 1 kHz
Mechanical Mass Without Air Mmd
  • 17.72 g
Mechanical Compliance Cms
  • 0.167 mm/N
EXTRA INFO

Overall Diameter
  • 8.11″ (206 mm)
Front Mount Baffle Cutout
  • 7.16″ (182 mm)
Mounting Depth
  • 3.45″ (87.6 mm)
Overall Depth
  • 3.81″ (96.7 mm)
Net Weight
  • 5.00 Lbs (2.26 kg)
Shipping Weight
  • 5.55 Lbs (2.52 kg)
Carton Dimensions W x L x H
  • 8.66″ x 8.66″ x 4.72″ (220 x 220 x 120 mm)
UPC
  • 810075525519
