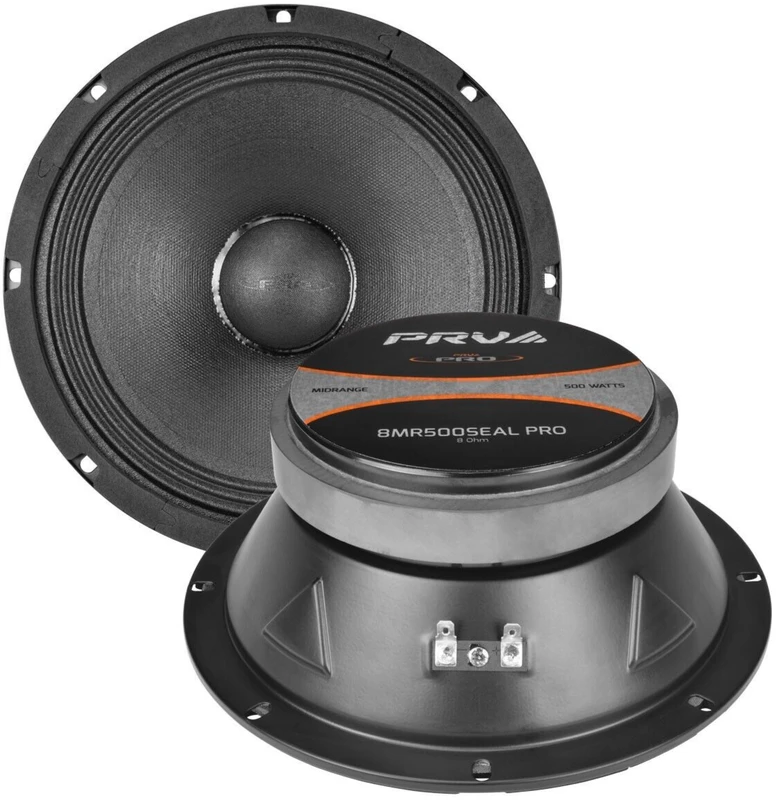

PRV 8MR500SEAL PRO High Performance 8" Sealed Basket Midrange Speaker 500 Watts 8-Ohms

PRV 8MR500SEAL PRO High Performance 8" Sealed Basket Midrange Speaker 500 Watts 8-Ohms

PRV AUDIO

Write a Review
SKU:
PRV 8MR500SEAL PRO 8 Ohm N.T
Condition:
New
UPC:
810075525694
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $69.91
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

PRV 8MR500SEAL PRO 8″ Sealed Basket Midrange Speaker 500W High Performance 8 Ohm

The 8MR500SEAL PRO offers very smooth midrange response to the upper midrange up to 7,500 Hz. Designed to provide definition and high output on midrange frequencies, perfect for use in any high output 3-way system.

Now you can pair this 8″ speaker with any 10″ or 12″ speaker from our PRO Series, to build the ultimate custom Chuchero® or PRO Audio systems.

Feature

  • A sealed back basket simplifies cabinet manufacture, eliminating the need for a separate enclosure for other speakers.

  • Capable of handling 500 Watt RMS this midrange has enough output capability to keep up with the most powerful drivers, suitable for use in 3-way cabinet systems ( Midbass + Seal Basket + High Frequency Driver or Tweeter).

  • Its naturally damped paper cone is coated with a waterproof coating, ensuring high performance even in harsh damp or wet weather conditions.

  • Optimized to deliver detailed reproduction of mid-range frequencies from 300Hz to 7,500Hz. A powerful output peak at 400hz reaches 104dB of sensitivity at 1w/1m.

  • A light paper cone is mated to a large 2″ voice coil for great power handling of 500 watts. A durable spider suspension, woven cloth surround, and closed back pressed steel basket are combined for durability over many hours of use.

  • Cabinet builders gravitate towards this driver for use in their systems when looking for a powerful sealed basket midrange, to keep up with high sensitivity low frequency speakers.

  • Using a closed basket design in a speaker like the 8MR500SEAL PRO offers several advantages. Firstly, it prevents interference from a woofer or midbass in a shared cabinet design, resulting in a cleaner and more accurate midrange response.Additionally, the closed basket design contributes to a smooth punch of midbass and midrange, enhancing the overall audio performance of the speaker.

PRV 8″ Sealed Basket Midrange 8MR500SEAL PRO Audio Speaker / 8 Ohm – High Performance Waterproof Cone

GENERAL SPECIFICATIONS

Nominal Diameter
  • 8″ (203 mm)
Nominal impedance
  • 8 Ohm
Nominal Power Handling
  • 250 Watts
Continuous Program Power (RMS)
  • 500 Watts
Max Peak Power
  • 1000 Watts
Sensitivity 2.83V at 1m
  • 97 dB
Recommended Hi Pass Crossover** **For Full Power Handling
  • 400 Hz** **12db Per Octave Crossover
Frequency Response at -10DB
  • 400 – 7,500 Hz
Voice Coil Diameter
  • 2″ (50 mm)
Voice Coil Wire
  • CCAW
Voice Coil Winding Depth
  • 12.0 mm
Former Material
  • Kapton
Magnetic Gap Depth
  • 8.0 mm
Frame Material
  • Stamped Steel
THIELE-SMALL PARAMETERS

Equivalent Volume Vas
  • 0.97 l
Excursion (mathematical)*** Xmax
  • 4.00 mm
Free Air Resonance Fs
  • 392.2 Hz
Mechanical Factor Qms
  • 18.14
Electrical Factor Qes
  • 2.58
Total Factor Qts
  • 2.26
Cone Area Sd
  • 241 cm²
Mechanical Mass Mms
  • 13.63 g
Bl Factor Bl
  • 8.83 Tm
Dc Resistance Re
  • 6.0 Ohm
Inductance Le
  • 0.25 mH at 1 kHz
Mechanical Mass Without Air Mmd
  • 11.53 g
Mechanical Compliance Cms
  • 0.012 mm/N
EXTRA INFO

Overall Diameter
  • 8.26″ (209.7 mm)
Front Mount Baffle Cutout
  • 7.20″ (183 mm)
Mounting Depth
  • 3.09″ (78.5 mm)
Overall Depth
  • 3.40″ (86.5 mm)
Net Weight
  • 6.40 Lbs (2.90 kg)
Shipping Weight
  • 7.0 Lbs (3.18 kg)
Carton Dimensions W x L x H
  • 9.05″ x 9.05″ x 3.94″ (230 x 230 x 100 mm)
UPC
  • 810075525694
