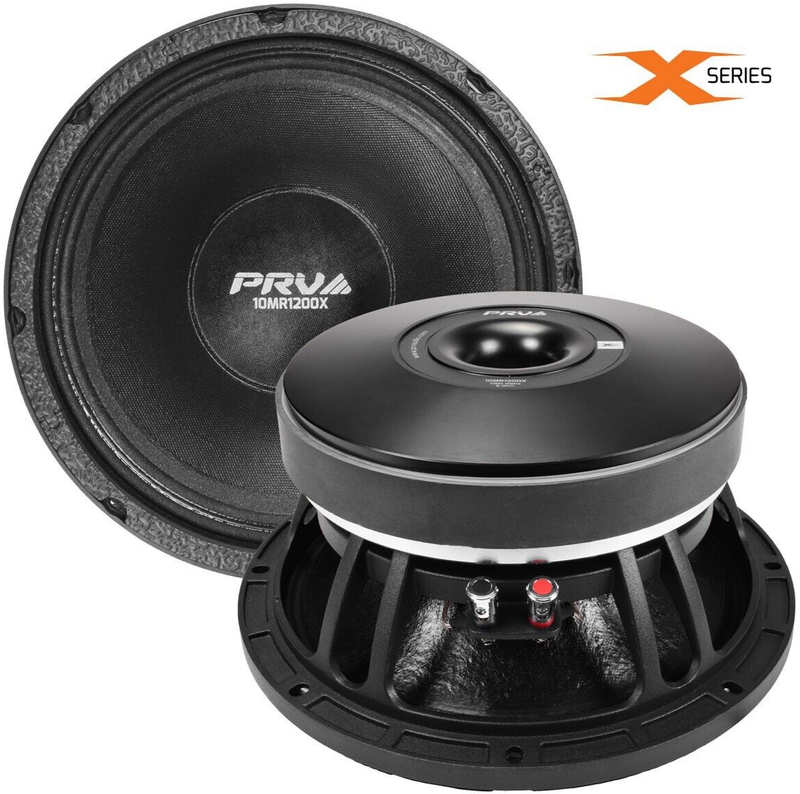

PRV 10MR1200X 10" Midrange Speaker 1200W 8Ω High Output 3" Voice Coil Loudspeaker
Features
- 1200 Watts RMS continuous program power rating makes high acoustical output
- Ventilated voice coil gap reduces power compression for its 3″ Inside/Out voice coil wound on glass fiber former for hi-temp performance, 8 Ohm
- Detailed vocal response and pristine instrument sound reproduction
- Excellent performance in compact enclosures, and custom doors
- 101 dB – High efficiency, you do not need a lot of power to achieve extreme SPL levels
-
Designed for extreme car audio enthusiasts, PRV Audio’s 10MR1200X loudspeakers represent the ultimate in midrange performance.
-
Our R&D department pushed the output limits on a midrange speaker, creating unique sound reproduction and with high output levels, making it our top of the line midrange PRO audio speaker.
-
The light weight cone provides excellent vocal and instrument response, taking performance to the next level with high output levels over +133dB between 260 to 4,200Hz.
-
Designed to achieve consistent high output levels at low distortion for the best listening experience.
-
Everything about this speaker is designed to achieve consistent high output levels, when driven to its limits.
-
When pushed to incredible output levels, this mid can produce incredible dynamic tones and a deep vocal response that is unmatched due to its high power handling and 101 dB sensitivity.
-
Thanks to its 3″ inside/outside voice coil wrapped on a glass fiber former with reinforced glue for heat resistance, this mid can handle forces of 1200 watts RMS at ease.
-
Made to be a class leading midrange in the pro audio realm, this midrange loudspeaker is best in its class for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.
Recommended Amplifier configurations and crossover points:
-
4 Speakers – 1x QS9000 at 2 Ohm, 4 speakers in parallel
-
8 Speakers – 1x QS9000 at 1 Ohm, 8 speakers in parallel
Recommended HPF using PRV Digital Signal Processor DSP when using up to 1200 Watts RMS musical power ( without clipping )
-
150 Hz at 12 dB per octave filter Crossover / BT12
-
140 Hz at 18 dB per octave filter Crossover / BT18
| Nominal Diameter |
|
| Nominal impedance |
|
| Nominal Power Handling |
|
| Continuous Program Power (RMS)** |
|
| Max Peak Power*** |
|
| Sensitivity 2.83V at 1m |
|
| Recommended Hi Pass Crossover For Full Power Handling |
|
| Frequency Response |
|
| Voice Coil Diameter |
|
| Voice Coil Wire |
|
| Voice Coil Winding Depth |
|
| Former Material |
|
| Magnetic Gap Depth |
|
| Frame Material |
|
| Equivalent Volume |
|
|
| Excursion (mathematical)*** |
|
|
| Free Air Resonance |
|
|
| Mechanical Factor |
|
|
| Electrical Factor |
|
|
| Total Factor |
|
|
| Cone Area |
|
|
| Mechanical Mass |
|
|
| Bl Factor |
|
|
| Dc Resistance |
|
|
| Inductance |
|
|
| Mechanical Mass Without Air |
|
|
| Mechanical Compliance |
|
|
| Overall Diameter |
|
| Front Mount Baffle Cutout |
|
| Mounting Depth |
|
| Overall Depth |
|
| Net Weight |
|
| Shipping Weight |
|
| Carton Dimensions W x L x H |
|
- 810075526653
