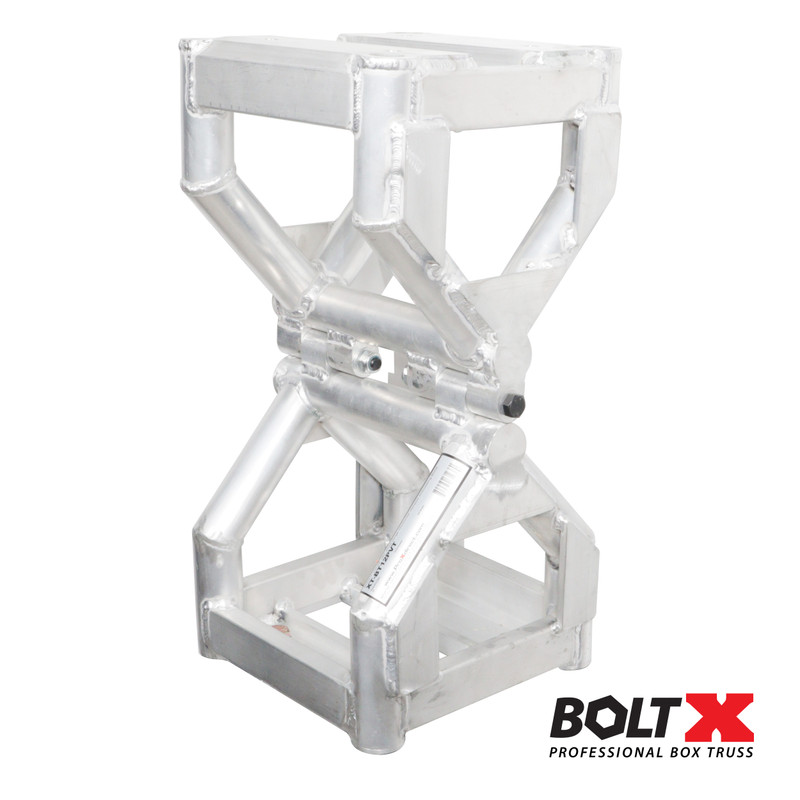

ProX XT-BT12PVT Center Pivot Hinge Bolted Truss variable corner Articulating Block
It adjusts from 0° to 180° and fits ProX 12" BoltX™ Bolted Truss Segments. Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup! This product can provide a universal solution for truss angles. There is a built-in adjustable arm to lock the desired angle between sections of the truss for unique builds. The superior construction quality of ProX trussing products guarantees many years of trouble-free use.
Features
- 12″ H x 12” W Professional Box Truss W/Bolt Connection.
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Load Tested & Inspected During Manufacturing and Quality Control
- Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers
- Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
Shipping Dimensions & Weight
- 13.00"H x 15.00"W x 26.00"L - Shipping Weight: 32.00 lbs
UPC
- 804589612360
