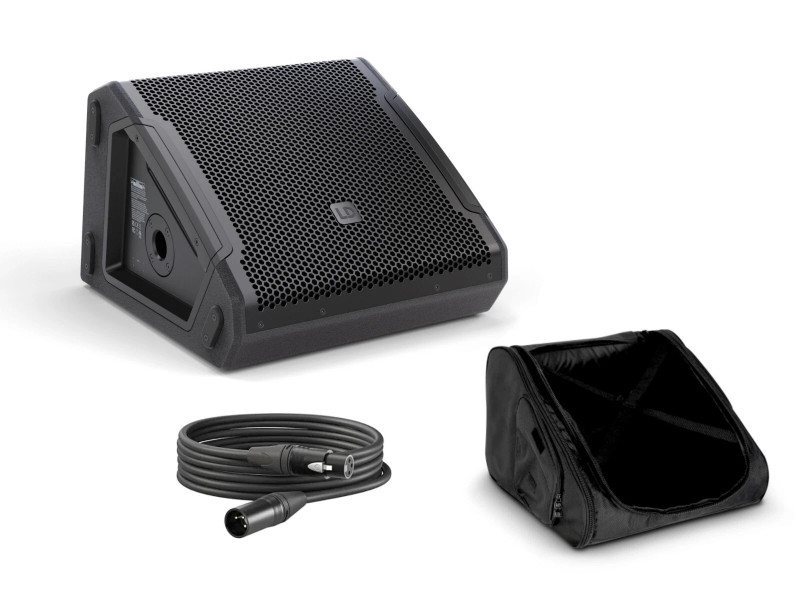

LD Systems MON 12 A G3 12" Powered Coaxial Stage Monitor 1200 W Peak and 127 dB
* Compact high-performance stage monitor with top-of-the-range technologies
* Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
* Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
* 12" woofer with 2.5" voice coil
* Optimised, practical radiation pattern due to 50° x 90° CD horn
* DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
* 3-band EQ, Notch filter, 4 application presets and delay function
* PowerCON compatible loop-through professional power connection
* 35 mm speaker stand flange for FOH applications
* Durable Polyurea coating and heavy-duty front grille
The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.
Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
General
Product type Stage monitors
Type Powered
Color Black
System output (RMS) 300 W
System output (Peak) 1200 W
Max. SPL Average (Sine burst) 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst) 127 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB) 68 - 18000 Hz
Frequency response (-10 dB) 55 - 20000 Hz
Crossover frequency 1400 Hz
Monitor angle 33°
Dispersion (H x V) 50° x 90°
Width 425 mm
Depth 453 mm
Height 315 mm
Features 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
