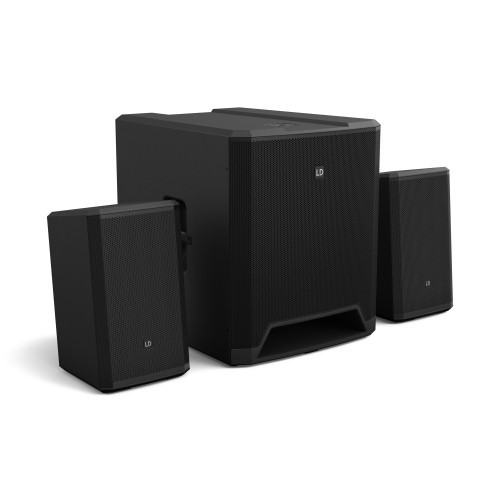

LD Systems DAVE 18 G4X Compact 2.1 powered system 4000W Wireless Bluetooth Black
Whether you're a DJ, live combo, solo entertainer, or at the next party, you need an all-round PA for your daily live performances that impresses on all levels – with professional sound for a variety of applications, a wide range of connections and accessory options for quick and flexible on-site setup, and maximum reliability. In short: your PA must deliver its best around the clock.
With the DAVE 18 G4X, your search is over. This active compact PA system, consisting of an 18" subwoofer and two 8" satellites (total power: 4000 W peak), offers not only a new, modern design with numerous handling improvements, but also an integrated 6-channel mixer with all the essential input options. This allows for the creation of a wide variety of setups and combinations of instruments, vocals, and playback devices – both wired and wireless thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.
The first two channels of the mixer are designed as channel strips. Here, you can connect a microphone, a high-impedance instrument—such as a guitar or bass—as well as line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (Small, Large, and Plate), are available for sound shaping. Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines, or small electronic drum kits, among others.
The DAVE 18 G4X becomes even more versatile when you use the digital SPDIF stereo input or Bluetooth connection to expand your performance setup with a media player, computer, or smartphone, allowing you to play and control backing tracks, sound effects, or interval music. Likewise, the inputs (channels 5 and 6) can be used for a karaoke system or simply to reproduce a TV in a sports bar with professional sound.
Speaking of official sound: The DAVE 18 G4X has been redesigned and developed from the ground up. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, coloration-free sound that you've never experienced before from a DAVE. For example, the subwoofer has been equipped with a larger voice coil and an optimized bass reflex system to minimize ventilation noise.
Overall, the DAVE 18 G4X is predestined for flexible use. This is helped not least by the selectable mode presets for classic stereo use or a setup with two closely spaced satellites on a T-stand above the subwoofer – the DAVE G4X delivers impressive sound in all configurations. The last preset described above enables interference-free clustering of two satellites through a special M/S split and reproduction of the stereo signal for more headroom and directivity.
LD Systems has also considered all common applications when it comes to accessories. These range from custom-fit bags and a rolling board to the aforementioned T-stand.
The integrated 6-channel mixer allows you to connect and mix different sources – from microphones and high-impedance instruments to line-level signals and wired or wireless players.
INTEGRATED EFFECTS
Channels 1 and 2 feature a 2-band EQ and reverb—each individually adjustable and with variable presets (reverb) for different rooms and environments. This gives both instruments and vocals a full, professional sound.
DIGITAL INPUTS
With digital SPDIF and Bluetooth connections, the DAVE G4X series becomes even more versatile and allows for easy connection of CD and MP3 players, TVs, smartphones and much more.
OPTIMIZED CLUSTER MODE
The selectable mode presets provide optimized sound for every setup: a classic 2.1 setup with two satellites to the left and right of the subwoofer, or an interference-free cluster setup with two closely spaced satellites on a T-stand above the subwoofer. The DAVE G4X can do both at the touch of a button
HOMOGENEOUS RADIATION
The inner values ​​of the DAVE G4X series are impressive: the combination of a new HF compression driver (DAVE 12/15/18), new waveguides for the tweeters and woofers, and more ensures precise and even dispersion without coloration in the peripheral areas.
THE NEW GENERATION OF DAVE
The DAVE G4X series delivers more power and sound – and noticeably less weight. With their new, more robust design, including a durable polyurea coating, the DAVE G4X models 10, 12, and 15 are each several kilograms lighter than the previous series, significantly simplifying transport and handling.
Features
- Active 2.1 PA with 18'' subwoofer and 2x 8'' satellites
- Integrated 6-channel mixer with EQ and reverb
- Digital SPDIF TOSLINK stereo input
- Homogeneous radiation pattern thanks to newly developed waveguide
- Selectable presets depending on the setup (Stereo / Cluster Mode)
- Total power: 4000 W
- Selectable input for microphone, Hi-Z or line
- Wireless streaming via Bluetooth
- DynX® DSP (Gen.2) for distortion-free playback
- Durable polyurea coating for subwoofers and satellites
- Standard connectors: RCA, Combo XLR
- DSP for distortion-free reproduction: DynX® DSP (Gen. 2)
- Aluminum dual-tilt flange: 0° and 5°
- 6-Channel Mixer with EQ and Reverb
- Selectable Input: MICROPHONE, HI-Z or LINE
- Digital stereo input: SPDIF TOSLINK
- Wireless streaming: Bluetooth 5.0
- Presets for different setup modes: Cluster & Stereo Mode
- Dual tweeter design (DAVE 15/18): Increases the output level and improves the directivity Newly developed
- waveguides
- Impact resistant polyurea coating
- Optimized woofer via Klippel system
- BEM-optimized waveguides: Constant directivity, linear frequency response & acoustic loading
- BEM optimized bass reflex ports: Maximum efficiency
Specification
Generally
- Product type: PA complete systems
- type: Active
- Color: Black
- System power (RMS): 2000 W
- System performance (peak): 4000 W
- Max. SPL (Average): 126 dBMax. SPL (Peak): 134 dB
- Frequency response (-10dB): 30 - 20000 Hz
- Crossover frequency: 105 Hz
- Beam angle (H x V): 90° x 30°
- Weight: 63.2 kg
Subwoofer
- Woofer size: 18"
- Magnetic woofer: ferrite
- Brand woofer: Custom-made
- Voice coil woofer: 4 "
- Woofer voice coil (mm): 100 mm
- Housing design: bass reflex
- Housing material: 15mm multiplex, 18mm multiplex
- Housing surface: Polyurea
- Wide subwoofer: 545 mm
- Subwoofer height: 640 mm
- Deep subwoofer: 665 mm
- Subwoofer weight: 43.8 kg
- Features Subwoofer: 3 reverb presets, 6 channel mixer, Bluetooth, cluster / stereo preset, M20, SPDIF
- Carrying handles: 2
Mid/Hi System
- Midrange speaker size: 8 "
- Magnet midrange driver: ferrite
- Brand midrange speaker: Custom-made
- Voice coil midrange: 2 "
- Voice coil midrange: 50 mm
- horn: CD Horn
- Tweeter size: 2 x 0.5"
- Tweeter size: 2 x 12.7 mm
- Magnetic tweeter: Neodym
- Tweeter brand: Custom-made
- Voice coil tweeter: 1 "
- Voice coil tweeter: 25.4 mm
- Impedance Mid/Hi System: 4 ohms
- Speaker connections Mid/Hi system: 1
- Speaker connection Mid/Hi system: Speak on compatible
- Cabinet design Mid/Hi-System: bass reflex
- Carrying handles Mid / Hi System: 1
- Cabinet material Mid/Hi-System: 12mm multiplex, 15mm multiplex
- Cabinet surface Mid/Hi-System: Polyurea
- Wide mid/hi system: 275 mm
- Height Mid/Hi-System: 470 mm
- Deep Mid/Hi System: 260 mm
- Weight Mid/Hi System: 9.7 kg
- Features Mid/Hi System: Dual - Tilt Flange, Midrange Waveguide
Amplifier module (integrated in the subwoofer)
- amplifier: Class D
- Subwoofer amplifier power (RMS): 1000 W
- Amplifier power Mid/Hi (RMS): 2 x 500 W
- Protective circuits: Short circuit, limiter, overload
- cooling: Passive
- Operating temperature: 0°C - 40°C
- Humidity range: < 80% (non-condensing)
- Controls: Input type, input volume, low / high EQ, main volume, power, reverb, stereo / cluster mode, sub / high level
- Display elements: Limit, Power, Protect, Signal
- Power supply connection: IEC
- Operating voltage: 100V AC - 240V AC / 50 - 60 Hz
- Power consumption: 600 W
- Multi inputs: 2 x Switchable (MIC, LINE, HI-Z)
- Multi input connection: Combo XLR
- Line inputs: 2
- Line input connectors: Combo XLR, RCA
- Digital inputs: 2
- Digital input connections: SPDIF
- Speaker outputs: 2
- Speaker output connections: Speak on compatible
- Bluetooth standard: A2D
- Bluetooth audio decoder: SBC
- Bluetooth version: 5.0
- DAVE G4X
UPC
- 4049521672675
