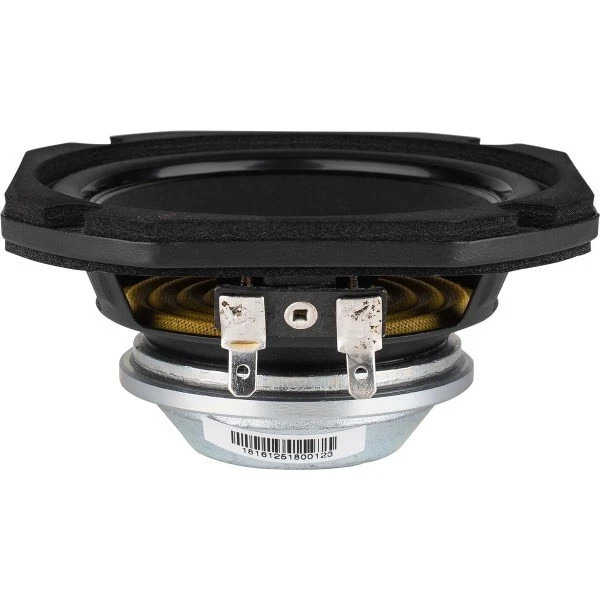

LaVoce FSN041.00 4" Neodymium Full-Range 80-Watts Speaker
- 1 INCH VOICECOIL
- 91 dB/SPL SENSITIVITY
- 80 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED NEODYMIUM MOTOR
- SHORTING COPPER SLEEVE, FOR EXTENDED FREQUENCY RESPONSE
- RESONANCE FREE AND HEAVY DUTY STEEL BASKET DESIGN
GENERAL SPECIFICATIONS
- Nominal diameter mm (in.) 100 (4)
- Nominal impedance Ω 8
- Minimum impedance Ω 6,9
- Program power (1) W 80
- AES Power rating (2) W 40
- Sensitivity (3) dB 91
- Frequency range Hz 110 ÷ 20000
- Voice coil diameter mm (in.) 25 (1)
- Chassis material Steel
- Magnet material Neodymium
- Magnet dimensions OD x ID x h mm(in.) 65 x 32 x 4 (2.6 x 1.26 x 0.16)
- Coil material Copper
- Former material Kapton
- Cone material Water Proof Treated Paper
- Surround material Rubber
- Xmax (4) mm (in.) 2,2 (0.08)
- Xmech (5) mm (in.) 3,2 (0.13)
- Gap height mm (in.) 4 (0.16)
- Voice coil winding height mm (in.) 6,4 (0.25)
SMALL SIGNAL PARAMETERS
- DC resistance Re Ohm 6,1
- Resonance frequency Fs Hz 110
- Moving mass Mms g (oz) 4,5 (0.16)
- Compliance Cms mm/N 0,45
- Force factor BxL N/A 7
- Mechanical Q-factor Qms 3,8
- Electrical Q-factor Qes 0,4
- Total Q-factor Qts 0,36
- Equivalent air volume Vas l (ft3) 1,8 (0.06)
- Voice coil Inductance Le mH 0,04
- Diaphragm area Sd cm2 (in.2) 54 (21)
- Reference efficiency Eta 0 % 0,6
SHIPPING INFORMATION
- Net weight kg (lb.) 0,4 (0.88)
- Multipack size (18) W x D x H mm (in.) 410 x 380 x 165 (16.1 x 15 x 6.5)
- Multipack weight kg (lb.) 9,6 (21.2)
UPC
- 848864057330
