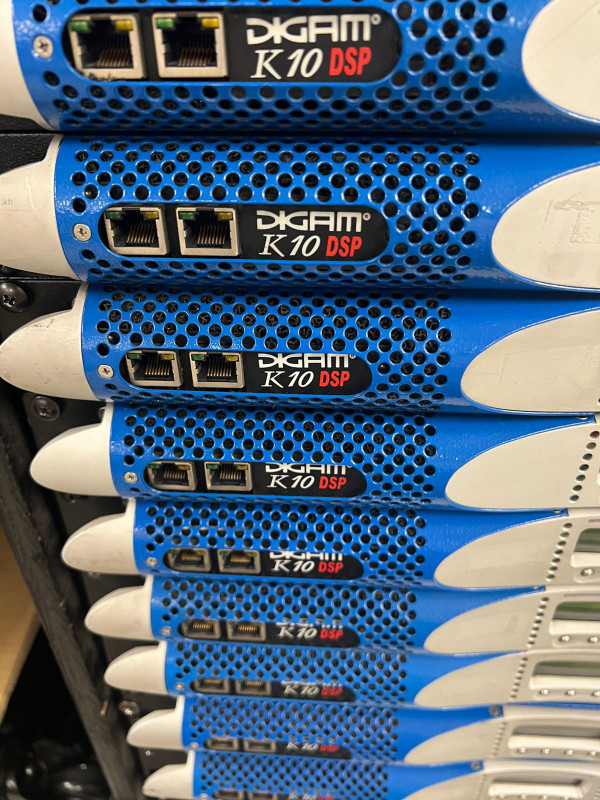

K Series K10 DSP + AESOP mint

Top class amplification covering any power needs in touring applications DATASHEET

The K Series is the   flagship of Powersoft's technologies, ranking in the "Top Class"   amplification of the global pro audio market. Offering various power   ratings in 6 models ranging from 2 x 2400 W/ch @ 4 Ω to 2 x 9000 W/ch @ 2 Ω, still maintaining the 1 unit size, the K series represents a new   milestone of switch mode amplification providing incredible power with   the lowest weight and highest efficiency.

Its sonic performances set a new target for professional audio market. By using the Step-Up procedure it is now possible to increase the output power without having to change amplifier.

K10 DSP + AESOP

2-Channel High Performance Power Amplifier

Overview chart

The K10 is   nothing short of power with 12,000 W from a single rack space chassis.   Capable of driving subwoofers and large-scale FOH systems equally well,   numerous touring sound reinforcement systems are built around racks   exclusively utilizing K10's for all frequency bands, benefitting greatly   from maximum flexibility. Operation with 2Ω loads is not only safely   possible but recommended, reducing the number of amplifiers required in a   system.

In use worldwide by leading touring and event sound companies, K   Series is preferred among the top ranking system designers, sound   engineers, and system techs on the road for making their lives easier,   giving them reliable premier-grade power and headroom in the smallest   possible package size.

Fully digitally controlled and with a serial PC communication port as   standard, the K10 is also available with KDSP board and KAESOP   Ethernet/AES3 interface: the K10 DSP+AESOP amounts to a   fully integrated, highly sophisticated yet easy to use power source   including state-of-the-art sound shaping and system management   capabilities, remotely controllable via Powersoft's Armonía Pro Audio Suite (Interface available for MediaMatrix, Crestron, AMX, Q-SYS control and monitoring systems).Power supply

Features

• Advanced switch-mode worldwide operating power supply technology for high performance and compact size

• Power Factor Correction PFC for extremely low mains consumption and extremely wide mains operating range

• Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers

Protections
Fully protected circuit design with:

• Ac protection: shut down power supply when AC mains voltage is outside operating range

• Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output

• DC protection: protects against infrasonic signal at the outputs

• VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals

• Short circuit protection: protects the amplifier from short circuit   or other stressful events for the output circuits with automatic   protection reset

• Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output

• Thermal protection: output stages operating temperature up to 80 °C (176 °F)

• Temperature controlled continous variable speed fan, front to back airflow

• Temperature forecast with LCD traced historical behaviour

General

• Fixed frequency switchmode output stage for high grade sound accuracy

• Compact size - all models only 1 RU for reduced rack cost and space

• Light weight - for easier racking and shipping: 12 kg (26.5 lbs) according to configuration

• Combo XLR/6.3mm jack Neutrik input connectors with link capability

• AES3 digital input*

Settings

• LCD matrix interactive display

• Comprehensive-user friendly front panel display menu

• Built-in defeatable clip limiters for each channel

• Digital gain-attenuator control

• Defeatable gate selection for each channel

• User selectable gain/sensitivity

• User selectable maximum output power for each channel

• User selectable maximum mains current draw

• Lockable set-up by user selectable access key code

• Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring

Monitoring

• Hardware monitor available for fast local diagnostic

• Load impedance measurement / display for each channel

• Output power measurements / display for each channel

• Mains voltage and current measurements / display

• Downloadable log file of functional fault events with time related trace

• Smart Card settings, parameters and upgrades functionality

Digital Signal Processing*

• Analog Devices SHARC® DSP architecture

• AD/DA converter: dual 24bit @ 96 kHz Tandem® architecture, 127 dB dynamic range, per channel

• Input/output independent equalizers per channel providing PEQ,   raised cosine, shelving IIR filters as well as custom output FIR filters

• Delay up to 1 s for time alignment

• Active DampingControl for cable compensation

• Power limiter (TruePower, RMS voltage, RMS current) + Peak Limiter

Remote management*

• Control and monitoring through Armonía Pro Audio Suite

• Interface available for MediaMatrix, Crestron, AMXcontrol, Q-SYS and monitoring systems

  ---

  General
  Number of channels	2
  Output power	Single channel mode						Bridge mode
  	2 Ω	4 Ω	8 Ω				4Ω	8Ω
  	6000 W	4000 W	2000 W				12000W	8000W
  Max output voltage / current	200 Vpeak       /         125 Apeak						400 Vpeak
  AC Main Power
  Power supply	Universal, regulated switch mode with PFC (Power Factor Correction)
  Nominal power requirement	100-240 V ±10%, 50-60 Hz
  Operating voltage	90 V - 264 V
  Power consuption**	115 V					230 V
  Idle	91 W		1.3 A			84 W		1.17 A
  1/8 of max output power @ 4 Ω	1250 W		12.2 A			1250 W		6.1 A
  1/4 of max output power @ 4 Ω	2500 W		22.6 A			2500 W		11.3 A
  Thermal
  Operating temperature range		0° - 45° C - 32° - 113° F
  Thermal dissipation**	115 V					230 V
  Idle	546 BTU/h		137.6 kcal/h			546 BTU/h		137.6 kcal/h
  1/8 of max output power @ 4 Ω	1244 BTU/h		313.5 kcal/h			1244 BTU/h		313.5 kcal/h
  1/4 of max output power @ 4 Ω	1943 BTU/h		489.6 kcal/h			1943 BTU/h		489.6 kcal/h
  AUDIO
  Gain 26 dB 29 dB 32 dB 35 dB Input sensitivity 6.34 V 4.49 V 3.18 V 2.25 V Max input level 27 dBu 24 dBu 21 dBu 18 dBu Gate -52 dBu -55 dBu -58 dBu -61 dBu
  Frequency response	20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 Ω
  S/N ratio	> 110 dB (20 Hz - 20 kHz, A weighted)
  Crosstalk separation	> 66 dB @ 1kHz
  THD+N	< 0.5% from 1 W to full power (typically < 0.05%)
  IMD	< 0.5% from 1 W to full power (typically < 0.05%)
  Input impedance	10 kΩ balanced
  Slew rate	50 V/µs @ 8Ω, input filter bypassed
  Damping factor	> 5000 @ 20-200 Hz
  DSP
  DSP architecture	Analog Devices SHARC® DSP
  AD Converter	Dual 24 bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD
  DA Converter	Dual 24 bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD
  Internal precision	40 bit floating point
  Firmware	Network upgradable firmware
  Memory/presets	8 MB (RAM) plus 2 MB flash for presets       /         50 stored locally + 150 stored on Smart Card
  Latency	6.0 ms fixed latency architecture
  Input equalizer	Three layers (PEQ, raised cosine, shelving), 32 filters each + group filters, up to 256 filters total
  Output equalizer	16 fully parametric filters per channel, IIR: peaking,   hi/lo-shelving, hi/lo-pass, band-pass, band-stop, all-pass. Custom FIR   up to 384 taps @ 48 or 96 kHz
  Crossover	Butterworth, Linkwitz-Riley, Bessel or arbitrary asimmetric: 6   dB/oct to 48 dB/oct (IIR), linear phase (FIR), hybrid (FIR-IIR)
  Delay	up to 4 s on input section; up to 32 ms per output, sample-by-sample stepping
  Limiters	Power limiter, TruePower, RMS voltage, RMS current + Peak limiter
  Damping control	Active DampingControl
  Front panel
  Indicators and Controllers	2 x LED bar - Signal level and over-temperature protection                             4 x Push-button - Setting operating parameters                             1 x Display - Settings and monitoring                             1 x Power switch -
  Connectors
  AC main	1 x AMP CPC 45A connector - 45 A max (region-specific power cord provided)
  Audio signal input	2 x Combo Jack/XLR-F - Signal input                             1 x Analog/Digital input - Switchable Analog line/AES3 digital input on channel 2
  Auxiliary voltage	1 x 2 pin Phoenix MC 1.5/2-ST-3.81 - External voltage connector (DSP version only)
  Loudspeakers	2 x speakON - Neutrik NL4MD
  Network/data	2 x Rj45 socket - Ethernet + AESOP connection (DSP+AESOP version only)                             2 x Rj45 socket - Ethernet + AESOP connection (DSP+AESOP version only)                             1 x Rj45 socket - RS485 data connection (non-DSP version)
  Rear panel
  Indicators and Controllers	1 x Push-button - Link channel pair                             1 x Push-button - Toggle ANALOG input/AES3 input on selected connector
  Construction
  Dimensions (L x H x W)	483 mm x         44.45 mm x         475 mm         (19.0 in x         1.8 in x         18.7 in)
  Weight	12 kg         (26.5 lb)
