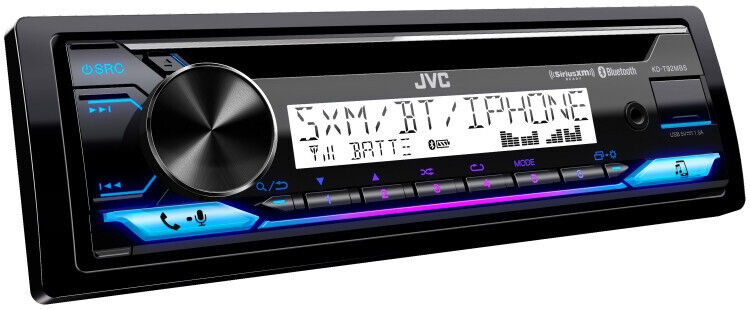

JVC KD-T92MBS 1 DIN Car & Marine CD Receiver with Bluetooth, USB, SiriusXM Ready, Conformal Coated PCB, 13-Band EQ
CD Receiver featuring Bluetooth® / USB / Backlit Display / Conformal Coated PCB / 13-Band EQ / Variable-Color Illumination / JVC Remote App Compatibility
Specifications
- Display Type
- 2-Line VA LCD Display
- LCD Color
- Black
- Key Color
- Variable Color
- Music Sync. Effect
- Yes
- Spanish Text Display Compatible
- Yes
- French Text Display Compatible
- Yes
- Auto Dimmer
- Yes
- Brightness Control
- Yes
Media Playback
- MP3 Compatible with Tag
- CD/USB
- WMA Compatible with Tag
- CD/USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- CD/USB
- FLAC Compatible with Tag
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Ver 4.2, Wired-Mic included)
- Hands Free Call
- Yes (HFP 1.7.1)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes (AVRCP 1.6.1)
- Supported Audio Formats
- AAC / SBC
- 5 BT-Audio Connection [JVC Streaming DJ]
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- iPhone & Android Automatic Pairing
- Yes (iPhone only)
- Low Battery Information
- Yes
Android Control
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- iPod/iPhone Music Playback
- Yes (via USB or Bluetooth(R))
USB
- Position
- Front
- USB Power Supply
- Yes (1.5A)
- Drive Change Mode for Mass Storage Class
- Yes
Inputs and Outputs
- AUX Input
- 1 (Front)
- Line Output Terminals (Pair)
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level
- 4.0V
- Subwoofer Output with Level/Frequency Control
- Yes (Level -50 to +10)
- Subwoofer Output Level
- 4.0V
Tuner
- SiriusXM Ready
- Yes
- Radio Data Broadcast System (RBDS)
- Yes
- Preset Stations
- 18FM + 6AM
- Strong Station Memory (for FM)
- Yes
- Radio Timer
- Yes (once/Daily/Weekly)
- Tuner Preset Memory (for power disconnection)
- Yes
- FM
- Frequency Range (Frequency Step)
- 87.9 - 107.9MHz (200kHz)
- AM
- Frequency Range (Frequency Step)
- 530 - 1,700kHz (10kHz)
Audio
- Maximum Power Output
- 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD)
- 22W x 4
- Subwoofer Direct Connection (Mono Lch)
- Yes
- Yes (13-Band Graphic EQ)
- Yes (11-Preset)
- Bass Boost
- Yes
- Loudness Control
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- K2 Technology
- Yes
- Time Alignment
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
General
- Back Up Memory
- Yes
- Detachable Face Panel
- Yes
- Wired Remote Control
- Ready (RM-RK62M required)
- Steering Remote Control Ready
- Yes
- Remote Control Application
- Yes
- Antirust-coating for Marine
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7-3/16" x 2-1/16" x 6-3/16" (182 x 53 x 156mm)
- Weight
- 2.65 lbs. (1.2kg)
- Unit weight in individual package
- 3.31 lbs. (1.5kg)
