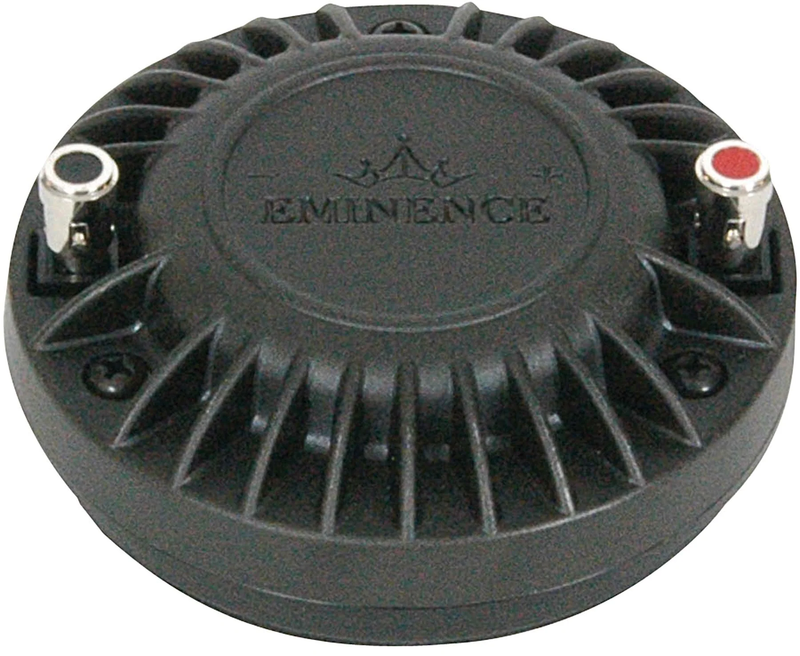

Eminence NSD2005 1" Throat Size HF Device Neodymium Frequency 1500Hz-20kHz 16Ohm
Specification
- Throat Size 1", 25.4mm
- Nominal Impedance* 16Ω
- Minimum Impedance
- Power Rating** 50 W (AES)
- Resonance 0.578kHz
- Usable Frequency Range 1500Hz-20kHz
- Recommended Crossover 12dB/oct @1.5kHz
- Sensitivity*** 109 db
- Magnet Material Neodymium
- Magnet Weight 4.16 oz.
- Voice Coil Diameter 2" 50.8mm
- Voice Coil Former Polyimide
- Diaphragm Material Titanium
- DC Resistance (Re)
Mounting Information
- Overall Diameter 3.87”, 98.3mm
- Driver Volume Displaced 13.63 cu. in.
- Depth 2", 50.8mm
- Weight 1.7 lbs, 0.8 kg
- Mounting Thread N/A
- Mounting Holes Diameter 2X 1/4-20
- Mounting Holes B.C.D. 3 in. 76.2 mm
Materials of Construction
- Voice Coil Former Polyimide
- Diaphragm Material Titanium
- Magnet Composition Neodymium
