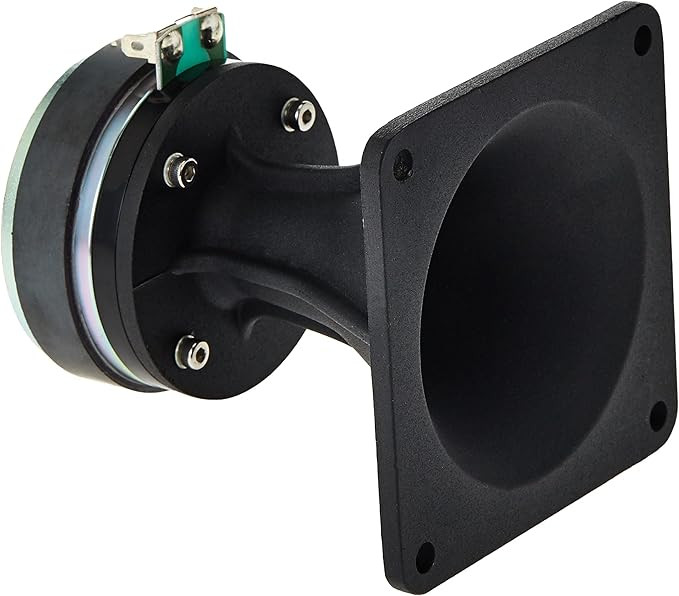

Eminence BGH25 1" Bass Guitar Horn Tweeter 25Watts frequency 2500 Hz – 20 kHz 8Ω
Eminence has designed the 8 ohm BGH25-8 high frequency horn tweeter to add accuracy and detail to bass guitar amps. The small footprint allows easy installation in even the most tightly packed 4 x 10" bass rigs. With 105.2 dB efficiency, this tweeter will easily keep up with even the most efficient bass guitar drivers. In addition, the 60° dispersion pattern will help to eliminate the high frequency beaming associated with larger bass drivers. This tweeter will also make an excellent upgrade over the harsh piezo tweeters found in many existing bass amps.
Key Features
- Small footprint makes it easy to upgrade existing cabinets
- Rugged, non-resonant reinforced aluminum horn
- Smooth frequency response from 2,500 to 20,000 Hz
- 105.2 dB efficient will keep up with the most efficient bass speakers
Specifications
- Power handling: 25 watts RMS (crossover frequency 2.5 kHz, 12 dB/octave)
- Impedance: 8 ohms
- Useable range: 2,500-20,000 Hz
- Fs: 1,300 Hz
- SPL: 105.2 dB 1W/1m
- Recommended minimum crossover: 2,500 Hz
- Mfg. #BGH25-8
- Cutout dimensions: 3.5" diameter.
- Dimensions: 4.2" H x 4.2" W x 4.8" D
Product Details
- Brand Eminence Speaker
- Model BGH25-8
- Part Number 290-5606
- Unit of Measure Each
- Weight 2.45
Product Specifications
- Diaphragm Material Phenolic
- Power Handling (RMS) 25 Watts
- Impedance 8Ω
UPC
- 876358002245
