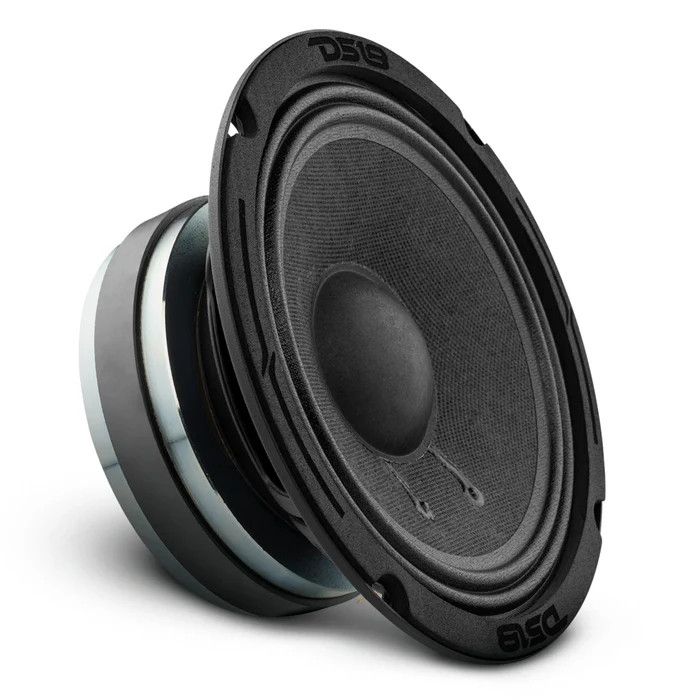

DS18 6PRO300MB-8 Car Audio 6.5" Mid-Bass Loudspeaker 300 Watts, 8-Ohms, 96dB

DS18 6PRO300MB-8 Car Audio 6.5" Mid-Bass Loudspeaker 300 Watts, 8-Ohms, 96dB

DS18

Write a Review
SKU:
DS18 6PRO300MB-8-Ohm N.T
Condition:
New
UPC:
810097262058
Avaliability:
Free Shipping
Order before 2PM (EST) Mon-Fri for Same Day Shipping
Store Pick Up Available We Price Match! Call Us On 718-272-7228
Now: $59.95
Adding to cart… The item has been added
Award-Winning Service
Free Shipping Orders $49+
30 Days
Easy Returns
Guaranteed
Lowest Price
In-House
Experts

Financing Available

DS18 6PRO300MB-8 6.5" MID-BASS LOUDSPEAKER 150 WATTS RMS 8-OHM

Immerse yourself in a world of crisp, powerful sound with the DS18 6PRO300MB-8 speakers! Professional Audio speakers should be engineered to slay their respective frequency ranges, and when it comes to the mid-bass range, the 6PRO300MB-8 reigns supreme!

Featuring a design that prioritizes powerful and punchy bass responses, the 6PRO300MB-8 is capable of delivering crystal-clear sound without any distortion, making it an ideal choice for anyone who likes their music loud and proud!
One of the standout features of these speakers is their impressive frequency response range, which spans from 80Hz to 6KHz. This means that you can expect a solid mid-bass response from the 6PRO300MB-8, essential for reproducing the lower frequencies of your music with crystal-clear clarity and impactful bass notes that truly resonate.
Boasting a 8 ohm impedance, the 6PRO300MB-8 reduces overall power consumption and heat generated by your system. In addition to the 8-ohm configuration, the 6PRO300MB 6.5" Mid-Bass Loudspeaker is also available in a 4-ohm configuration.

Features

  • 6.5" Mid-Bass

  • MAX Power: 300 Watts

  • RMS Power: 150 Watts

  • Impedance: 8 Ohm

  • Ferrite Magnet

  • 96dB

Specifications

Nominal Diameter
  • 6.5" / 165mm
Nominal Impedance
  • 8 Ohm
RMS Power Handling
  • 150W
Maximum Power Handling
  • 300W
Sensitivity (1w/1m)
  • 96 dB
Frequency Response
  • 80Hz-6KHz
Recommended HI Pass Crossover
  • 100Hz
Sold in Pair or Single
  • Single
Grill Included
  • NO
SKU
  • 6PRO300MB-8

MOTOR

Voice Coil Diameter
  • 1.5" / 38.1mm
Voice Coil Former Material
  • Kapton
Winding Material
  • CCAW
Cone Material
  • Paper
Dust Cap Material
  • Paper
Surround Material
  • Cloth
Basket Material
  • Steel
Basket Color/Finish
  • Satin Black
Magnet Material
  • Ferrite
Magnet Weight
  • 20oz
Displacement Volume
  • 0.32L / 0.011ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
  • 3.97L / 0.14ft3
Excursion (one way) Xmax
  • 9.4mm
Free Air Resonance Fs
  • 120Hz
Mechanical Factor Qms
  • 1.76
Electrical Factor Qes
  • 0.49
Total Factor Qts
  • 0.38
Moving Mass Mms
  • 10.85g
Compliance Cms
  • 0.16mm/N
Bl Factor Bl
  • 9.77
Voice Coil Inductance Le
  • 0.2mH
Diaphragm Area Sd
  • 130.7cm2
DC Resistance Re
  • 5.7ohms

MEASUREMENTS

Overall Diameter
  • 6.5" / 166mm
Overall Depth
  • 3.1" / 79mm
Mounting Depth
  • 2.8" / 73mm
Motor Diameter
  • 4.5" / 115mm
Gross Single Unit Weight (lb)
  • 5
Dimensions W x L x H (Inches)
  • 7.25 x 7.25 x 3.5
Quantity of Units in Master Carton
  • 8
Gross Master Carton Weight (lb)
  • 40
M/C Dimensions W x L x H (Inches)
  • 15 x 15 x 7.75
Gross Master Carton Weight (lb)
  • 40
M/C Dimensions W x L x H (Inches)
  • 15 x 15 x 7.75

UPC

  • 810097262058
