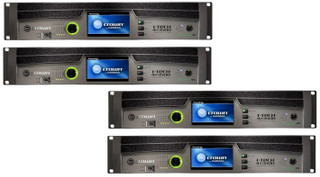

Inside and out, the I-Tech HD is one of the most technologically advanced professional touring amplifiers on the market today.
Building on the decades of innovation, invention, and insight Crown is known for, the I-Tech HD features five new patents – three on the power supply alone – giving you an amp that goes well beyond the expected. At the heart of the new I-Tech HD is the BSS OMNIDRIVEHD™ processing engine. Four times faster than its predecessor and featuring Linear Phase FIR filters and LevelMAX™ limiters, OMNIDRIVEHD provides unmatched clarity and sonically pure signal processing.
Features
Innovation
• BSS OMNIDRIVEHD™ DSP processing with IIR filters and linear phase FIR filters • Covered by five patents • Fan has true tachometer feedback for fan fault protection and precise control over thermal performance, so the amp runs longer and harder than the competition • Includes SLM (Sweep Load Monitoring) with system-level diagnostics
Performance
• Ultra smooth processing by onboard high-definition BSS OMNIDRIVEHD DSP with 24-bit, 192kHz Cirrus Logic SHARC A/D and D/A converters
• LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
• True Ethernet backbone – fast, reliable and scalable • High common-mode rejection eliminates hum and RFI on input cables • 6th-generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
Versatility
• Global Power Supply; universal AC input accepts100-240VAC, 50/60Hz (±15%)
• Front-panel USB connector transfers presets to/from a USB drive to the amp’s DSP
• New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
• The only product available with analog, AES/EBU, CobraNet®, HiQnet™and Ethernet connectivity
• User -definable front panel security feature
• The only tour sound amplifier that provides inputs routable to any output (analog, AES, or CobraNet)
Power
• Professional-grade connectors for all inputs and outputs
• Full power-supply voltage is always available, allowing instantaneous power on demand
• Quality-graded components let you safely drive the amplifier harder
• More total capacitance provides tremendous energy reserves for power bursts
• 200Vrms peak output voltage provides clean transient peaks
Specifications
-
Channels: 2
-
Sensitivity: 1.4Vrms to 7.75Vrms
-
Signal to Noise Ratio > 112dB
-
THD: < 0.1%
-
Intermodulation Distortion: < 0.2%
-
Frequency Response: ± 0.25dB
-
Crosstalk: > 80dB
-
Common Mode Rejection: > 70dB typical
-
Dimensions: 19" x 16.2" x 3.5" (48.3 cm x 41.1 cm x 8.9 cm)
-
Net Weight: 28 lbs (12.7 kgs)
-
Shipping Weight: 36 lbs (16.3 kgs)
-
IEC Power Connector: 20A
