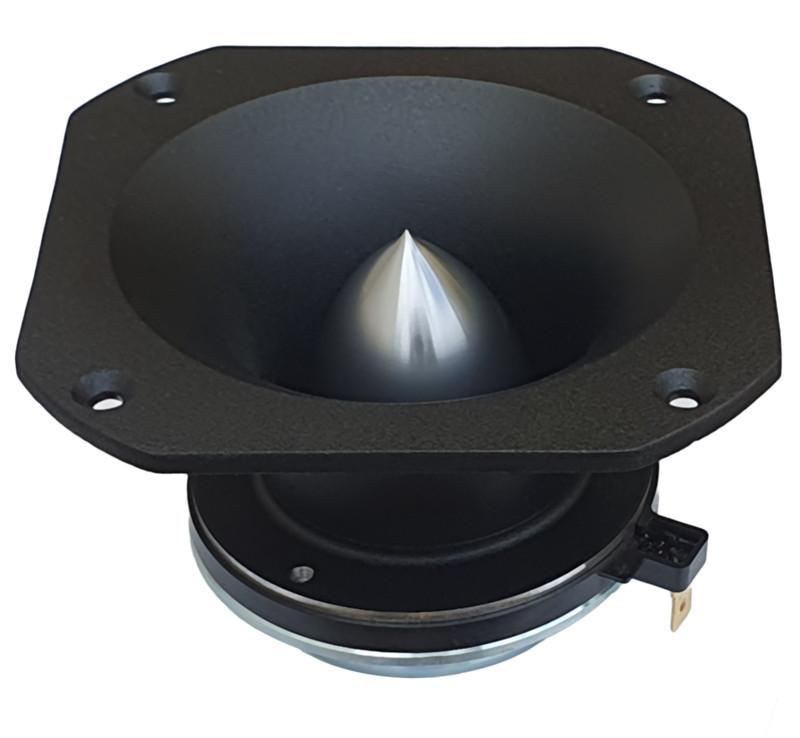

Ciare CT441 NEO Horn Tweeter 1.75" Power Handling 500 Watts 2 kHz - 20 kHz 8 ohm
Voice Coil Diameter 44 mm 1.75 in Continuous Power Handling 500 W
Features
- Program Power 500 W
- Rated impedance 8 Ohm
- Nominal diameter 1,75"- 44 mm
- Sensitivity (2,83V/1m) 110 dB
- Voice coil diameter 1,75 in - 44 mm
- Frequency Range 2000-20000 Hz
SPECIFICATIONS
- Nominal Diameter 1,75"- 44 mm
- Rated Impedance 8 Ohm
- Nominal Power Handling ¹ 250 W
- Program Power ² 500 W
- Sensitivity ³ 110 dB
- Frequency Range ⁴ 2000-20000 Hz
- Minimum Impedance -
- Flange material Aluminum
- Magnet Material Neodymium
- Diaphragm Material Mylar
- Diaphragm Shape Planar
- Surround -
- Voice Coil Diameter 1,75 in - 44 mm
- Voice Coil Winding Material Aluminum
- Voice Coil Former Material -
- Flux Density 1,65 Tm
- Ferrofluid No
- Connection type Faston
- Recommended Crossover Frequency 2 kHz
T/S PARAMETERS
- Resonance frequency Fs 1400 Hz
- DC Resistance Re 4,5 Ohm
- Mechanical Q Factor Qms -
- Electrical Q Factor Qes -
- Total Q Factor Qts -
- Bl Factor Bl -
- Effective Moving Mass Mms -
- Suspension Compliance Cms -
- Effective Piston Diameter D - -
- Effective piston area Sd - -
- Voice Coil Inductance @ 1kHz Le -
MOUNTING AND SHIPPING INFORMATION
- Overall Diameter 112X112 mm -
- Baffle Cutout Diameter 95 mm - 3,74 in
- Flange Thickness 4 mm - 0,16 in
- Total Depth 68 mm - 2,68 in
- Bolt Circle Diameter 116 mm - 4,57 in
- Bolt Holes Quantity and Diameter 4 / 4,5 mm - 0,18 in
- Net Weight 0,8 Kg - 1,76 lb
