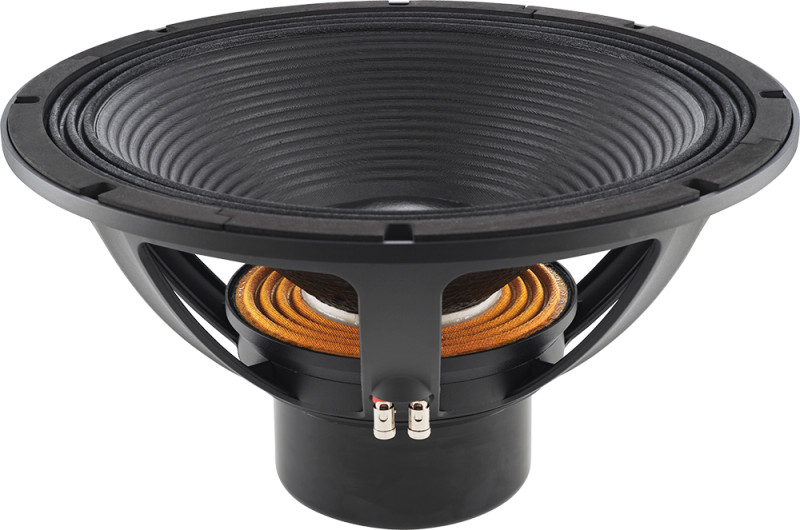

Celestion TSQ1845 18" aluminium chassis neodymium magnet low frequency Speaker
Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band Voice coil typically operates at up to 80°C lower temperature than other leading drivers in this class Polyciliate laminated double suspension provides much greater stability and improved cone displacement symmetry Lead-out wires precision woven into suspension minimizes excess motion and reduces fatigue Double-sided, weatherproof cone coating enhances durability
Features
- Continuous power rating: Defined as 3dB greater than the AES rating.
- Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
- Parameters: Measured after unit subjected to pre-conditioning signal.
- Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
- Xmech: Maximum peak-to-peak excursion before damage.
Specifications
- Nominal diameter457mm / 18in
- Power rating1800W
- Continuous power rating3600W
- Rated impedance4Ω, 8Ω
- Sensitivity96.5dB
- Frequency range30-1,000Hz
- Chassis type Cast aluminium
- Magnet type Neodymium
- Voice coil diameter115mm / 4.5in
- Voice coil material Round copper
- Former material Glass Fibre
- Cone material Glass loaded cellulose, water-resistant coating front & back
- Surround material Triple roll, cloth sealed
- Suspension Dual, polyciliate-laminated
- Gap height (Hg)12mm / 0.46in
- VC winding height (Hvc)36mm / 1.42in
-
Continuous power rating 3600W
-
Sensitivity 96.5dB
-
Voice coil diameter 4.5in
Parameters
- Sd1134cm2 / 175.8in2
- Fs35Hz
- Mms316g / 11.18oz
- Qms8.712
- Qes0.300
- Qts0.290
- Re5.0Ω
- Vas119.3l / 4.21ft3
- BI33.8Tm
- Cms0.065mm/N
- Rms7.99kg/s
- Le (at 1kHz)3.06mH
- Xmax15mm / 0.59in
- Xmech40mm / 1.57in
- Efficiency η01.8%
Mounting Information
- Overall diameter460mm / 18.1in
- Overall depth235mm / 9.5in
- Cut-out diameter416mm / 16.29in
- Mounting hole dimensions7x11mm / 0.28x0.43in
- Number of mounting holes8
- Mounting hole PCD432-441mm / 17.04-17.36in
- Flange & gasket thickness17mm / 0.67in
- Unit weight11.8kg / 26lb
Packed Dimensions & Weight
- Single pack size W x D x H500mm x 500mm x 280mm / 19in x 19in x 11in
- Single pack weight12.3kg / 27.1lb
UPC
- 739894639804
