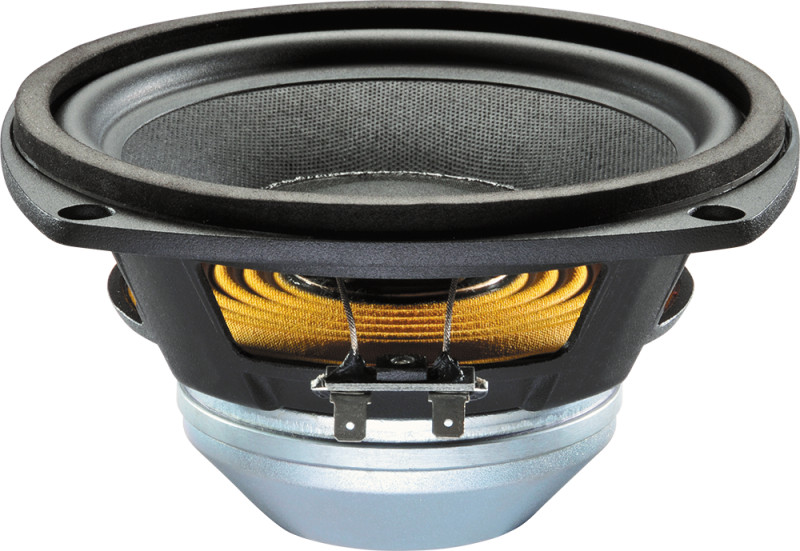

Celestion NTR06-1705D 6.5" Cast aluminium, neodymium magnet mid/bass driver 8Ohm
OEM Only
- Copper sleeved pole to reduce distortion
- Vented magnet assembly for more efficient cooling
Specifications
- Nominal diameter: 165mm / 6.5in
- Power rating: 150W
- Continuous power rating: 300W
- Rated impedance: 8Ω
- Sensitivity: 90dB
- Frequency range: 70-7000Hz
- Chassis type: Cast aluminium
- Magnet type: Neodymium
- Voice coil diameter: 44mm / 1.75in
- Voice coil material: Copper clad aluminium
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Elastomer
- Suspension: Single
- Gap height (Hg): 6mm / 0.24in
- VC winding height (Hvc): 15mm / 0.63in
- Additional impedances: 16Ω
Parameters
- Sd: 153.94cm2 / 23.86in2
- Fs: 49.00Hz
- Mms: 16.58g / 0.58oz
- Qms: 6.123
- Qes: 0.403
- Qts: 0.378
- Re: 5.27Ω
- Vas: 21.42l / 0.76ft3
- BI: 8.17Tm
- Cms: 0.64mm/N
- Rms: 0.83kg/s
- Le (at 1kHz): 0.23mH
- Xmax: 6mm / 0.26in
Mounting Information
- Overall diameter: 189mm / 7.44in (max)
- Overall depth: 87mm / 3.4in
- Cut-out diameter: 150mm / 5.9in
- Mounting hole dimensions: 6.5x5.5mm / 0.26x0.22in
- Number of mounting holes: 4
- Mounting hole PCD: 173.5mm / 6.83in
- Unit weight: 0.95kg / 2.1lb
Packed Dimensions & Weight
- Single pack size W x D x H: 190mm x 190mm x 110mm / 7.5in x 7.5in x 4.3in
- Single pack weight: 1.1kg / 2.4lb
- Multi pack qty: 120
- Multi pack size W x D x H: 1070mm x 850mm x 860mm / 42.1in x 33.5in x 33.9in
- Multi pack weight: 140kg / 308lb
Features
- Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
- Continuous power rating: Defined as 3dB greater than the AES rating.
- Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.
- Parameters: Measured after unit subjected to pre-conditioning signal.
- Xmax: 0.5*(Hvc-Hg) + 0.25*Hg
UPC
- 739894564250
