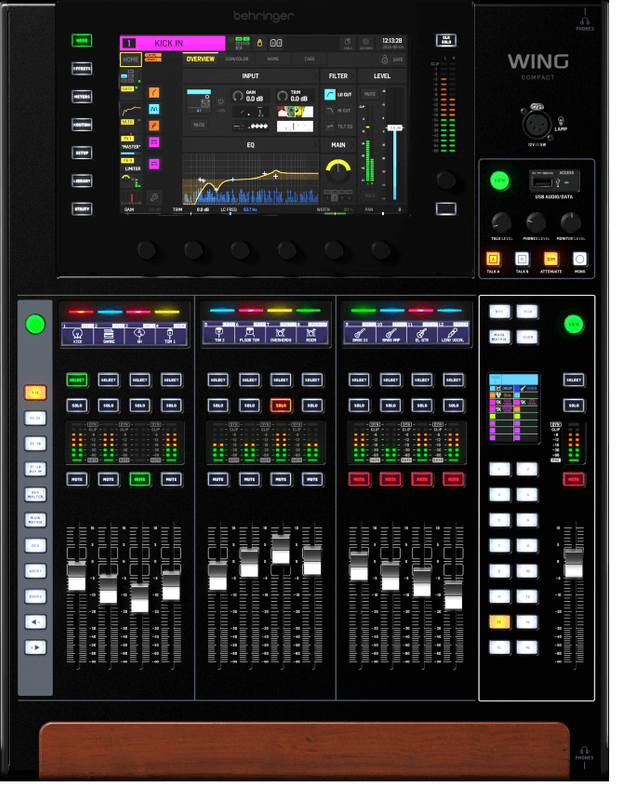

Behringer Wing Compact 48-Channel, 28-Bus Full Stereo Digital Mixing Console
WING COMPACT
48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 13-Fader Control Surface
Highlights
Experience 48 Amazing Flex Channels
Stereo or Mono — You Decide
Set all channel and buses to mono, stereo or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all.
Superior Sound, Seamless Setup
Give musicians an immersive experience of full stereo in-ear monitoring with WING's 28 stereo busses. You can also add stereo insert effects to any channel with just a single click!
Limitless Potential
WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo or M/S format.
Take Full Control
WING COMPACT features a console surface optimized for fast and accurate operation, excelling specifically in monitor mixing applications. Its dedicated master and bus section, with 4 layers of 16 hotkeys clearly labeled on its own color display, is breaking new ground in terms of speed and overview. The large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.
Finally, All the Preamps You Need
24 Midas PRO Preamps On Board
Just like the venerable Midas M and PRO series mixers, WING COMPACT also comes with 24 Midas PRO preamps, delivering the same sweet sound and huge dynamic range.
All the Digital I/O
It’s compact but uncompromising. The WING COMPACT has exactly the same number of digital I/O as the full-size WING: AES50, USB, AoIP, Stage Connect—you name it.
Your "Source" of Audio
WING stores the configuration (stereo/mono/mid-sides), gain, phantom power, along with a name, an icon, color and tags directly to every input. This combination is called a Source. You can easily edit Sources using your iPad while making the connections on stage.
Channels are automatically configured from the connected Source information and are ready to go. This enables quick setups and on-the-fly adjustments, prevents errors, and makes it easier than ever to manage WING's 380+ inputs. It’s like having your own custom toolbox, where everything you need is perfectly organized and ready to use.
Insane I/O
Literally Hundreds of Ins and Outs
382 inputs and 368 outputs on WING COMPACT give you the freedom to adapt to any scenario:
- Switch between artists on the fly
- Manage multiple play out destinations with streaming or video
- Navigate complex live events with distributed or networked I/O
- Use the built-in 64-track recorder for virtual sound checks or live playback
- Connect to the 48-track USB audio interface for perfect integration with your DAW
Analog XLR/TRS Inputs
The same Midas PRO preamps as in the M32 and DL32 series provide great sound with unmatched dynamic range. The XLR/TRS combo connector allows connecting both microphone and line-level cables to the input, often removing the need for DI boxes.
Stage Connect - The Future of XLR
Features 32-channel bidirectional audio transmission with sub-millisecond latency over a standard 3-pin XLR DMX cable or XLR microphone cable for short distances. The Stage Connect host device provides 18W of power and control for client devices, several of which can be used in a chain.
AES50 Super MAC
The 3 ports provide a total of 144 input and 144 output streams from external devices like digital stageboxes, personal monitoring systems, supplemental consoles, and more. The point-to-point connections don't require any network configuration, are rock-solid, and perform at exactly 6-sample latency (0.125 milliseconds).
Analog XLR Outputs
The same Midas PRO outputs as the industry-standard Midas M32 and DL32 series
MIDI
Enhanced automation, control, and synchronization across the console and externally connected devices.
GPIO
Multi-functional and programmable connections for enhanced integration with installed equipment, such as an "on air" lamp in the studio. Programmable GPIO delays additionally allow triggering of sequential events, e.g., automatically powering up amplifier racks after the console is fully booted.
AES/EBU
Stereo in and out digital audio channels at 24-bit/48 kHz.
USB Type A
Record or play up to 4 channels to and from USB drives inserted at the top of the console.
Class-compliant USB Audio/MIDI Interface
Send and receive 48 channels to and from your DAW, and use DAW templates to control your device from WING with MCU support.
Headphone Outputs
2 high-power, low-distortion headphone outputs sharing the Main Out 7/8 signal.
Experience Total Recall
Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you're working on a complex live performance or a musical theater project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need.
CLIP
Integrate playback of mono, stereo or 4-channel .wav files into a SHOW.
FX
Recall any onboard effect settings within WING.
CHAN
Save a full channel state - including effects, bus connections, sends and more, without changing the overall SCENE or SHOW
SNIP
Allows you to create and manage small, specific adjustments to individual channels or groups within your mix
SNAP
Save configurations that can be recalled to program the entire console or specific sections like channels, sources, and processing layers
SHOW
Save and recall combinations of snapshots, snippets, audio clips, channel settings, preferences dependent on scene and many others
Playlist, load settings in parallel (ex: 2nd singer, load snap, load snip)
Update, rearrange without duplicating the entire show
Configure WING to Suit You
Record Up to 64 Channels
The WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.
Swap Out External Cards with Ease
You can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante networking connectivity. We are also planning other expansion cards for MADI and Waves Sound grid, for example.
Plus Another 64x64 Channels via Internal AoIP Modules
The internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission. Our retailers can also help you upgrade your existing WING or order a new WING console with your preferred card pre-installed. We currently have AoIP-Dante and AoIP-WSG (Waves Sound grid) modules available.
Connect More with Less
Transfer 32 channels of 44.1kHz/48kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable.
Need assistance with calculating cable lengths Try our Stage Connect Configurator app.
Features
- 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
- 3 AES50 ports for a total of 144 input and output signals on Super Mac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- Unique “Sends on Fader”-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves Sound Grid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves Sound Grid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- Stage Connect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 2 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, Pro Tools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Software's for Desktop and Mobile
- 19" rack-mountable in 3 positions
Specification
- Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting) -10 Hz - 20 kHz
- Dynamic range, analog in to analog out (typical), XLR / aux - 11 dB / 108 dB
- A/D dynamic range, preamplifier and converter (typical), XLR / aux - 112 dB / 110 dB
- D/A dynamic range, converter and output (typical), XLR / aux - 118 dB / 112 dB
- Crosstalk rejection @ 1 kHz, adjacent channels - 100 dB
- Output level, XLR connectors (nominal / maximum) - +4 dBu / +21 dBu
- Output impedance, XLR connectors (unbalanced / balanced) - 75 Ω / 75 Ω
- Input impedance, TRS connectors (unbalanced / balanced) - 20 kΩ / 40 kΩ
- Non-clip maximum input level, TRS connectors - +16 dBu
- Aux output level, TRS (nominal / maximum) - +4 dBu / +16 dBu
- Aux output impedance, TRS (unbalanced / balanced) - 150 Ω / 300 Ω
- Phones output impedance / maximum output level - 1W Max @ 30 Ohm
- Residual noise level, XLR out 1-16 connectors, unity gain - -97 dBu
- Residual noise level, aux and monitor TRS out connectors - -95 dBu
Displays
- Main screen - 10.1" TFT LCD, 1280 x 800 px, capacitive touch
- Main screen swivel, continuous adjustment - 15°- 60°
- 4-channel group LCD screen with RGB color strip per channel - 320 x 48 monochrome
Controls
- 100 mm motor faders - 12 + 1
- Touch-sensitive rotary controls - 3 + 7 + 11 + 4 + 4
- Custom controls - 8
- Fully assignable rotary controls - 4
- Fully assignable backlit buttons - 8 + 8
- Variable rotary controls / buttons - 4 / 4
Power
- Switch-mode power supply - Auto-ranging 100-240 VAC (50/60 Hz)
- Power consumption - 130 W
Physical
- Standard operating temperature range - 5°C – 40°C (41°F – 104°F)
- Dimensions (HxWxD) - 57.43 x 45.337 x 22.5 cm
- Weight - 15.92 kg
UPC
- 644216660407
