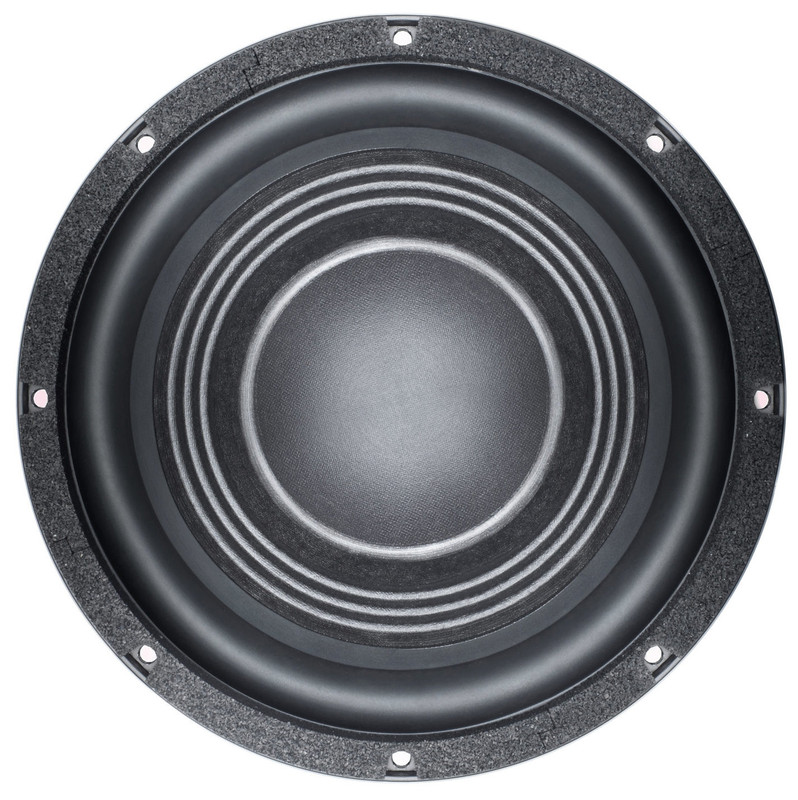

B&C Speakers 12FG100-8 12 inch Subwoofer 91 dB sensitivity Freq 34 Hz - 1000 Hz
Features:
- 2000 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 34 - 1000 Hz response
- 91 dB sensitivity
- Excursion optimized lead wires (woven through spider)
- Ferrite magnet assembly
- Aluminium demodulating ring for very low distortion
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
SPECIFICATIONS:
- Nominal Diameter 320 mm (12 in)
- Nominal Impedance 8 Ω
- Minimum Impedance 5.9 Ω
- Nominal Power Handling 1000 W
- Continuous Power Handling 2000 W
- Sensitivity 91 dB
- Frequency Range 34 Hz - 1000 Hz
- Voice Coil Diameter 100 mm (4 in)
- Winding Material Copper
- Former Material Glass Fibre
- Winding Depth 26.5 mm (1.04 in)
- Magnetic Gap Depth 12 mm (0.47 in)
- Flux Density 1.1 T
- Woofer Cone Treatment TWP Waterproof Both Sides
PARAMETERS:
- Fs 34 Hz
- Re 4.9 Ω
- Qes 0.39
- Qms 5.1
- Qts 0.36
- Vas 49 dm³ (1.73 ft³)
- Sd 522 cm² (80.91 in²)
- η0 0.49 %
- Xmax 10.3 mm
- Xvar 14 mm
- Mms 167.8 g
- Bl 21.4 Tm
- Le 0.96 mH
- EBP 87 Hz
DESIGN:
- Surround Shape Roll
- Cone Shape Radial
- Magnet Material Ferrite
- Spider Double Silicone
- Pole Design T-Pole
- Woofer Cone Treatment TWP Waterproof Both Sides
- Recommended Enclosure 50 dm³ (1.77 ft³)
- Recommended Tuning 34 Hz
MOUNTING AND SHIPPING INFO:
- Overall Diameter 320 mm (12.6 in)
- Bolt Circle Diameter 299 mm (11.77 in)
- Baffle Cutout Diameter 282 mm (11.1 in)
- Depth 150 mm (5.91 in)
- Flange and Gasket Thickness 20 mm (0.81 in)
- Air Volume Occupied by Driver 3 dm³ (0.11 ft³)
- Net Weight 12.55 kg (27.67 lb)
- Shipping Units 1 pcs
- Shipping Weight 13.45 kg (29.65 lb)
- Shipping Box 360x360x200 mm (14.17x14.17x7.87 in)
UPC
- 8059300649640
