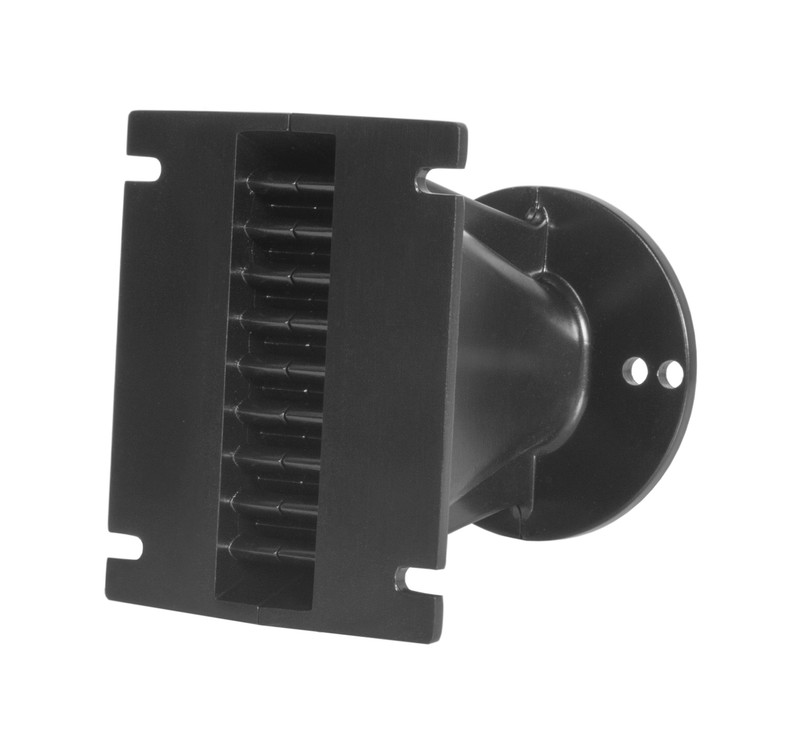

B&C ME102 Horns 1 Inch HIGH Waveguide LINE ARRAY WAVEGUIDE HORN Frequency 1.0kHz
Features
- 1” throat entry \t
- Line Array optimized Waveguide \t
- 140° max horizontal coverage \t
- Vertical coverage depends on configuration \t
- Very good loading down to 1 kHz
Specifications
- Throat Diameter: 25 mm (1 in)
- Cutoff Frequency: 1 kHz
- Design: Line Array Optimized Waveguide
- Nominal Coverage Horizontal: 140 °
- Material: Cast Aluminium
- Dimensions: 110.6x87x111.6 mm (4.35x3.43x4.39 in)
Mounting and Shipping Info
- Other details: Two 6 mm (0.25 in) holes on 76 mm (3 in) diameter - Two 6 mm (0.25 in) holes on 57.2 mm (2.25 in) diameter
- Air Volume Occupied by Driver: 0.15 dm³ (0.01 ft³)
- Shipping Units: 1 pcs
- Shipping Box: 165x165x100 mm (6.50x6.50x3.94 in)
- Baffle Cutout Dimension: 102.4 mm (4.03 in)
- Net Weight: 0.43 kg (0.95 lb)
- Shipping Weight: 0.49 kg (1.08 lb)
UPC
- 8059300649251
