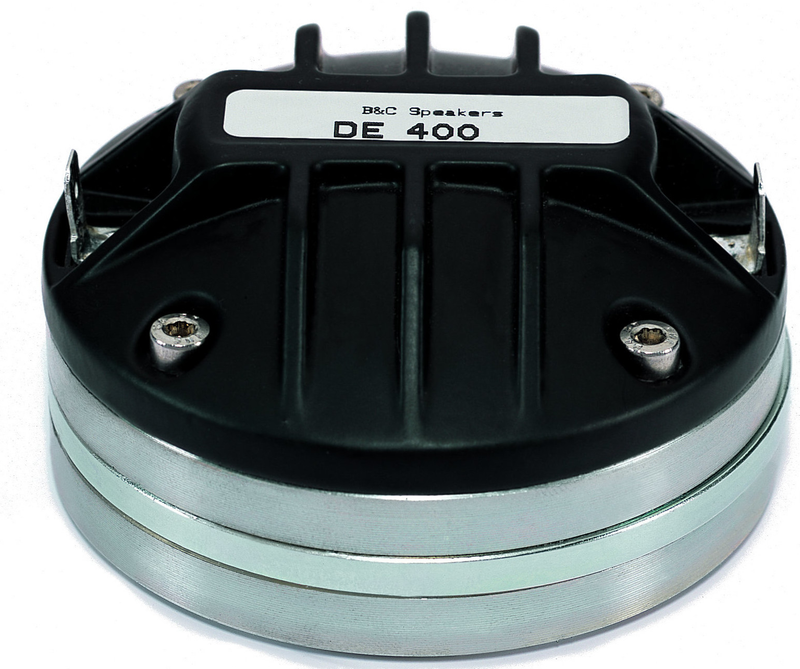

B&C DE400 1" Neodymium Polyimide Compression Driver 1 kHz - 18 kHz 100 Watts 16Ω
Features
- 100 W continuous program power capacity
- 1' horn throat diameter
- 44 mm (1.7 in) aluminium voice coil
- Polyimide diaphragm
- 1200 - 18000 Hz response
- 109 dB sensitivity
- Compact Neodymium magnet assembly
Specifications
- Throat Diameter: 25 mm (1 in)
- Minimum Impedance: 10.4 Ω
- Continuous Power Handling:100 W
- Frequency Range: 1 kHz - 18 kHz
- Voice Coil Diameter: 44 mm (1.7 in)
- Inductance: 0.11 mH
- Diaphragm Material: Polyimide
- Nominal Impedance: 16 Ω
- Nominal Power Handling: 50 W
- Sensitivity: 109 dB
- Recommended Crossover: 1.6 kHz
- Winding Material: Aluminium
- Flux Density: 1.8 T
Mounting and Shipping Info
Two M6 holes 180° on 76 mm (3 in) diameter
- Overall Diameter: 85 mm (3.3 in)
- Net Weight: 0.86 kg (1.88 lb)
- Shipping Weight: 0.89 kg (1.95 lb)
- Depth: 44 mm (1.7 in)
- Shipping Units: 1 pcs
- Shipping Box: 105x105x65 mm (4.13x4.13x2.56 in)
UPC
- 8059300644454
