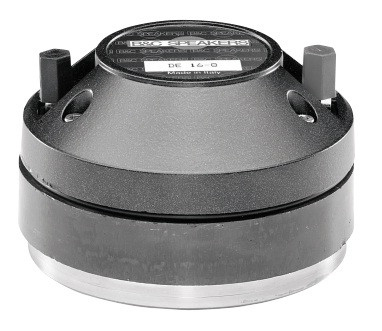

B&C DE16 compression driver 1" Frequency Range 1.5 – 18 kHz Mylar Diaphragm 8Ohm
1" high frequency compression driver. Low mass mylar diaphragm ensures a very flat frequency response and optimized ceramic magnet assembly allows for high sensitivity and low distortion up to 18 kHz.
Specifications
- Throat Diameter 25 mm (1 in)
- Nominal Impedance 8Ω
- Minimum Impedance 7.8Ω
- Power Handling (2200 –20000 Hz) Nominal2 30 W
- Continuous Program3 60 W
- Sensitivity (1W/1m)4 107 dB
- Frequency Range 1.5 – 18 kHz
- Recommended Crossover5 2.2 kHz
- Voice Coil Diameter 44 mm (1.7 in)
- Winding Material Aluminium
- Inductance 0.11 mH
- Diaphragm Material Mylar
- Flux Density 1.5 T
Mounting and Shipping Information
Two M6 holes 180° on 76 mm (3 in) diameter
- Overall Diameter 102 mm (4 in)
- Depth 58 mm (2.3 in)
- Net Weight (1 unit) 1.6 kg (3.5 lb)
- Shipping Weight (8 units) 13.9 kg (30.6 lb)
- Shipping Box (8 units) 220x220x150 mm
(8.7x8.7x5.9 in)
UPC
- 8059300643822
