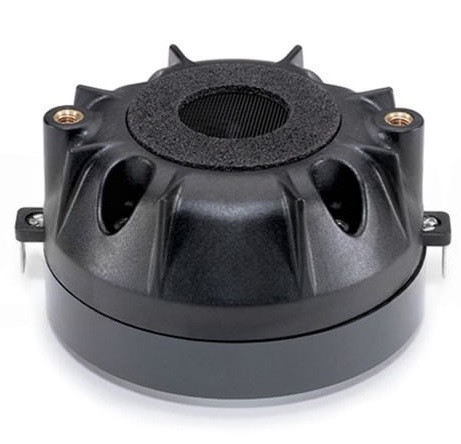

B&C DE10 Compression driver 1" horn throat diameter 1500 - 18000 Hz 40 Watts 16Ω
Compression driver B&C Speakers DE10, 16 ohm, 1.0 inch throat diameter
Features
- 40 W continuous program power capacity
- 1" horn throat diameter
- 25 mm (1 in) aluminium voice coil
- Polyester diaphragm
- 1500 - 18000 Hz response
- 107 dB sensitivity
General
- Product type Compression driver
- Brand B&C Speakers
- Reference DE10
- Product code DRV01016
Informations
- Nominal impedance 16 ohm
- Dimensional category 3.5 inch
- Manufacturer sensitivity 107 dB
- Nominal power handling 110 W
- Bandwidth 1500÷18000 Hz
- Recommended min cutoff frequency 2500 Hz
- Exit dimension 1.0 inch
Fundamental parameters
- Le 0.14 mH
Datas
- Flux density 1.55 T
- Zmin 10.3 ohm
- Weight ~0.8 kg
Dimensions
- Voice coil diameter 1 inch
- Outside diameter 90 mm
- Depth 53 mm
- Driver dimensions mouting holes M5
- Driver mounting system 2 points on diameter 76 mm
Shape & Materials
- Front chape Cylindrical
- Magnet type Ferrite
- Winding material Aluminium
- Diaphragm material Mylar
UPC
- 8059300643709
