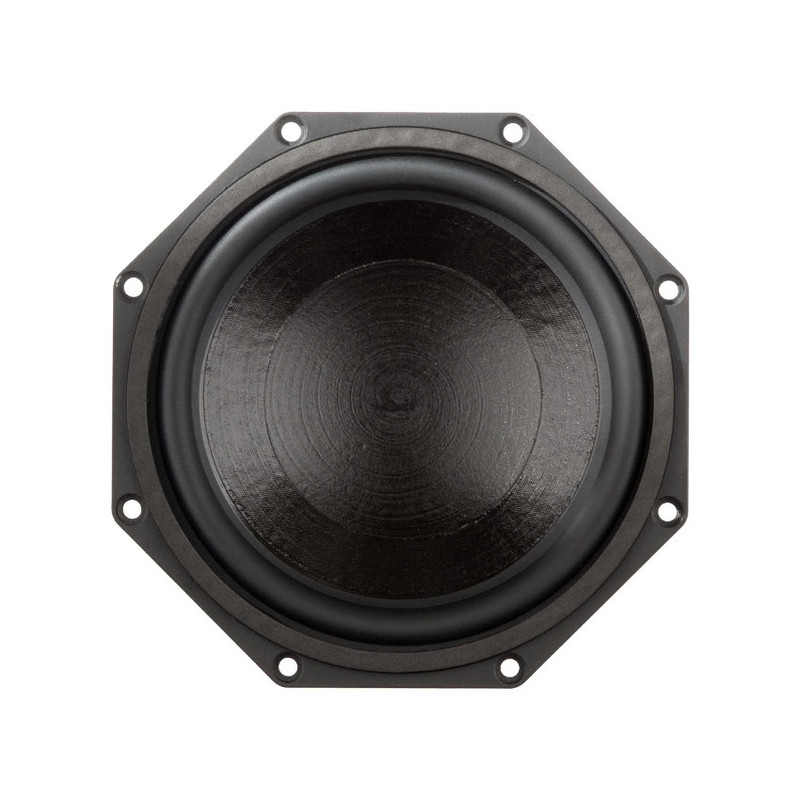

B&C 8FG64 8" Woofer 600 Watts Mid-Bass Speaker Frequency 50 Hz - 3000 Hz 16-Ohm
Features
- 600 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 50 - 3000 Hz response
- 92 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
Specifications
- Nominal Diameter 200 mm (8 in)
- Minimum Impedance 13.5 Ω
- Continuous Power Handling 600 W
- Frequency Range 50 Hz - 3000 Hz
- Winding Material Copper
- Winding Depth 20 mm (0.79 in)
- Flux Density 0.9 T
- Nominal Impedance 16 Ω
- Nominal Power Handling 300 W
- Sensitivity 92 dB
- Voice Coil Diameter 64 mm (2.5 in)
- Former Material Glass Fibre
- Magnetic Gap Depth 10 mm (0.39 in)
- Woofer Cone Treatment WP Waterproof Front Side
Parameters
- Fs 53 Hz
- Qes 0.37
- Qts 0.35
- Sd 220 cm² (34.1 in²)
- Xmax 7.5 mm
- Mms 36 g
- Le 2.9 mH
- Re 11.9 Ω
- Qms 9.33
- Vas 16.9 dm³ (0.6 ft³)
- η0 0.67 %
- Xvar 9.5 mm
- Bl 16.8 Tm
- EBP 143 Hz
Design
- Surround Shape Roll
- Magnet Material Ferrite
- Pole Design T-Pole
- Recommended Enclosure 16 dm³ (0.57 ft³)
- Cone Shape Radial
- Spider Single
- Woofer Cone Treatment WP Waterproof Front Side
- Recommended Tuning 50 Hz
Mounting and Shipping Info
- Overall Diameter 225 mm (8.86 in)
- Baffle Cutout Diameter 187 mm (7.4 in)
- Flange and Gasket Thickness 9 mm (0.37 in)
- Net Weight 4 kg (8.82 lb)
- Shipping Weight 4.45 kg (9.81 lb)
- Bolt Circle Diameter 210 mm (8.3 in)
- Depth 100 mm (3.94 in)
- Air Volume Occupied by Driver 1.5 dm³ (0.05 ft³)
- Shipping Units 1 pcs
- Shipping Box 255x255x150 mm (10.04x10.04x5.91 in)
UPC
- 8059300640548
