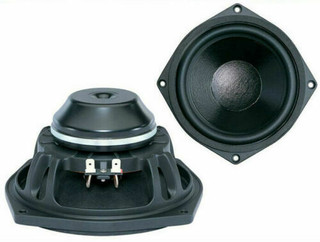

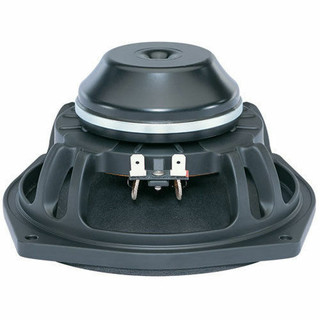

B&C 6NDL38 6-1/2" Designed For Woofer & Midrange Applications 300Watts 8-Ohm
Key Features
-
38 mm (1.5 in) copper voice coil
-
70 - 6000 Hz response
-
92 dB sensitivity
-
Neodymium magnet allows a very light yet powerful motor assembly
-
Aluminium demodulating ring allows a very low distortion figure
-
300 W continuous program power capacity
Specifications
-
Nominal Diameter 170 mm (6.5 in)
-
Nominal Impedance 8 Ohm
-
Minimum Impedance 6.0 Ohm
-
Nominal Power Handling 150 W
-
Continuous Power Handling 300 W
-
Sensitivity3 92.0 dB
-
Frequency Range 70 - 6000 Hz
-
Voice Coil Diameter 38 mm (1.5 in)
-
Winding Material Copper
-
Former Material Kapton
-
Winding Depth 12.0 mm (0.5 in)
-
Magnetic Gap Depth 6
Parameters
-
Resonance Frequency 72 Hz
-
Re 5.2
-
Qes 0.44
-
Qms 11.5
-
Qts 0.42
-
Vas 7.0 dm3 (0.25 ft3)
-
Sd 132.0 cm2 (20.5 in2)
-
0.6 %
-
Xmax 6.0 mm
-
Xvar 5.5 mm
-
Mms 17.0 g
-
Bl 9.5 Txm
-
Le 0.6 mH
-
EBP 163 Hz
Mounting And Shipping Info
-
Overall Diameter 187 mm (7.4 in)
-
Bolt Circle Diameter 172 mm (6.7 in)
-
Baffle Cutout Diameter 145.0 mm (5.7 in)
-
Depth 85 mm (3.3 in)
-
Flange and Gasket Thickness 11 mm (0.4 in)
-
Air Volume Occupied by Driver 0.63 dm3 (0.02 ft3)
-
Net Weight 1.2 kg (2.6 lb)
-
Shipping Weight 1.4 kg (3.09 lb)
-
Shipping Box 210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
-
RCK06NDL388
