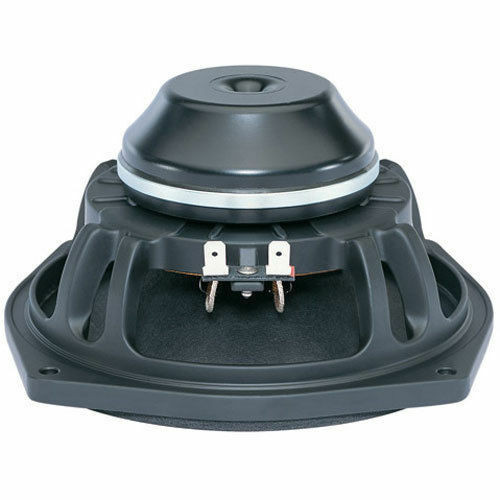

B&C 6NDL38 4-ohm 6.5 inch 300W Neodymium Mid-Range Mid-Bass Speaker 91dB & 70-6000Hz

B&C 6NDL38 4-ohm 6.5 inch 300 Watts Mid-Range Mid-Bass Speaker 91 dB 70-6000 Hz

• 38 mm (1.5 in) copper voice coil

• 70 - 6000 Hz response

• 91 dB sensitivity

• Neodymium magnet allows a very light yet

• powerful motor assembly

• Aluminium demodulating ring allows a very low distortion figure

• 300 W continuous program power capacity

• Shape Non cylindrical

• Product type Cone driver

• Brand B&C Speakers

• Frequency coverage type Midbass, Midrange, High midrange

• Dimensional category 6.5 inch, 7.5 inch

• Front chape Non cylindrical

• Magnet type Neodymium

• Basket masterial Aluminium

• Nominal impedance 4 ohm

• Zmin 3.5 ohm

• Nominal power handling 150 W

• Max power handling 300 W

• Sensitivity 91 dB

• Frequency response 70-5000 Hz

• Voice coil diameter 1.5 inch

• Winding material Copper

• Voice coil former Kapton

• Winding depth 12 mm

• Gap height 6 mm

• Total external dimensions 162 mm / 186.5 mm

• Mounting diametre 145 mm

• Depth after front 74 mm

• Front thickness 11 mm

• Weight 1.2 kg

• Fs 69 Hz

• Re 3.1 ohm

• Qes 0.4

• Qms 10.05

• Qts 0.39

• Vas 7.1 L

• Sd 132 cm²

• Efficiency 0.55 %

• Xmax 6 mm

• Xvar 5.5 mm

• Mms 18 gr

• BL 7.8 T.m

• Le 0.4 mH

• EBP 173

• Cone shape Exponential

• Surround material Rubber

• Surround shape One roll

• Shipping weight 1.5 kg
