B&C 21SW115-8 21" Professional Neodymium Subwoofer 3400W 8-Ohm 4.5" voice coil
Features
-
3400 W continuous program power capacity
-
116 mm (4.5 in) split winding copper voice coil
-
30 - 1000 Hz response
-
97 dB sensitivity
-
60 mm peak-to-peak excursion before damage
-
Neodymium magnet allows a very high force factor and linear excursion
-
Double silicone spider with optimized compliance
-
Ventilated voice coil gap for reduced power compression
-
Aluminium demodulating ring for very low distortion
Specifications
-
Nominal Diameter 530 mm (21.0 in)
-
Nominal Impedance 8 Ohm
-
Minimum Impedance 6.2 Ohm
-
Nominal Power Handling 1700 W
-
Continuous Power Handling 3400 W
-
Sensitivity 97.0 dB
-
Frequency Range 30 - 1000 Hz
-
Voice Coil Diameter 116 mm (4.5 in)
-
Winding Material Copper
-
Former Material Glass Fibre
-
Winding Depth 34.0 mm (1.34 in)
-
Magnetic Gap Depth 14.0 mm (0.55 in)
-
Flux Density 1.15 T
Design
-
Surround Shape Triple Roll
-
Cone Shape Radial
-
Magnet Material Neodymium Inside Slug
-
Spider Double Silicone
-
Pole Design T-Pole
-
Woofer Cone Treatment TWP Waterproof Both Sides
-
Recommended Enclosure 250.0 dm3 (8.83 ft3)
-
Recommended Tuning 32 Hz
- Resonance Frequency30 Hz
- Re5.4
- Qes0.39
- Qms10.9
- Qts0.37
- Vas318.0 dm3 (11.23 ft3)
- Sd1680.0 cm2 (260.4 in2)
- ??2.2 %
- Xmax14.0 mm
- Xvar16.0 mm
- Mms342.0 g
- Bl30.1 Txm
- Le2.1 mH
- EBP76 Hz
Mounting and Shipping Info
- Overall Diameter547 mm (21.5 in)
- Bolt Circle Diameter527 mm (20.7 in)
- Baffle Cutout Diameter503.0 mm (19.8 in)
- Depth249 mm (9.8 in)
- Flange and Gasket Thickness14 mm (0.53 in)
- Air Volume Occupied by Driver15.0 dm3 (0.53 ft3)
- Net Weight14.0 kg (30.8 lb)
- Shipping Units1
- Shipping Weight16.3 kg (35.94 lb)
- Shipping Box570x570x320 mm (22.44x22.44x12.60 in)

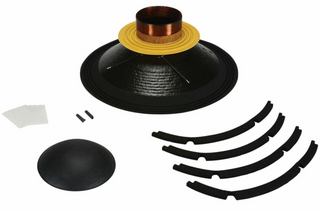

Service Kit
- RCK21SW1158
