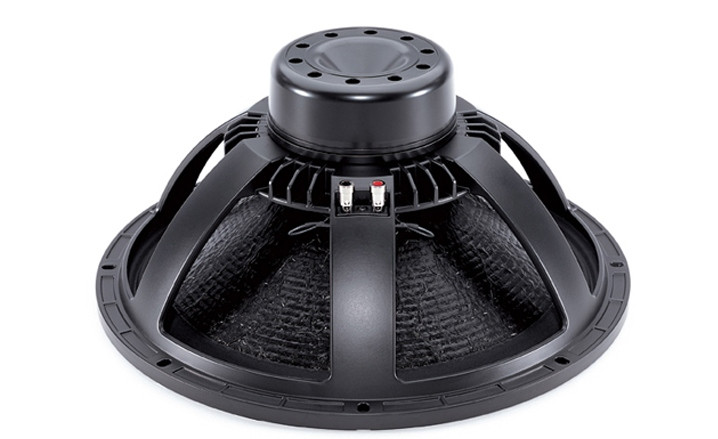

B&C 18NW100-4 ohm 18 inch Subwoofer 2400 W 95 dB sensitivity 35 Hz-1000 Hz Freq
Features:
- 2400 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 35 - 1000 Hz response
- 95 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications:
- Nominal Diameter 460 mm (18 in)
- Nominal Impedance 4 Ω
- Minimum Impedance 4.5 Ω
- Nominal Power Handling 1199 W
- Sensitivity 95 dB
- Frequency Range 35 Hz - 1000 Hz
- Voice Coil Diameter 100 mm (4 in)
- Winding Material Copper
- Former Material Glass Fibre
- Winding Depth 25 mm (1 in)
- Magnetic Gap Depth 12 mm (0.5 in)
- Flux Density 1.2 T
- Woofer Cone Treatment TWP Waterproof Both Sides
- Continuous Power Handling 2400 W
PARAMETERS:
- Fs 30 Hz
- Re 3.7 Ω
- Qes 0.28
- Qms 6.2
- Qts 0.27
- Vas 203.5 dm³ (7.19 ft³)
- Sd 1210 cm² (187.6 in²)
- η0 1.95 %
- Xmax 9 mm
- Xvar 11 mm
- Mms 244 g
- Bl 24.7 Tm
- Le 1.7 mH
- EBP 107 Hz
DESIGN:
- Surround Shape Triple Roll
- Cone Shape Radial
- Magnet Material Neodymium Inside Slug
- Spider Double Silicone
- Pole Design T-Pol
- Recommended Enclosure 160 dm³ (5.65 ft³)
- Recommended Tuning 37 Hz
- Woofer Cone Treatment TWP Waterproof Both Sides
MOUNTING AND SHIPPING INFO:
- Overall Diameter 460 mm (18 in)
- Bolt Circle Diameter 440 mm (17.3 in)
- Baffle Cutout Diameter 422 mm (16.6 in)
- Depth 209 mm (8.2 in)
- Flange and Gasket Thickness 16 mm (0.62 in)
- Air Volume Occupied by Driver 8.5 dm³ (0.3 ft³)
- Net Weight 9.05 kg (19.95 lb)
- Shipping Weight 10.65 kg (23.48 lb)
- Shipping Box 500x495x275 mm (19.69x19.49x10.83 in)
UPC
8059300648865
