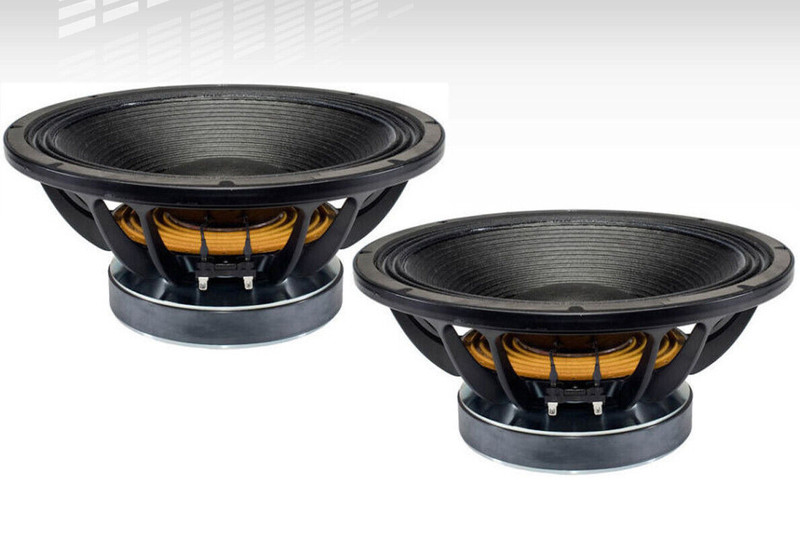

B&C 15TBW100-4 15" Pro Woofer 3000W 4-Ohm Frequency range: 40 - 1500 Hz (PAIR)

B&C 15TBW100-4 15" Professional Woofer 3000W 4-Ohm Frequency range: 40 - 1500 Hz

• 3000 W Continuous Power Handling

• 4.0 in (100 mm) Voice Coil Diameter

• Ferrite Magnet Material

Key Features

• 3000 W continuous program power capacity

• 100 mm (4 in) split winding copper voice coil

• 40 - 1500 Hz response

• 96 dB sensitivity

• 57 mm peak-to-peak excursion before damage

• Double silicone spider with optimized compliance

• Ventilated voice coil gap for reduced power compression

• Aluminium demodulating ring for very low distortion

Specifications

• Nominal Diameter 380 mm (15.0 in)

• Nominal Impedance 4 Ohm


• Minimum Impedance 6.7 Ohm


• Nominal Power Handling 1500 W

• Continuous Power Handling 3000 W

• Sensitivity 96.0 dB

• Frequency Range 40 - 1500 Hz

• Voice Coil Diameter 100 mm (4.0 in)

• Winding Material Copper

• Former Material Glass Fibre

• Winding Depth 31.0 mm (1.22 in)

• Magnetic Gap Depth 15.0 mm (0.59 in)

• Flux Density 1.15 T

Parameters

• Resonance Frequency 39 Hz

• Re 5.3 Ohm


• Qes 0.33

• Qms 4.4

• Qts 0.31

• Vas 96.0 dm3 (3.39 ft3)

• Sd 855.0 cm2 (132.5 in2)

• 1.6 %

• Xmax 12.0 mm

• Xvar 13.5 mm

• Mms 181.0 g

• Bl 26.4 Txm

• Le 2.2 mH

• EBP 118 Hz

Mounting And Shipping Info

• Overall Diameter 393 mm (15.5 in)

• Bolt Circle Diameter 374 mm (14.7 in)

• Baffle Cutout Diameter 354.0 mm (13.9 in)

• Depth 191 mm (7.52 in)

• Flange and Gasket Thickness 14 mm (0.55 in)

• Air Volume Occupied by Driver 6.0 dm3 (0.21 ft3)

• Net Weight 14.3 kg (31.5 lb)

• Shipping Units 1

• Shipping Weight 15.6 kg (34.39 lb)

• Shipping Box 425x425x224 mm (16.73x16.73x8.82 in)

Service Kit

• RCK15TBW1004
