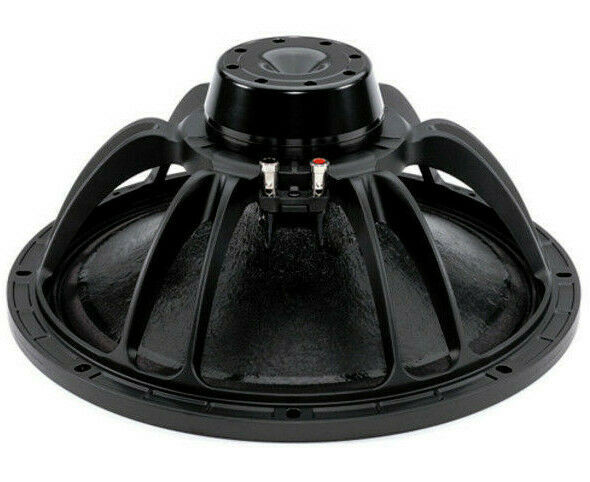

B&C 15NDL76 Pro 15" Neodymium 1000W Woofer 8-Ohm (only 10-lbs)

B&C 15NDL76 Pro 15" Neodymium 1000W Woofer 8-Ohm (only 10-lbs) Authorized Dealer

• 1000 W Continuous Power Handling

• 3.0 in (76 mm) Voice Coil Diameter

• Neodymium Inside Slug Magnet Material

Key Features

• 1000 W continuous program power capacity

• 76 mm (3 in) copper voice coil

• 40 - 2000 Hz response

• 99.5 dB sensitivity

• Neodymium magnet allows a very light yet powerful motor assembly

• Ventilated voice coil gap for reduced power compression

Specifications

• Nominal Diameter 380 mm (15.0 in)

• Nominal Impedance 8 Ohm


• Minimum Impedance 6.7 Ohm


• Nominal Power Handling 500 W

• Continuous Power Handling 1000 W

• Sensitivity 99.5 dB

• Frequency Range 40 - 2000 Hz

• Voice Coil Diameter 76 mm (3.0 in)

• Winding Material Copper

• Former Material Glass Fibre

• Winding Depth 18.0 mm (0.68 in)

• Magnetic Gap Depth 11.0 mm (0.4 in)

• Flux Density 1.25 T

Design

• Cone Shape Exponential

• Magnet Material Neodymium Inside Slug

• Spider Single

• Pole DesignStraight Pole

• Woofer Cone Treatment TWP Waterproof Both Sides

• Recommended Enclosure 100.0 dm3 (3.53 ft3)

• Recommended Tuning47 Hz

Parameters

• Resonance Frequency37 Hz

• Re5.3


• Qes0.24

• Qms4.5

• Qts0.22

• Vas195.0 dm3 (6.8 ft3)

• Sd855.0 cm2 (132.5 in2)

• 4.1 %

• Xmax7.0 mm

• Xvar9.0 mm

• Mms96.0 g

• Bl22.5 Txm

• Le1.5 mH

• EBP154 Hz

Mounting And Shipping Info

• Overall Diameter393 mm (15.5 in)

• Bolt Circle Diameter374 mm (14.7 in)

• Baffle Cutout Diameter354.0 mm (13.9 in)

• Depth171 mm (6.7 in)

• Flange and Gasket Thickness16 mm (0.62 in)

• Air Volume Occupied by Driver3.5 dm3 (0.12 ft3)

• Net Weight4.6 kg (10.1 lb)

• Shipping Units1

• Shipping Weight5.9 kg (13.0 lb)

• Shipping Box425x425x224 mm (16.73x16.73x8.82 in)

Service Kit

• RCK15NDL768
