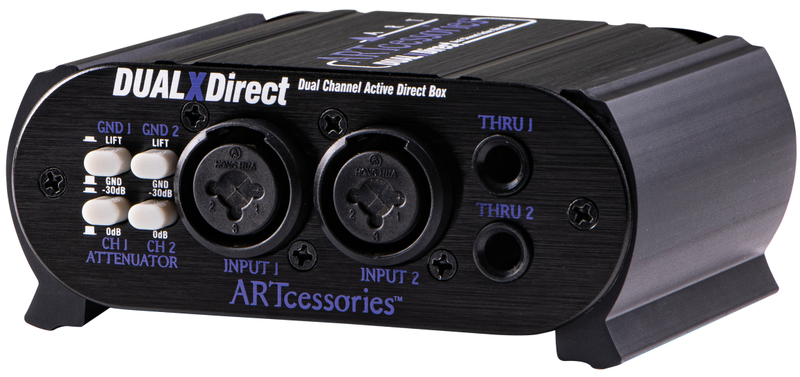

ART Dual X Direct 2-Channel Active Direct Box Balanced XLR Outputs BLK (MINT)
The DualXDirect is a 2-channel active direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.
Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage. Unique among ART DI boxes, XDirect models feature both 1/4" TRS and XLR inputs for expanded connectivity.
Front panel switches engage 30 dB of attenuation to accommodate high-level signals, and a ground lift to reduce hum.
The active circuitry can operate on phantom power or for over 100 hours on a new 9-volt battery. Active DIs are often a great match for sources like guitars and basses with passive pickups, or acoustic guitars with piezo pickups and no preamp.
Simple and durable, the DualXDirect is a compact DI in a rugged aluminum enclosure with two independent channels and a streamlined feature set.
Features
- 2 Independent Channels
- 1/4" TRS / XLR Combo Inputs
- 1/4" Thru Connectors
- Balanced XLR Outputs
- Switchable 30dB Attenuation and Ground Lift per Channel
- Powered by 9-Volt Battery (100+ Hours) or Phantom Power
Specifications
| Active or Passive | Active |
| Inputs | 2x 1/4" TRS / XLR Combo Jacks |
| Outputs | 2x XLR 2x 1/4" TRS Thru |
| Input Impedance | 470 kΩ |
| Output Impedance | <600Ω |
| Maximum Input Level | +4 dBu above Attenuation Setting |
| Maximum Output Level | +6 dBu (Battery) +14 dBu (Phantom) |
| Controls | Attenuator (0 dB, -30 dB) Ground Lift (All per Chanel) |
| Frequency Response | 10 Hz - 100 kHz, +/- 0.5 dB @ 0 dBu |
| Dynamic Range | >100 dB (Typical) |
| Total Harmonic Distortion | <.05% (Typical) |
| Channel Separation | >80 dB (Typical) |
| Power Requirements | 9V, 7.5 mA (Battery, Alkaline Recommended) 18V - 48V, 6.5 mA (Phantom, per Channel) |
| Battery Life | 100+ Hours |
| Dimensions (HWD) | 1.85" x 4.6" x 3.9" 4.7 cm x 11.7 cm x 9.9 cm |
| Weight | 0.84 lbs / 380 g |
UPC
- 840402019145
