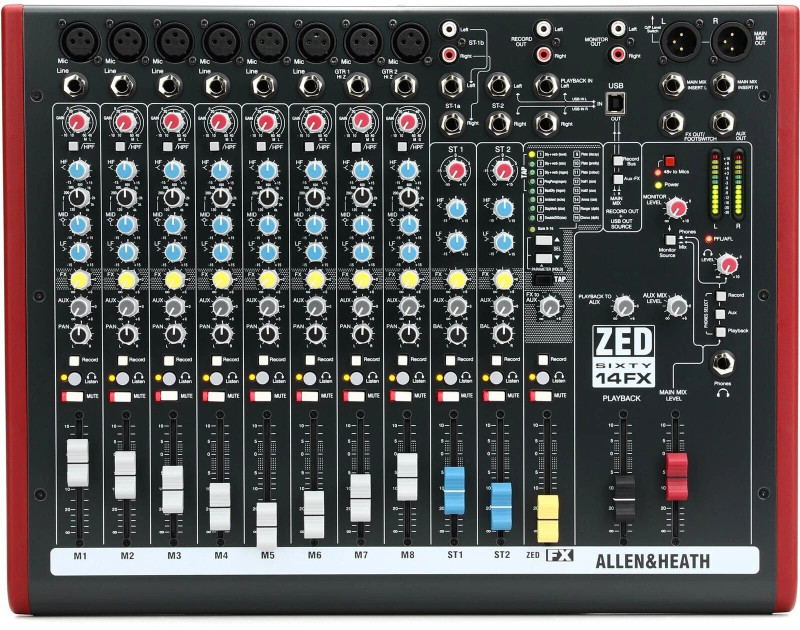

Live or in the studio, the Allen & Heath ZED-60/14FX is a compact, portable mixer that is ideal for small bands. (OPEN BOX)
This mixer is a guitarist's dream. Two of the 8 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.
ZED60-14FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.
Most important of all, ZED60-14FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.
Features:
- 8 mic/line inputs, 2 with Class A FET high impedance
- 60mm professional quality faders
- Responsive 3-band, swept mid EQ with MusiQ
- Configurable USB stereo audio in/out
- 2 stereo inputs
- Separate 2-track record outputs
- 16 Internal Effects
- XLR main stereo outputs with inserts
- Comprehensive monitoring
- 48V microphone phantom power
- DI level switching with Gain Boost
- Neutrik XLRs and 1/4 inch jacks
Specifications:
Operating Levels
- Mono channel (XLR) Input: -10 to 60dBu for nominal (+11dBu in max)
- Mono channel Line Input (Jack socket): +10 to 40dBu (+31dBu maximum)
- Stereo Input (Jack or phono sockets): 0dBu nominal (control = Off to+15dB)
- L/R Outputs ( XLR) Normal/DI out: 0dBu/-30dBu +21dBu/-9dBu maximum.
- Aux & FX Outputs (Jack sockets): 0dBu nominal. +21dBu maximum.
- Record & Monitor Outputs (phono sockets): 0dBu nominal. +21dBu maximum.
Frequency Response
- Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 10Hz to 30kHz
- Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 25kHz
- Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
THD+N
- Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out: 0.002%
- Mic in to Mix L/R Out, 30dB gain 1kHz: 0.01%
- Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.003%
- Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.002%
- Gtr Input to Mix L/R Out, 0dBu, Boost OUT: 0.015%
- Gtr Input to Mix L/R Out, 0dBu, Boost IN: 2% Second Harmonic
Headroom
- Analog Headroom from nominal (0Vu): 21dB
- USB in & out headroom from nominal (0Vu): 14dB
USB Audio CODEC (Coder/Decoder)
- USB Audio In/Out: USB 1.1 compliant 16bit.
- Sample Rate: 32, 44.1, or 48 kHz
