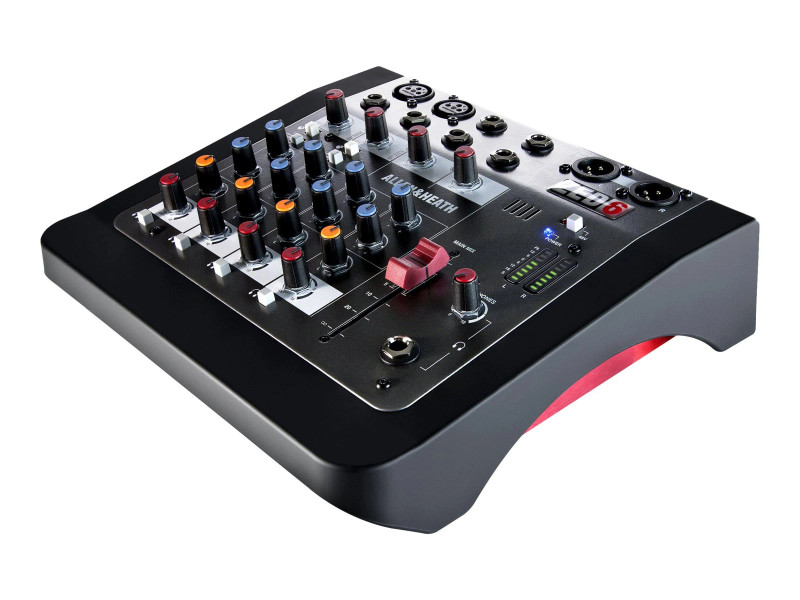

Allen & Heath ZED-6 Compact Analog Mixer 4-channel 6-input 2-band EQ (MINT) BLK

Allen & Heath ZED-6 Compact Analog Mixer 4-channel 6-input 2-band EQ (MINT) BLK

The Allen & Heath ZED-6 6-channel mixer offers great sound quality for small-format mixing applications. Two mono channels with acclaimed GSPre preamps are ready to accept mics (dynamic or condenser), instruments, or line-level sources. Two stereo channels are perfect for synths, drum machines, and other line-level sources. All this in a compact yet rugged design, with rotary controls secured to the front panel with a steel nut for maximum durability. For small PA and studio applications from schools and churches to corporate settings, the Allen & Heath ZED-6 is a strong mixing solution.

Features:

• Rugged compact mixer for small-format applications
• 2 mono channels with GSPre mic preamps and instrument/line-level inputs
• Low-cut filters to reduce rumble and other unwanted low frequencies
• Effective sound shaping from HF and LF equalizer controls
• Channels can be individually assigned to the headphone mix
• XLR outputs for studio monitors or powered PA speakers
• Smooth 60mm fader for controlling your main mix
• Rotary controls are secured to the faceplate with steel nuts for maximum durability

Tech Specs

• Type: Analog mixer
• Channels: 6
• Faders: 1 x 60mm Master Mix fader
• Inputs - Mic Preamps: 2
• Phantom Power: 2
• Inputs - Line: 2 x 1/4" (line/instrument)
• Inputs - Other: 4 x 1/4" TRS (stereo paired)
• Outputs - Main: 2 x XLR (left, right)
• Headphones: 1 x 1/4"
• EQ Bands: 2-band EQ
• Height: 3.5"
• Width: 9.8"
• Depth: 9.3"
• Weight: 2.8 lbs.
• Manufacturer Part Number: AH-ZED6

UPC

• 6938122242951
