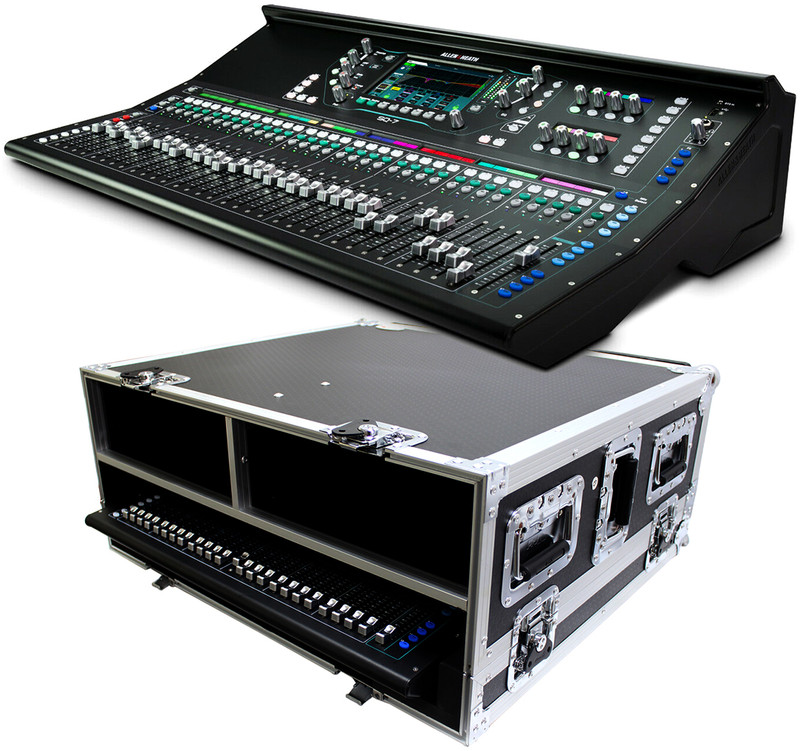

Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer Board 32+1 Motorized Faders
48 channel / 36 bus digital mixer
- SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.
Powerful Processing
- SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.
Add-On Plug-Ins Available
DEEP – Proven on countless world-tours with international artists, the DEEP Processing from our award-winning dLive digital mixing system is now available within your SQ.
- No 3rd party hardware, no added latency, no hassle – just studio-quality processing on every channel.
RackExtraFX – RackExtra FX Add-Ons expand SQ’s FX Rack with powerful new processors.
- Pick the perfect processing suite, tailored to your specific requirements.
RackExtra FX
- SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.
Expandable up to 48 mics
- SQ has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.
The Mixing Experience
- With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ’s dashboard is centred around a high-res 7” capacitive touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.
Designed for the pro
- We know that the live environment can be tough on gear – that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3-tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.
Dante, Waves, MADI and more
- SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too – add an audio networking card such as Dante, MADI or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more.
Advanced AMM
- SQ’s advanced automatic mic mixers (AMM’s) make it a natural choice for mixing conferences, panel talks and TV shows. They’re fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system. Two fully independent 24 channel AMM’s can be utilised for two zones or combined into a single 48 channel AMM for larger events.
Flexible multitrack recording
- The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music.Also provided is a built-in 32×32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIOTM compliant and comes complete with MIDI and DAW control capabilities.
SQ Apps
- There are two essential apps for SQ – SQ MixPad for engineers and SQ4You for performers.SQ MixPad app is available free on iOS, Android, Windows and macOS platforms, providing offline editing and online wired or wireless control of the main mixing functions.SQ4You is a personal mixing app to accompany SQ series mixers, allowing up to 8 performers to control their own monitor mixes from their Android or iOS devices and freeing the audio engineer to focus on the front-of-house sound.
The Ultimate IEM Mixer
- With no less than 12 stereo mixes, super-low latency, and both parametric and graphic EQ on every mix, SQ is the perfect companion for in-ear monitoring setups. SQ’s airline-friendly compactness and rugged build quality mean there’s no reason to gamble on house monitor consoles again.
ME Personal Mixing System
- SQ is fully compatible with the ME Personal Mixing System, allowing the performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer’s SLink port, or from a connected remote expander.
Features
-
96kHz FPGA processing
-
48 Input Channels
-
DEEP Processing ready
-
33 Faders / 6 Layers
-
12 Stereo mixes + LR
-
3 Stereo Matrix
-
8 Stereo FX Engines + dedicated stereo returns
-
7” capacitive touchscreen
-
SLink port for remote audio / expansion
-
64ch I/O Port for audio networking
-
32×32 USB audio interface
-
SQ-Drive direct recording to USB
-
AES output
-
Chromatic channel metering
-
Integrated LED illumination
-
Dedicated physical controls
-
16 Assignable SoftKeys
-
8 Assignable Soft Rotaries
-
Channel LCD displays
ProX XS-AHSQ7DHW Console Flight Case for Allen & Heath SQ7 with Doghouse and Wheels
-
The ProX XS-AHSQ7DHW Professional quality ATA road case is custom designed to fit the Allen & Heath SQ7 Next Generation Digital Console Mixer, and it does the job well.
-
The ProX XS-AHSQ7DHW case is constructed with a Doghouse cable storage area, rugged and durable Signature Series 3/8" Plywood, reinforced steel ball corners, and 4" rubber wheels.
-
The Doghouse area provides hidden space for cables and small accessories in the back of the unit for convenience, as well as a low front panel.
-
This ProX SQ7 Digital Media controller case is manufactured with the Honeycomb laminated surface design. Made with the super-sleek look of Honey Comb hexagon grids on all shell surfaces, which gives the cases an almost alien look!
-
Also as opposed to regular laminated plywood cases from other manufacturers, the ProX Honeycomb design helps prevent minor to mild scratches.
-
The Honeycomb Digital line design was inspired by the design of New York City Street Manhole covers which are made to handle rough and tough everyday punishment.
Features
ProX has been manufacturing flight cases since 1984 and this case is designed to protect your investment
-
Standard Style, Silver trim on Black Digital Honeycomb Exterior Design
-
ATA-300 Style Gig Ready Flight Road Case
-
Signature Series Certified Laminated Gig ready 3/8" plywood
-
*High-density foam interior support & casing
-
Recessed Spring-action recessed handles
-
Industrial Heavy duty and powerful steel ball corners
-
Four 4" Tough durable Casters rubber wheels for mobility (Two are locking)
-
Dual anchor rivets
-
Easy locking fit aluminum tongue and groove
-
Industrial Recessed butterfly twist-lock latches
-
Industrial Grade Rubber Feet
-
With Doghouse
-
*All Foam padding made from 85% recycled materials
-
ProX Limited Lifetime Warranty
*ProX Goes Green: The durable hard rubber foams used in our cases contain 70% recycled content. Of that 70%, 80% of it comes from recycled plastic bottles and the remaining 20% from recycled post-industrial material. At ProX we strive to make the world a better place! ProX has been manufacturing flight cases since 1984 and this case is designed to protect your investment.
To Fit
- Allen & Heath SQ7
Dimensions
-
35.00"L x 13.00"W x 29.50"H
-
Weight: 85.00 lbs
Shipping Dimensions
-
37.00"L x 15.00"D x 31.00"H
-
Shipping Weight: 92.00 lbs
UPC
- 019372411291
