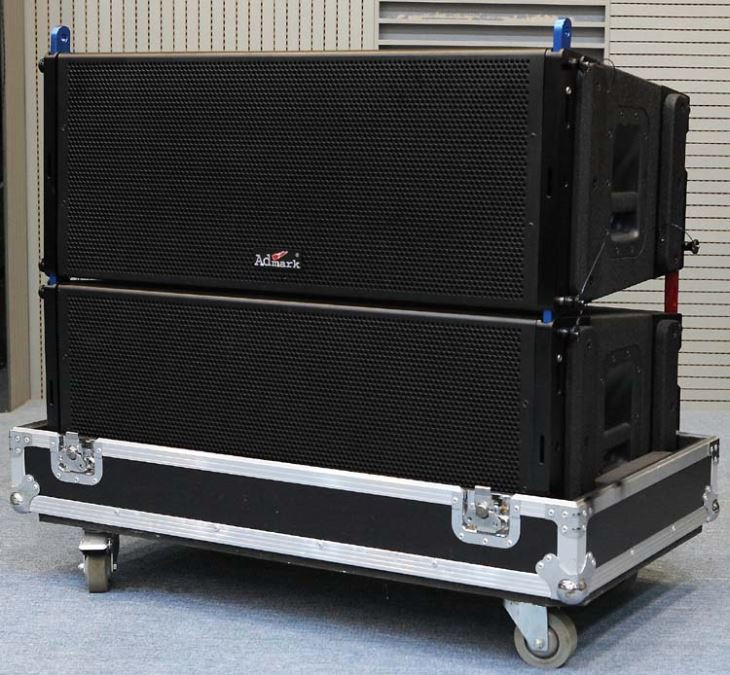

Admark AD-L6 Dual 12 Inch 3- Way Line Array Speaker Frequency 50Hz-20KHz (±3dB)
AD-L6 :3-way double 12" line-array,
- HF: 3x 1.75" Neo, 8-ohm 240W, Original Celestion Driver（CDX1-1730), neodymium
- MF: 4x 6.5" Neo, 4-ohm 600W
- LF: 2x 12",1000W
Specification
Technical parameters
- Configuration: 2*12inch LF+4*6.5inch MF +3*1.75inch HF
- Power(AES/Peak): LF: 1000W/2000W MF:600W/1200W/ HF:240W/480W
- Impedance: 4Ohm/ 4Ohm/8Ohm
- Sensitivity (1 W/m): LF:105dB/MF:104dB/HF:115dB
- Rated Maximum SPL: LF:132dB/MF:129dB/HF:133dB ( peak@1m)
- Frequency Range: 50Hz-20KHz (±3dB)
- Dispersion angle(V × H): H120°× V20°
- Color: Black
- Weight: 65Kg
- Shipping Size: 1228×535×420mm
